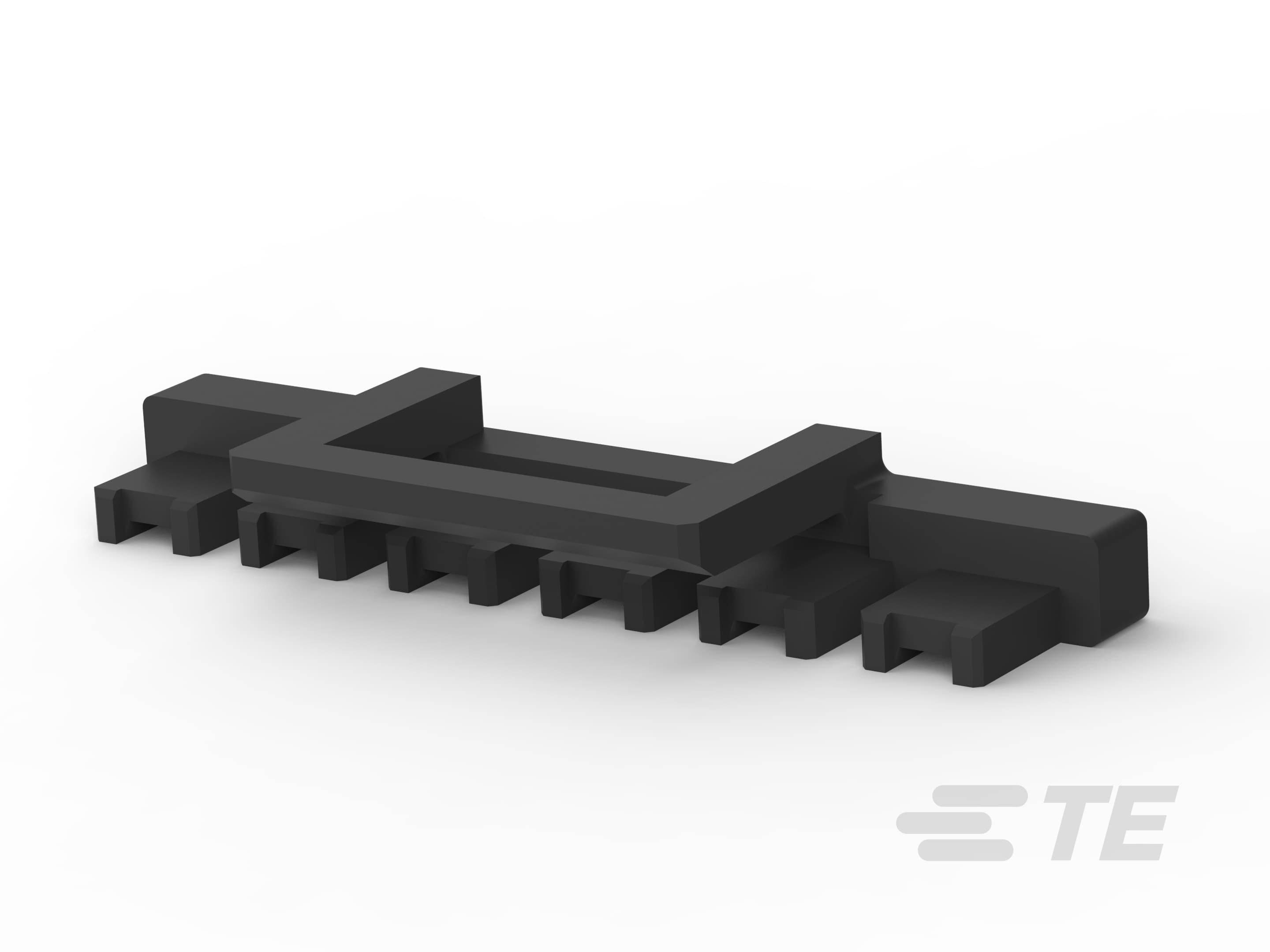

Glow Wire Sig GRACE INERTIA TPA

Glow Wire Sig GRACE INERTIA TPA-CAT-G7534A-T669
Glow Wire Signal GRACE INERTIA TPAs assist to employ an inertia locking mechanism to simultaneously complete the circuit and "lock" the connector. This provides ideal mating reliability, prevents mismatching, and eliminates the need for complicated inspection processes.
More Less

Product Features

  • Connector Hardware Accessory Type : TPA (Terminal Position Assurance)

  • Operating Temperature (Max) : 105 °C [ 221 °F ]

  • Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

  • Hardware Accessory Function : Position Assurance

  • EU RoHS Compliance : Compliant

Available from

LADD Inc
Overview

TE Connectivity's (TE) second generation GRACE INERTIA 2.5mm pitch connectors  features advanced design concepts to facilitate more stable, reliable and durable connection. GRACE INERTIA 2.5mm connectors can be used in a wide range of large electrical products, from home appliances to vending machines that require wire-toboard signal conduction application.

Product Features

  • Dual beam contact design provides good contact and durability while four varieties of keying methods and colors are available for the series. An ergonomic design allows for easy assembly.
  • GRACE INERTIA connectors are made with several unique material varieties, including Glow Wire and standard temperature materials.
  • Lanceless contacts prevent snagging or entanglement.
  • Available in wire-to-board and wire-to-wire configurations.

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Industry Standards

  • UL Flammability Rating  UL 94V-0

Product Type Features

  • Connector Hardware Accessory Type  TPA (Terminal Position Assurance)

  • Hardware Accessory Function  Position Assurance

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-G7534A-T669
