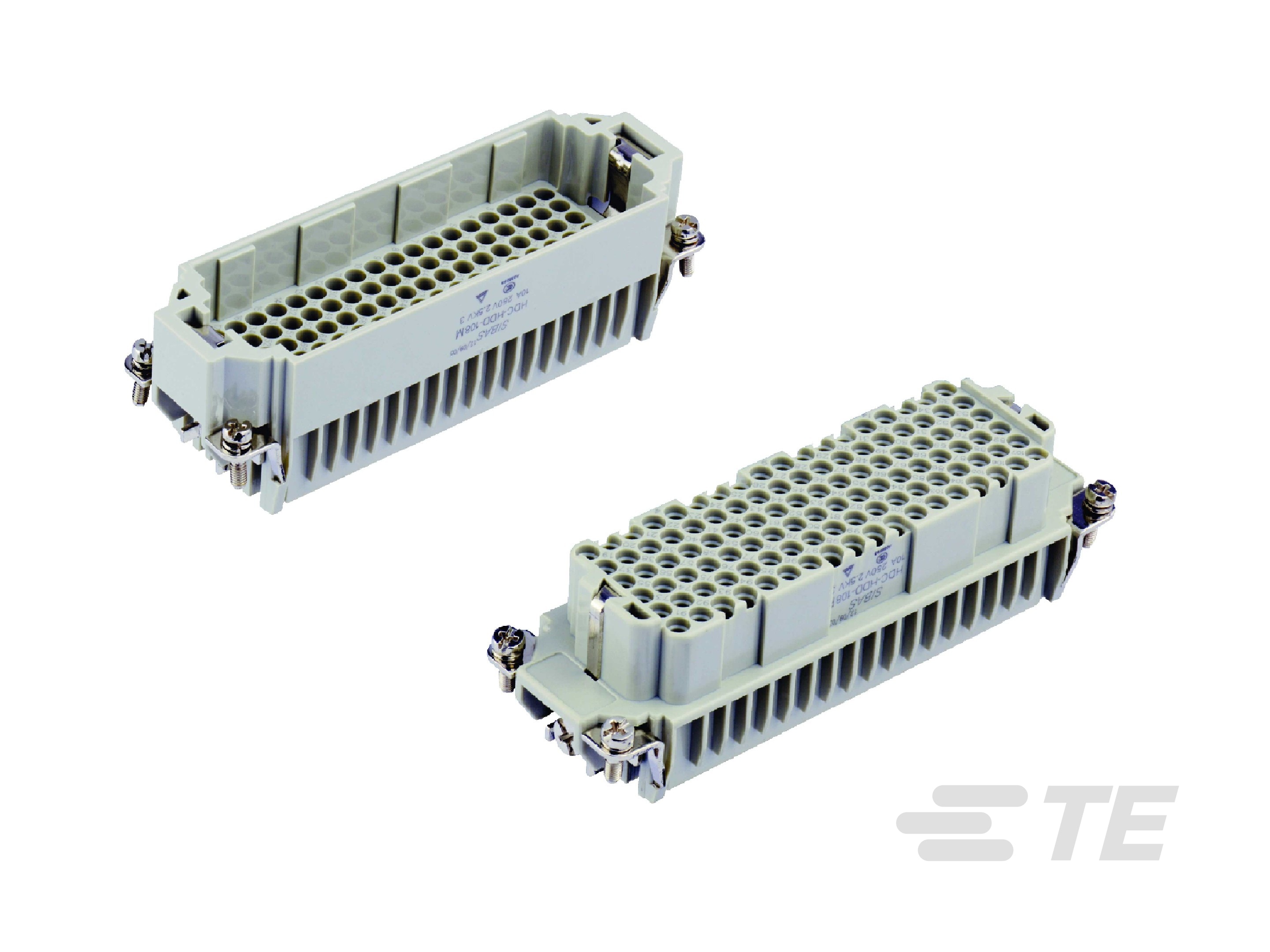

HDC HD HDD Insert Series, Rail Compliant

HDC HD HDD Insert Series, Rail Compliant-CAT-H3399-IN722B
  • HDC
|
  • HDC HD
Our HDC inserts comply with the EN45545 European standard on flame retardancy for materials and products in railway rolling stock. it meets R22 and R23 requirement set on level HL3. The modular inserts enable signal, data and power to be transmitted via one single connector with a high level of flexibility when configuring railway connector systems.
More Less

Product Features

  • Rectangular Connector Insert Type : Insert for Contacts

  • Contact Type : Socket, Pin

  • Pole Configuration : 108

  • Termination Method to Wire & Cable : Crimp Terminal

  • Number of Positions : 108

Available from

LADD Inc
Overview

TE Connectivity ‘s new range of inserts for heavy duty connectors comply with the EN45545 European standard on flame retardancy for materials and products in railway rolling stock. The new inserts from TE meet R22 and R23 requirement set on level HL3. They have an operating temperature range that extends from -40 to 125 degrees Celsius. The modular inserts provide customers with a high level of flexibility when configuring railway connector systems. They can be configured to hold anywhere from 1 to 216 pins and enable signal, data and power to be transmitted via one single connector.

10A

Current Rating (A)

250V

Power Circuit Voltage (V)

-40°C

Minimum operating temperature

SPECIFICATIONS

  1. EN45545: Fire protection on railway vehicles -Railway applications
  2.  EN61984: Connectors - safety requirements and tests
  3. EN 50467: Electrical connectors - requirements and test - Railway
    applications
  4. IEC 60512: Connectors for electronic equipment -Test and
    measurements
  5. IEC 60664-1: Insulation coordination for equipment within lowvoltage
    systems (Part 1)
  6. EN 61373: Rolling stock equipment - shock and vibration test -
    Railway applications: Fire protection on railway vehicles -Railway applications

APPLICATIONS

Rolling stock:
1. Traction converters
2. Power distribution
3. Inter-car jumpers

BENEFITS

  1. Compliance with safety regulations
  2. Reliable electrical connection
  3. High flexibility and possibility of creating a customized interface
  4. Time-saving with easy assembly of the modular inserts
  5. Decrease installation cost with system modularity design
Datasheet
EN45545 COMPLIANT HDC INSERTS
Datasheet
HDC IP68 Anti-corrosion Hoods & Housing

HX-SCE LOW FIRE HAZARD SLEEVES

Thin walled, zero-halogen, low smoke/toxicity, radiation cross-linked, polyolefin heat-shrinkable tubing when limited fire hazard characteristics are necessary.

Product Group

Heavy Duty Connectors for Rail Industry Application Overview

Heavy Duty Connectors for use in harsh environments covering protection degrees up to IP69k, current rating 10 A to 2500 A and up to 216 contacts.

Check out our other HDC Inserts Models

HDC HMN - RAIL COMPLIANT MODULAR SYSTEM

HDC HEE RAIL COMPLIANT INSERT SERIES

HDC HEEE RAIL COMPLIANT INSERT SERIES
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Box

  • Packaging Quantity  5

Body Features

  • Primary Product Color  Gray

Electrical Characteristics

  • Power Circuit Voltage (V) 250

Product Type Features

  • Connector & Contact Terminates To  Wire & Cable

  • Rectangular Connector Insert Type  Insert for Contacts

Contact Features

  • Contact Type  Socket, Pin

  • Pole Configuration  108

  • Contact Current Rating (Max) (A) 10

Termination Features

  • Termination Method to Wire & Cable  Crimp Terminal

Configuration Features

  • Number of Positions  108

Dimensions

  • Wire Size (AWG) 26 – 14

Operation/Application

  • Circuit Application  Power & Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-H3399-IN722B
