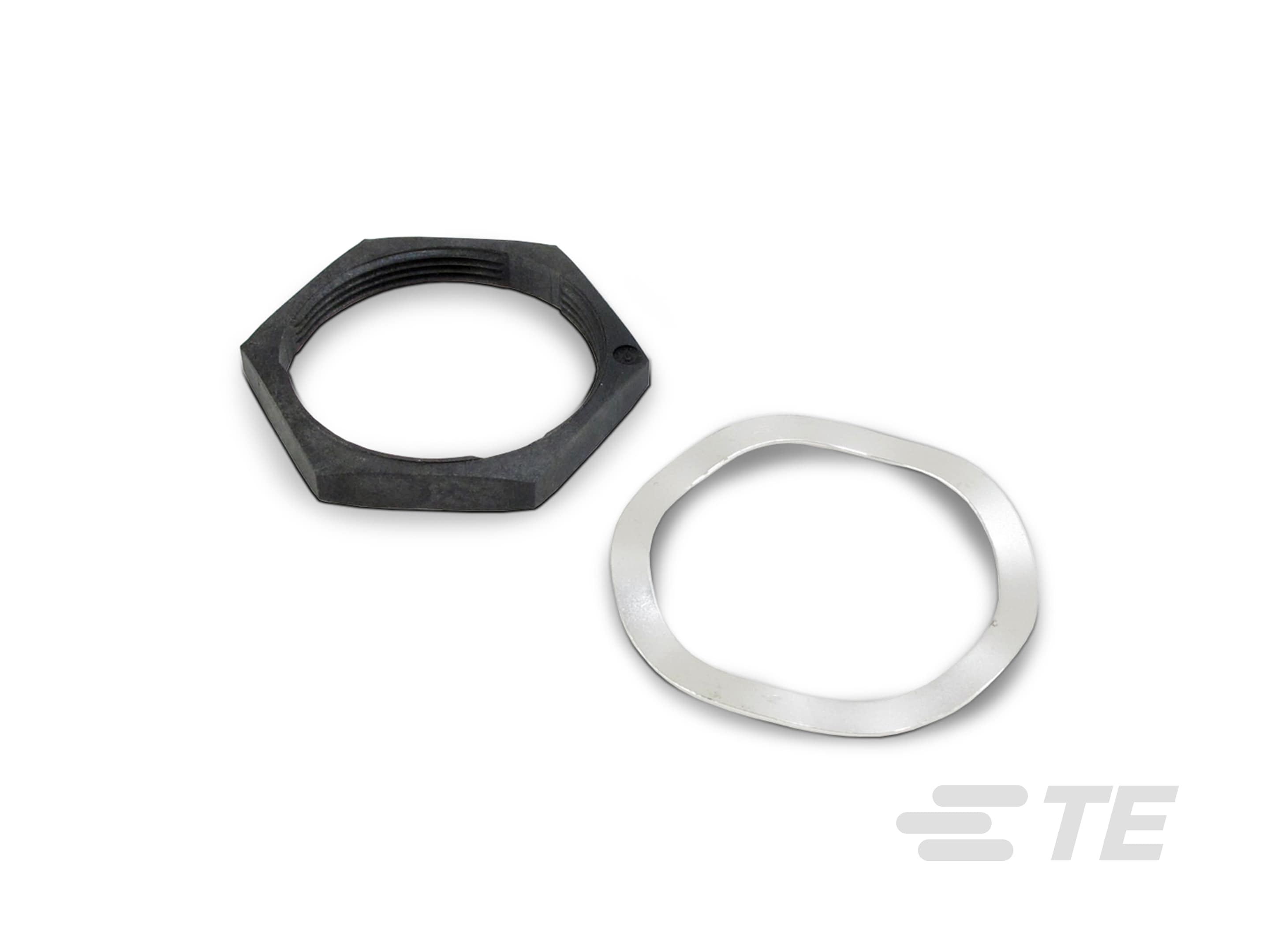

Lockwashers and Panel Nuts for Deutsch HDP20
- DEUTSCH
- DEUTSCH HDP ,
- DEUTSCH HD
Lockwashers and panel nuts aid in mounting DEUTSCH HDP20 connectors. The lockwashers are used to add tension between the threads and the panel nuts to provide a secure mount. The lockwasher and the panel nut should be used together. The lockwashers and panel nuts are available in 18 and 24 shell sizes.
Product Features
-
Automotive Connector Accessory Type : Nut, Lockwasher
-
Primary Product Material : Steel, PA GF
-
Primary Product Color : Black
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
EU RoHS Compliance : Compliant
Overview
DEUTSCH HDP20 lockwashers and panel nuts should be used together.
VIEW ALL DEUTSCH HDP20 PRODUCTS
-
VIEW ALL DEUTSCH HDP20 PRODUCTS
DEUTSCH HDP20 connectors are heavy-duty, environmentally sealed, composite shell, multi-pin connectors.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable Yes
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Packaging Features
-
Packaging Method Box
Usage Conditions
-
Compatible With Connector Style Receptacle
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Industry Standards
-
UL Flammability Rating Not tested
Configuration Features
-
Number of Positions 47, 29, 16, 19, 31, 18, 14, 9, 21, 7, 6, 23, 33, 8, 20, 35
Product Type Features
-
Automotive Connector Accessory Type Nut, Lockwasher
Body Features
-
Primary Product Material Steel, PA GF
-
Primary Product Color Black
Reference Number
-
TE Internal Number CAT-H396-M8649
