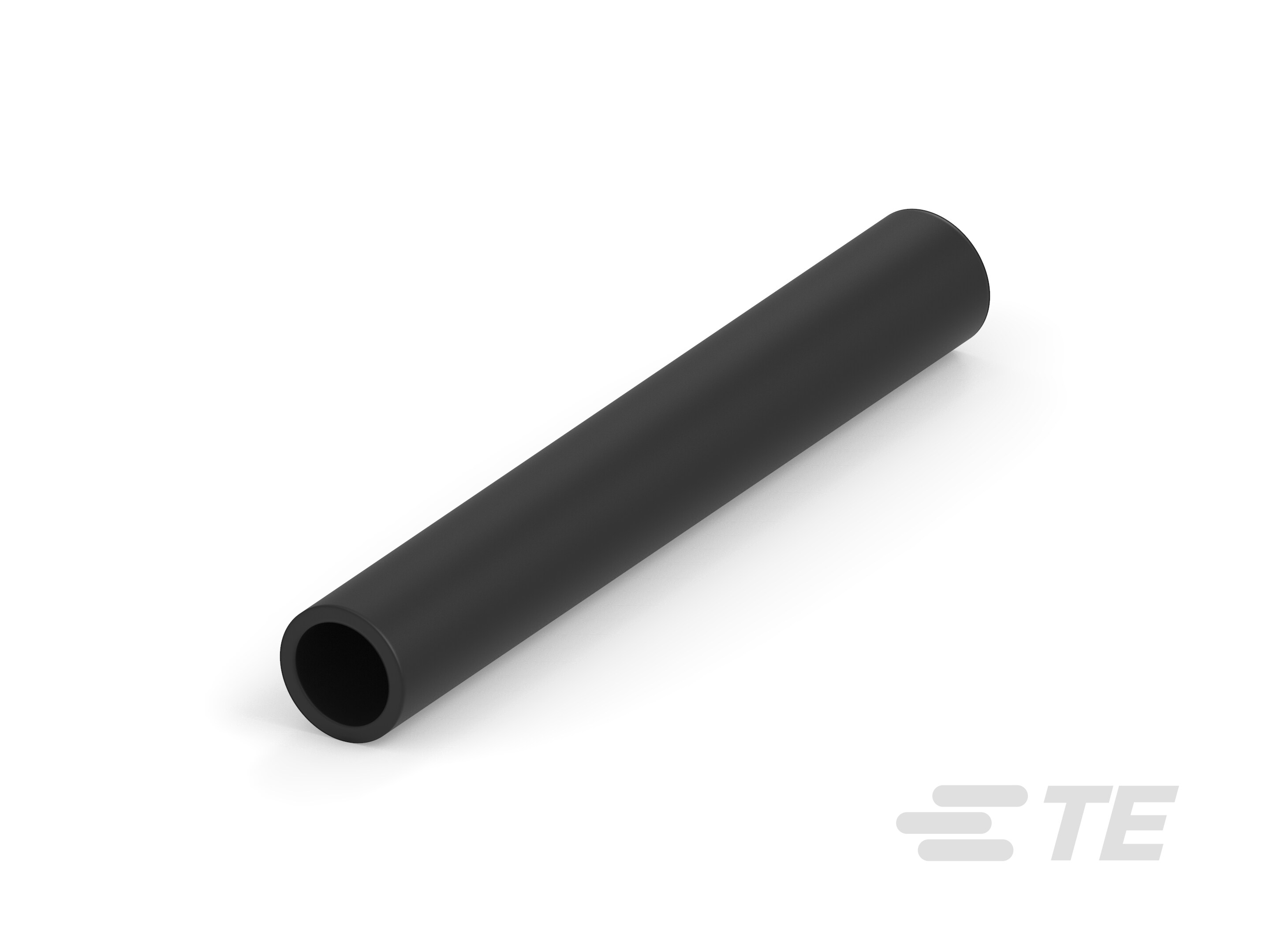

BSTS/BSTS-FR Heat Shrink Tubing

RAYCHEM

RAYCHEM BSTS

BSTS/BSTS-FR heat-shrink tubing with thick-wall insulation, abrasion protection, non-adhesive and flame retardant. Rugged polymer that resists moisture, fungus, and weathering with expansion ratios as high as 3:1. Operating temperature between -55°C to 110°C.

More Less

Product Features

Primary Product Color : Clear, White, Red, Black
Shrink Ratio : 3:1
Wall Type : Single Wall
Recovered Inside Diameter (Max) (mm): 5.6, 12.7, 2.54, 5.59, 31.75, 19.05, 44.45, 9.52, 3.81, 22.86
Recovered Inside Diameter (Max) (in): .15, .499, .75, .5, .375, .1, .9, .22, 1.25, 1.75
Primary Product Material : Irradiated Modified Polyolefin, Polymer

Available from

Product	TE Part #	Documents	Primary Product Color	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Primary Product Material	Tubing Flammability Type	Packaging Method	Tubing Size Range	Mechanical Resistance
BSTS-13X25/CL	CB5033-000	Product Drawing	Clear	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 33.02 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-17X4 Buy on te.com	CB5052-000	Product Drawing	Black	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 43.18 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07-2.5IN/FR/NM	CJ5163-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11X25	CB5023-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X4-CL	CB5027-000	Product Drawing	Clear	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-30X25FR	CJ6873-000	Product Drawing	Black	76.2 mm	31.75 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	31.75 – 76.2 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-15X25	CB5041-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-20X25	CB5059-000	Product Drawing	Black	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	19.05 – 50.8 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-30X4FR	CF6054-000	Product Drawing	Black	76.2 mm	31.75 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07-0-1.75IN/NM/FR	CN2233-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-30X25/CL	CV6821-000	Product Drawing	Clear	76.2 mm	31.75 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07X4CL	CB5017-000	Product Drawing	Clear	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X25-CL/NM	CB5025-000	Product Drawing	Clear	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-20X4	CB5060-000	Product Drawing	Black	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	19.05 – 50.8 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-15X4-CL	CB5044-000	Product Drawing	Clear	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11X25FR	CM3869-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07X25	CB5012-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11X4	CB5026-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X25	CB5032-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 33.02 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-03X25	CJ5694-000	Product Drawing	Black	7.62 mm	2.54 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	2.54 – 7.62 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-35X25/FR/NM	CZ3940-000	Product Drawing	Black	88.9 mm	31.75 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	31.75 – 88.9 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-07X4FR	CB5018-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X4/NM	CB5038-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	9.52 – 33.02 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-27X4FR	CB5066-000	Product Drawing	Black	65.58 mm	22.86 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	22.86 – 65.58 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-03X4FR	CF6052-000	Product Drawing	Black	7.62 mm	2.54 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-17X25FR/RED/NM	CL9351-000	Product Drawing	Red	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-15-0-3IN/NM/FR	CF8126-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-04X4/NM	CL3006-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-03X4	CB5001-000	Product Drawing	Black	7.62 mm	2.54 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	2.54 – 7.62 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-04X4	CB5004-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	3.81 – 10.16 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-15X4	CB5043-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-30X4NM	CB5069-000	Product Drawing	Black	76.2 mm	31.75 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	31.75 – 76.2 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-30X25	CB5067-000	Product Drawing	Black	76.2 mm	31.75 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	31.75 – 76.2 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X4FR	CF6053-000	Product Drawing	Black	33.02 mm, 33.3 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11-CL-7.25IN	CZ6522-000	Product Drawing	Clear	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07X4	CB5015-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-45X25/FR/NM	CZ3941-000	Product Drawing	Black	114.3 mm	44.45 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	44.45 – 114.3 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-27X4	CB5065-000	Product Drawing	Black	65.58 mm	22.86 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	22.86 – 65.58 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-45X4FR	CF6051-000	Product Drawing	Black	114.3 mm	44.45 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X25/NM	CB5034-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 33.02 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X4	CB5036-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 33.02 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11X25/NM	CJ1417-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X6IN	CJ5220-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-17X25FR/WHT/NM	CL9352-000	Product Drawing	White	43.18 mm	12.7 mm	Polymer, Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X4FR/NM	CX1369-000	Product Drawing	Black	33.02 mm, 33.3 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-20X4-CL/NM	CU3939-000	Product Drawing	Clear	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-15-CL-7.25IN	CZ4092-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-15X4FR	CB5045-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-15X25-CL	CB5042-000	Product Drawing	Clear	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 38.1 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-35X4FR	CB5070-000	Product Drawing	Black	88.9 mm	31.75 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	31.75 – 88.9 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X25/FR/NM	CL3005-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X25/CL/NM	CL4192-000	Product Drawing	Clear	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-11X4FR/WHT	EG4273-000	Product Drawing	White	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-07X25FR	CB5014-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-20X25FR	CP1444-000	Product Drawing	Black	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-04X25FR	CB5003-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	3.81 – 10.16 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-17X25	CB5051-000	Product Drawing	Black	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 43.18 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X25FR	CN0029-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-45X4	CB5072-000	Product Drawing	Black	114.3 mm	44.45 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	44.45 – 114.3 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-20X25/NM	CP3862-000	Product Drawing	Black	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-17X4/CL	CB5053-000	Product Drawing	Clear	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	12.7 – 43.18 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-17X25FR/NM	CL9350-000	Product Drawing	Black	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-27X25FR	CB5064-000	Product Drawing	Black	65.58 mm	22.86 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	22.86 – 65.58 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X25/CL	CB5024-000	Product Drawing	Clear	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	9.52 – 27.94 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-20X4FR	CB5062-000	Product Drawing	Black	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	19.05 – 50.8 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11X4FR/NM	CU9212-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-04X25/FR/NM	CZ3939-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	3.81 – 10.16 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-07X25/NM	CL5849-000	Product Drawing	Black	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-07X100FR	CX1370-000	Product Drawing	Black	19.05 mm	5.59 mm, 5.6 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Abrasion
BSTS-03X25FR	CB5000-000	Product Drawing	Black	7.62 mm	2.54 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	2.54 – 7.62 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-04X25	CB5002-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	3.81 – 10.16 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-07X25/CL	CB5013-000	Product Drawing	Clear	19.05 mm	5.59 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	5.59 – 19.05 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-20X4-CL	CB5061-000	Product Drawing	Clear	50.8 mm	19.05 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	19.05 – 50.8 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-27X25	CB5063-000	Product Drawing	Black	65.58 mm	22.86 mm	Irradiated Modified Polyolefin	Non-Flame-Retardant	Box	22.86 – 65.58 mm	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-11-0-2.5IN/NM/FR	CJ0189-000	Product Drawing	Black	27.94 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Strain Relief, Fluids, Abrasion
BSTS-15X25FR	CJ3141-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-04X4FR	CB5005-000	Product Drawing	Black	10.16 mm	3.81 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	3.81 – 10.16 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-17X25FR	CN5758-000	Product Drawing	Black	43.18 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-13X25FR/NM	CB5035-000	Product Drawing	Black	33.02 mm	9.52 mm	Irradiated Modified Polyolefin	Flame-Retardant	Box	9.52 – 33.02 mm	Mechanical Damage, Fluids, Strain Relief, Abrasion
BSTS-15X4FR/NM	CS8624-000	Product Drawing	Black	38.1 mm	12.7 mm	Irradiated Modified Polyolefin	Flame-Retardant	Piece	-	Mechanical Damage, Fluids, Strain Relief, Abrasion

Features

Please review product documents or contact us for the latest agency approval information.

Dimensions

Product Length (in) 48
Product Length 1220 mm [ 48 in ]
Recovered Wall Thickness (Nominal) (mm) 3.05, 3.56
Recovered Wall Thickness (Tolerance) (mm) 3.94, 2.41, 3.05, 3.04, 3.56, 1.78
Recovered Wall Thickness (Tolerance) (in) .07, .095, .16, .14, .12
Recovered Wall Thickness (Nominal) (mm) 3.05, 3.56
Recovered Wall Thickness (Nominal) (in) .12, .14
Recovered Inside Diameter (Max) (mm) 5.6, 12.7, 2.54, 5.59, 31.75, 19.05, 44.45, 9.52, 3.81, 22.86
Recovered Inside Diameter (Max) (in) .15, .499, .75, .5, .375, .1, .9, .22, 1.25, 1.75
Expanded Inside Diameter (Min) (mm) 7.62, 50.8, 114.3, 19.05, 33.02, 88.9, 10.16, 33.3, 27.94, 65.58, 76.2, 38.1, 43.18
Expanded Inside Diameter (Min) (in) 1.3, .75, 1.31, 3, .3, 2.7, 1.5, 1.7, 4.5, .4, 3.5, 1.1, 2
Tubing Size Range (mm) 3.81 – 10.16, 44.45 – 114.3, 12.7 – 38.1, 5.59 – 19.05, 2.54 – 7.62, 9.52 – 27.94, 12.7 – 43.18, 9.52 – 33.02, 22.86 – 65.58, 31.75 – 76.2, 19.05 – 50.8, 31.75 – 88.9
Tubing Size Range (in) .5 – 1.7, .75 – 2, 1.25 – 3, .15 – .4, .22 – .75, .9 – 2.7, .375 – 1.1, .5 – 1.5, .375 – 1.3, .1 – .3, 1.75 – 4.5, 1.25 – 3.5

Product Type Features

Tubing Product Type Heat Shrink Tubing
Wall Type Single Wall

Usage Conditions

Resistance Properties Moisture
Shrink Temperature (Min) (°C) 90
Tubing Flammability Type Non-Flame-Retardant, Flame-Retardant
Operating Temperature Range (°C) -55 – 110
Recovery Temperature (°C) 121

Body Features

Fluid Type Water, Brake Fluid
Primary Product Color Clear, White, Red, Black
Shrink Ratio 3:1
Primary Product Material Irradiated Modified Polyolefin, Polymer
Flexibility Semi-Rigid

Electrical Characteristics

Operating Voltage (Max) (kV) .6

Packaging Features

Packaging Method Box, Piece

Operation/Application

Mechanical Resistance Mechanical Damage, Fluids, Abrasion, Strain Relief

Product Availability

Applicable Region Global

Other

Meets Low Outgassing Requirements No
Product Source Czech Republic
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-HST-BSTS
