Mini I/O Field Installable Type 1

Mini I/O Field Installable Type 1-CAT-IN291-M6641M

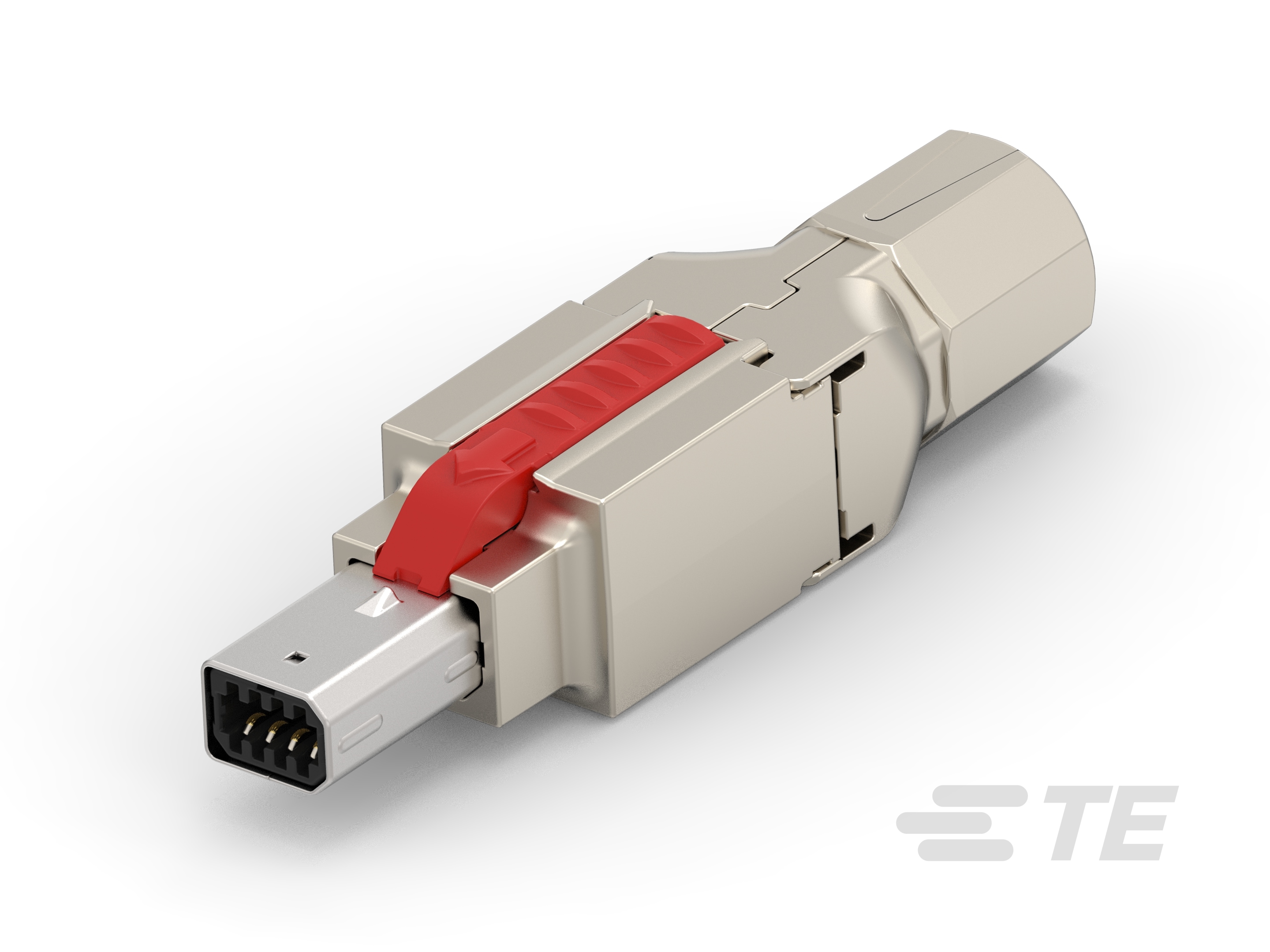

Industrial Mini I/O Field Installable Type 1 toolless installation
More Less

Product Features

  • Modular Jacks & Plugs Products : Industrial Mini I/O

  • Connector Contact Density : High

  • Modular Connector Style : Plug

  • Shielded : Yes

  • Performance Category : Cat 5e

Available from

LADD Inc
Overview

Industrial Mini I/O Field Installable Type1 toolless installation

Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Port Matrix Configuration  1 x 1

  • Number of Positions  8

  • Connector Contact Density  High

  • Number of Loaded Positions  4

Operation/Application

  • Circuit Application  Power & Signal

  • Shielded  Yes

Packaging Features

  • Packaging Quantity  1, 60

  • Packaging Method  Carton

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  PA 4T GF30

Mechanical Attachment

  • Mating Alignment Type  Keyed

  • Mating Alignment  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Body Features

  • Shield Material  Stainless Steel

Product Type Features

  • Modular Jacks & Plugs Products  Industrial Mini I/O

  • Modular Connector Style  Plug

  • Connector System  Cable-to-Cable, Cable-to-Board

  • Connector & Contact Terminates To  Wire & Cable

Contact Features

  • Contact Current Rating (Max) (A) .5

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Industry Standards

  • Performance Category  Cat 5e

Other

  • Field Serviceable  Yes

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-IN291-M6641M
