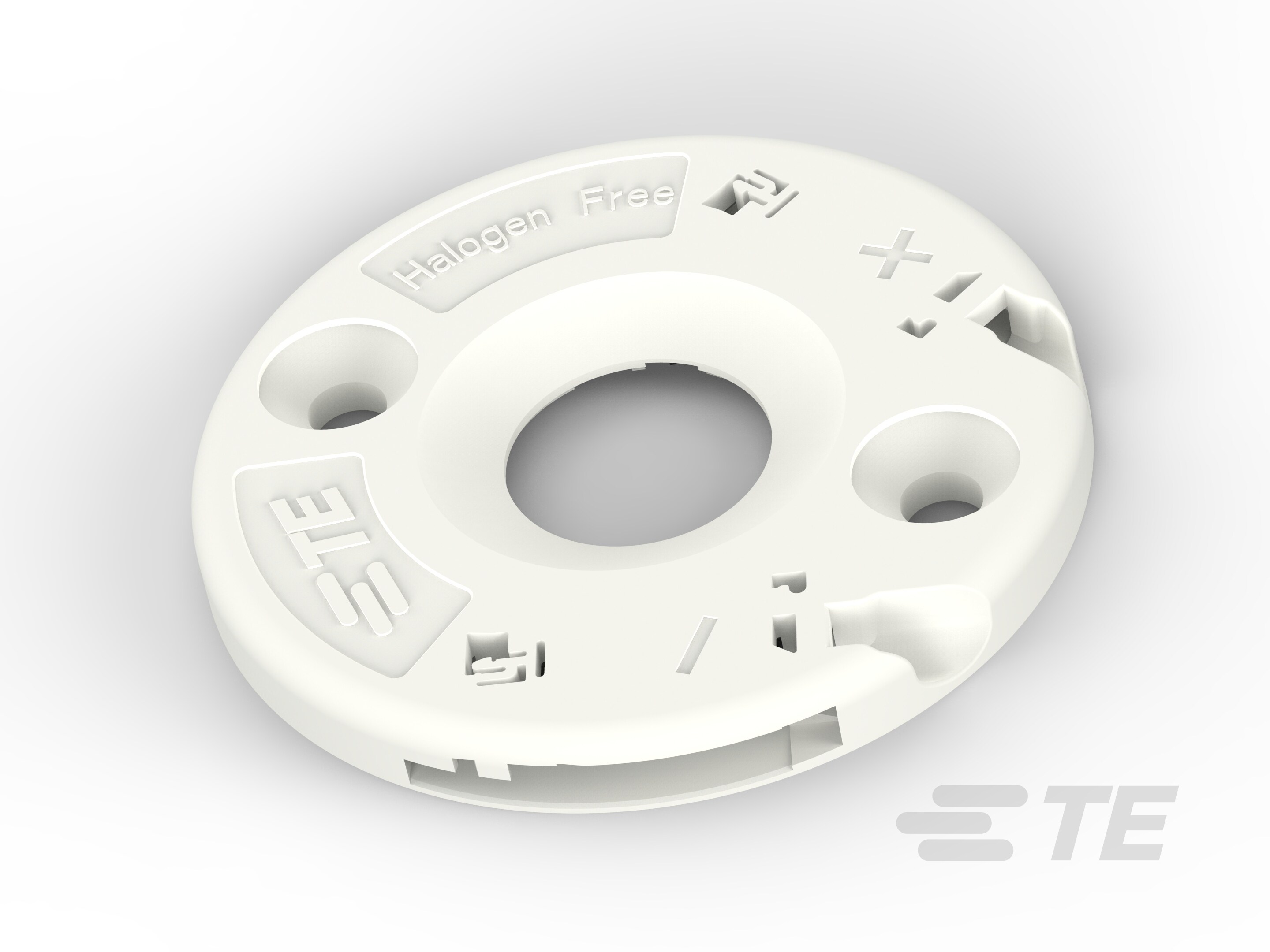

Mini LED Holders Z35

Mini LED Holders Z35-CAT-L97-L4981C
  • LUMAWISE
|
  • LUMAWISE LED Holders
LUMAWISE Mini LED Holder Type Z35 offers higher level of integration via a solderless connection to LEDs using standard screws. Enables quick and easy LED assembly through tape-in LED retention.
More Less

Product Features

  • Operating Voltage(VDC): 60

  • Termination Method to Wire & Cable: Poke-In

  • Number of Positions: 2

  • Contact Current Rating (Max)(A): 3

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board, Wire-to-Component

  • Connector & Contact Terminates To  Printed Circuit Board, Wire & Cable

  • COB Substrate Thickness (mm) 1

  • LED Holders Product Type  LED Holder

Configuration Features

  • Lighting Connector Features Included  No Driver on Board, No Thermal Protection, Not Dimmable, Not Optic Compatible, Not Programmable, Optic Compatible, Zhaga Inspired

  • Number of Positions  2

Electrical Characteristics

  • Operating Voltage (VDC) 60

  • Current Rating (Max) (A) 3

Body Features

  • Compatible LED  Bridgelux H6, Bridgelux V10C Gen 7 Array, Citizen CLL020, Citizen CLL022, Citizen CLU 024, Citizen CLU 025, Citizen CLU 026, Citizen CLU 027, Citizen CLU700, Citizen CLU710, Citizen CLU710-1204C1, Citizen CLU711-1204C1, Citizen CLU720, Citizen CLU721-1206C1, Cree CMT 1407, Cree CMT 1412, Cree CMT 1420, Edison Opto 2PHM09x, Everlight EAHP1215 Series, Everlight JU1215, Lumileds L2C5-XXXX1202E0900, Lumileds L2C5-XXXX1203E0900, Lumileds LUXEON CoB 105, Lumileds LUXEON CoB 107, Lumileds LUXEON CoB 109, Luminus CHM-11-XH00, Luminus CHM-9-XH00, Luminus CHM-9-XH20/XH30, Luminus CLM-14 GEN 3, Luminus CLM-14 GEN4, Luminus CXM-11-AC00, Luminus CXM-4 GEN4, Luminus CXM-6 GEN 3/GEN 4, Luminus CXM-9 GEN 3/GEN 4, Nichia NFCLL060B-V1, Nichia NFCWL036B-V1M3, Nichia NFCWL060B-V1, Nichia NVCWL024Z, Nichia S-Series, Panasonic C14 (13.5 x 13.5), Panasonic C15 (13.5 x 13.5), Samsung LC003D, Samsung LC006D, Samsung LC009D, Samsung LC010C, Samsung LC013D, Samsung LC040C, Seoul SAWS0661A, Seoul SAWS1063A, Seoul SDW 13.5*13.5 Series, Seoul SDW81F1DY_ZC4, Sharp Mini Zenigata, Tridonic SLE-G5-LES11, Tridonic SLE-G5-LES6, Tridonic SLE-G6-LES 10, Tridonic SLE-G7-LES9

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold

  • Contact Current Rating (Max) (A) 3

Termination Features

  • Termination Method to Wire & Cable  Poke-In

Mechanical Attachment

  • Connector Mounting Type  Board Mount

Housing Features

  • Housing Material  PBT GF

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105

  • Operating Temperature Range (°F) -40 – 105, -40 – 221

Operation/Application

  • Circuit Application  Power

Reference Number

  • TE Internal Number CAT-L97-L4981C
