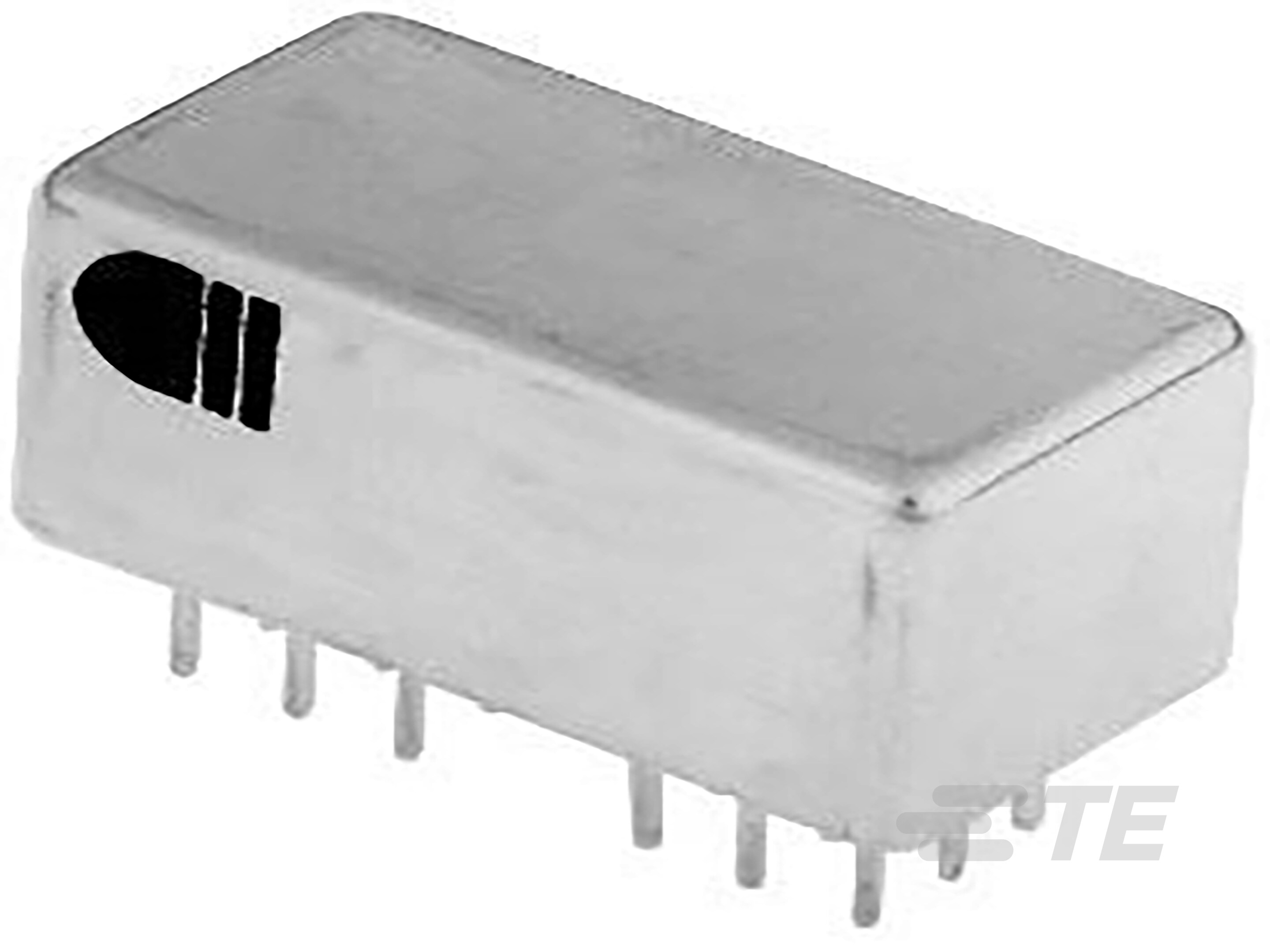

DPDT LS Latching Relay: Magnetic-Latched, Half-Size Relay

DPDT LS Latching Relay: Magnetic-Latched, Half-Size Relay-CAT-LS-DPDT-HSR
TE's LS Series DPDT relays are magnetic-latched, polarized relays with switching up to 2 A and special shock designs up to 700 G,1 ms.
More Less

Product Features

  • Operating Temperature Range (°C): -65 – 125

  • Contact Switching Voltage (Max) (VDC): 28

  • Coil Magnetic System : Polarized, Bistable, Latching

  • Main Termination & Connection Type : Solder Pins, Solder Hook Terminals

  • Environmental Ambient Temperature (Max) : 125 °C [ 257 °F ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Relay & Contactor Type  General Purpose Signal Relay

Configuration Features

  • Contact Arrangement  2 Form C DPDT-CO

Electrical Characteristics

  • Contact Switching Voltage (Max) (VDC) 28

  • Coil Resistance (Ω) 45, 254, 1000, 3800

  • Coil Voltage Rating (VDC) 5, 12, 26.5, 48

  • Coil Power Rating DC (W) .556, .567, .606, .702

  • Contact Current Rating (A) 2

Body Features

  • Enclosure Type  Hermetically Sealed

Termination Features

  • Main Termination & Connection Type  Solder Pins, Solder Hook Terminals

  • Coil Termination & Connection Type  Solder Pins, Solder Hook Terminals

Mechanical Attachment

  • Product Mount Type  Printed Circuit Board, Chassis, Panel, Panel & Printed Circuit Board

Usage Conditions

  • Operating Temperature Range (°C) -65 – 125

  • Environmental Ambient Temperature (Max)  125 °C [ 257 °F ]

Operation/Application

  • Coil Magnetic System  Polarized, Bistable, Latching

  • Shock Resistance  100G's, 6ms

  • Vibration Resistance  20G's, 10 – 2500Hz, 20G's, 10 – 2000Hz, 30G's, 10 – 2500Hz

  • Current Type  DC

Reference Number

  • TE Internal Number CAT-LS-DPDT-HSR
