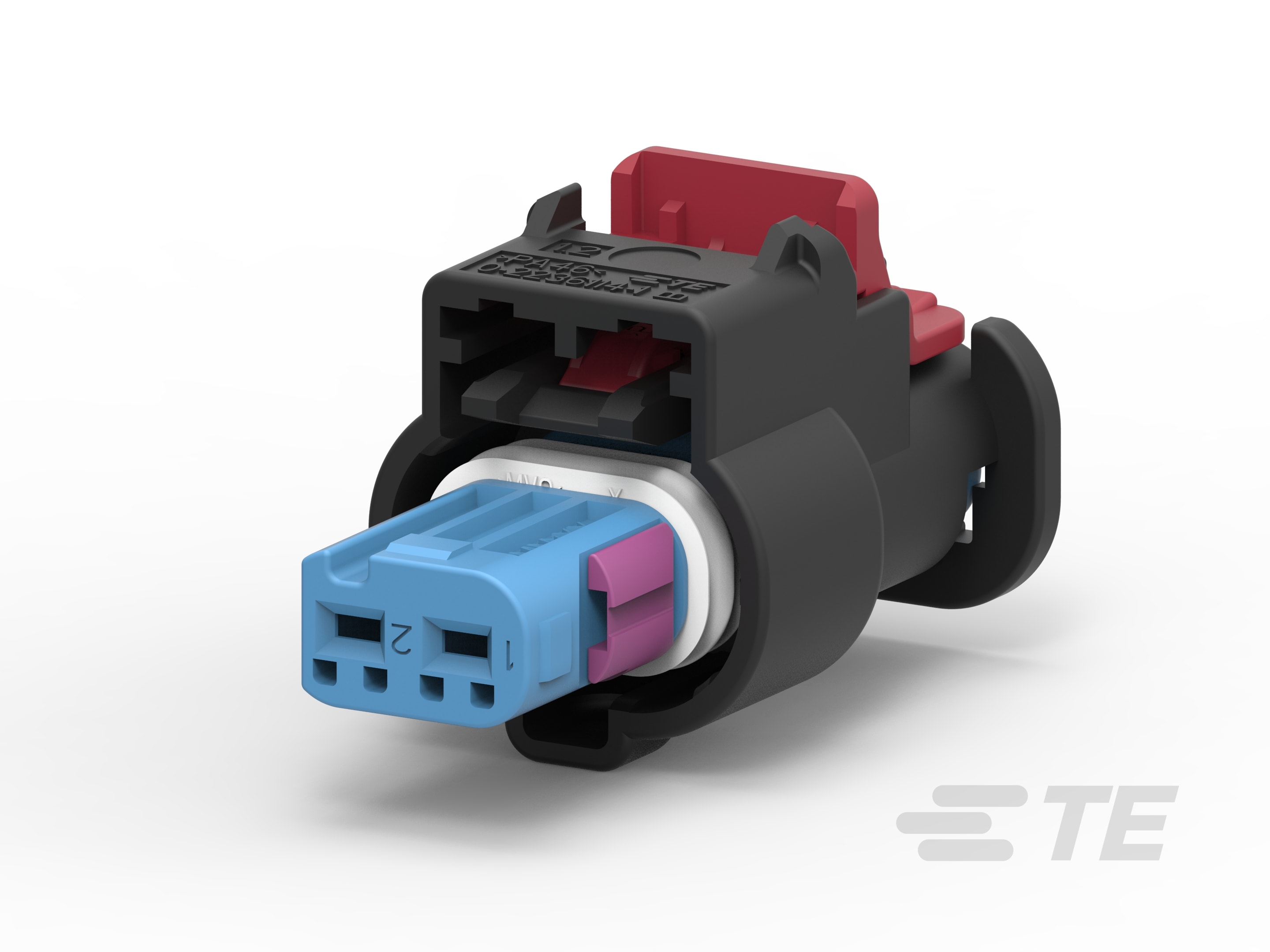

HPF 1.2, CONNECTOR HOUSING

HPF 1.2mm

Product Features

Packaging Method : Bag
Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]
Primary Product Color : Black, Brown, Blue, Light Blue
IP Rating : IPX9K
Strain Relief : Without

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Centerline (Pitch)	Mating Tab Width	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Operating Temperature (Max)	Nominal Voltage Architecture	Primary Locking Feature	Connector & Keying Code
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297807-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	3	4 mm	1.2 mm	Brown	-	-	Signal	90 °C, 70 °C, 100 °C, 80 °C, 75 °C, 125 °C, 120 °C, 110 °C, 85 °C, 105 °C, 150 °C, 145 °C, 130 °C, 140 °C	12 V	On the Terminal	B
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297810-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Black	-	-	Signal	75 °C, 80 °C, 90 °C, 130 °C, 145 °C, 70 °C, 150 °C, 105 °C, 140 °C, 85 °C, 100 °C, 110 °C, 120 °C, 125 °C	12 V	On the Terminal	A
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297796-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	2	4 mm	1.2 mm	Black	-	-	Signal	70 °C, 125 °C, 85 °C, 80 °C, 140 °C, 105 °C, 130 °C, 145 °C, 150 °C, 90 °C, 100 °C, 110 °C, 120 °C, 75 °C	12 V	On the Terminal	A
5POS,HPF 1.2,REC HSG ASSY,SLD	5-2307335-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	5	4 mm	1.2 mm	Black	-	-	Signal	150 °C	12 V	Locking Lance	A
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297794-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Brown	-	-	Signal	80 °C, 90 °C, 130 °C, 75 °C, 150 °C, 140 °C, 105 °C, 125 °C, 120 °C, 145 °C, 85 °C, 100 °C, 70 °C, 110 °C	12 V	On the Terminal	B
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297795-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	2	4 mm	1.2 mm	Light Blue	Wire & Cable	15 A	Power	150 °C	12 V, 48 V	On the Terminal	C
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297810-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Blue	-	-	Signal	130 °C, 145 °C, 150 °C, 100 °C, 70 °C, 105 °C, 140 °C, 85 °C, 110 °C, 120 °C, 125 °C, 75 °C, 80 °C, 90 °C	12 V	On the Terminal	C
5POS,HPF 1.2,REC HSG ASSY,SLD	5-2307334-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	5	4 mm	1.2 mm	Black	Wire & Cable	15 A	Power	150 °C	24 V, 12 V	On the Terminal	A
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297794-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Blue	-	-	Signal	125 °C, 70 °C, 85 °C, 100 °C, 110 °C, 120 °C, 105 °C, 140 °C, 80 °C, 90 °C, 130 °C, 145 °C, 150 °C, 75 °C	12 V	On the Terminal	C
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297795-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Brown	Wire & Cable	15 A	Power	150 °C	48 V, 12 V	On the Terminal	B
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297807-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	3	4 mm	1.2 mm	Black	-	-	Signal	125 °C, 105 °C, 70 °C, 120 °C, 110 °C, 100 °C, 85 °C, 140 °C, 80 °C, 90 °C, 130 °C, 145 °C, 150 °C, 75 °C	12 V	On the Terminal	A
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297796-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Brown	-	-	Signal	100 °C, 70 °C, 110 °C, 140 °C, 105 °C, 125 °C, 130 °C, 145 °C, 150 °C, 85 °C, 80 °C, 90 °C, 120 °C, 75 °C	12 V	On the Terminal	B
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297790-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board	2	4 mm	1.2 mm	Black	Wire & Cable	15 A	Power	150 °C	12 V	On the Terminal	A
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297794-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Black	-	-	Signal	100 °C, 70 °C, 120 °C, 80 °C, 140 °C, 105 °C, 130 °C, 145 °C, 150 °C, 75 °C, 125 °C, 90 °C, 85 °C, 110 °C	12 V	On the Terminal	A
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297810-2	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	3	4 mm	1.2 mm	Brown	-	-	Signal	150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 75 °C, 125 °C, 120 °C, 110 °C, 100 °C, 85 °C, 140 °C, 105 °C, 70 °C	12 V	On the Terminal	B
4POS,HPF 1.2,REC HSG ASSY,SLD	5-2307329-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	4	4 mm	1.2 mm	Black	Wire & Cable	15 A	Power	150 °C	12 V	On the Terminal	A
4POS,HPF 1.2,REC HSG ASSY,SLD	5-2307330-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	4	4 mm	1.2 mm	Black	-	-	Signal	150 °C	12 V	Locking Lance	A
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297812-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	3	4 mm	1.2 mm	Blue	-	-	Signal	145 °C, 105 °C, 140 °C, 85 °C, 110 °C, 120 °C, 125 °C, 70 °C, 100 °C, 130 °C, 150 °C, 75 °C, 80 °C, 90 °C	12 V	On the Terminal	C
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297812-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Black	-	-	Signal	105 °C, 140 °C, 120 °C, 85 °C, 110 °C, 125 °C, 70 °C, 100 °C, 130 °C, 145 °C, 150 °C, 75 °C, 80 °C, 90 °C	12 V	On the Terminal	A
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297807-3	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Blue	-	-	Signal	130 °C, 145 °C, 150 °C, 70 °C, 100 °C, 105 °C, 140 °C, 85 °C, 110 °C, 120 °C, 125 °C, 75 °C, 80 °C, 90 °C	12 V	On the Terminal	C
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297790-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Blue	-	-	Signal	70 °C, 125 °C, 80 °C, 140 °C, 105 °C, 90 °C, 130 °C, 145 °C, 150 °C, 120 °C, 75 °C, 110 °C, 100 °C, 85 °C	12 V	On the Terminal	C
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297812-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Brown	-	-	Signal	70 °C, 125 °C, 120 °C, 130 °C, 145 °C, 150 °C, 110 °C, 75 °C, 80 °C, 90 °C, 100 °C, 140 °C, 105 °C, 85 °C	12 V	On the Terminal	B
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297796-3	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Blue	-	-	Signal	100 °C, 70 °C, 120 °C, 90 °C, 80 °C, 140 °C, 105 °C, 130 °C, 145 °C, 150 °C, 75 °C, 125 °C, 85 °C, 110 °C	12 V	On the Terminal	C
2POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297795-1	Product Drawing 3D PDF	Wire-to-Device, Wire-to-Board	2	4 mm	1.2 mm	Black	Wire & Cable	15 A	Power	150 °C	48 V, 12 V	On the Terminal	A
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297811-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Black	Wire & Cable	15 A	Power	130 °C	24 V, 12 V	On the Terminal	A
3POS,HPF 1.2,REC HSG,ASSY,SLD	5-2297811-2	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Device	3	4 mm	1.2 mm	Brown	Wire & Cable	15 A	Power	130 °C	24 V, 12 V	On the Terminal	B

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Wire, Wire-to-Board, Wire-to-Device
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Connector Shape Rectangular
Primary Locking Feature On the Terminal, Locking Lance
Mixed & Hybrid Connector No
Connector & Housing Type Housing for Female Terminals

Configuration Features

Blank Cavity Position 0
Number of Positions 2, 3, 4, 5
Number of Rows 1

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 24, 48

Body Features

Primary Product Color Black, Brown, Blue, Light Blue
Cable Exit Angle 180°
Connector & Keying Code A, B, C

Contact Features

Contact Current Rating (Max) (A) 15
Contact Size 1.2mm
Contact Type Receptacle
Mating Tab Width 1.2 mm [ .047 in ]

Mechanical Attachment

Strain Relief Without
Terminal Position Assurance Yes
Mating Alignment With
Mating Alignment Type Keyed
Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material PA
Centerline (Pitch) 4 mm [ .157 in ]

Dimensions

Connector Height (mm) 17.5, 24.3, 28.3, 30
Connector Height (in) .689, .956, 1.18
Product Width (mm) 17.5, 30
Product Width (in) .689, 1.18
Product Length (mm) 15, 19
Product Length (in) .59, .748, .75

Usage Conditions

Operating Temperature Range -40 – 150 °C [ -40 – 302 °F ]
Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150
Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302

Operation/Application

Circuit Application Power, Signal

Industry Standards

IP Rating IPX9K
Compatible With Agency/Standards Products LV214
UL Flammability Rating UL 94HB

Packaging Features

Packaging Method Bag
Packaging Quantity 2000

Other

Connector Position Assurance Capable Yes
Serviceable Yes

Reference Number

TE Internal Number CAT-M4596-CH8172

Related Materials

No documentation available.

HPF 1.2, CONNECTOR HOUSING

Product Features

Packaging Method : Bag

Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

Primary Product Color : Black, Brown, Blue, Light Blue

IP Rating : IPX9K

Strain Relief : Without

Product Type Features

Connector System Wire-to-Wire, Wire-to-Board, Wire-to-Device

Sealable Yes

Connector & Contact Terminates To Wire & Cable

Connector Shape Rectangular

Primary Locking Feature On the Terminal, Locking Lance

Mixed & Hybrid Connector No

Connector & Housing Type Housing for Female Terminals

Configuration Features

Blank Cavity Position 0

Number of Positions 2, 3, 4, 5

Number of Rows 1

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 24, 48

Body Features

Primary Product Color Black, Brown, Blue, Light Blue

Cable Exit Angle 180°

Connector & Keying Code A, B, C

Contact Features

Contact Current Rating (Max) (A) 15

Contact Size 1.2mm

Contact Type Receptacle

Mating Tab Width 1.2 mm [ .047 in ]

Mechanical Attachment

Strain Relief Without

Terminal Position Assurance Yes

Mating Alignment With

Mating Alignment Type Keyed

Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Housing Material PA

Centerline (Pitch) 4 mm [ .157 in ]

Dimensions

Connector Height (mm) 17.5, 24.3, 28.3, 30

Connector Height (in) .689, .956, 1.18

Product Width (mm) 17.5, 30

Product Width (in) .689, 1.18

Product Length (mm) 15, 19

Product Length (in) .59, .748, .75

Usage Conditions

Operating Temperature Range -40 – 150 °C [ -40 – 302 °F ]

Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150

Operating Temperature (Max) (°F) 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302

Operation/Application

Circuit Application Power, Signal

Industry Standards

IP Rating IPX9K

Compatible With Agency/Standards Products LV214

UL Flammability Rating UL 94HB

Packaging Features

Packaging Method Bag

Packaging Quantity 2000

Other

Connector Position Assurance Capable Yes

Serviceable Yes

Reference Number

TE Internal Number CAT-M4596-CH8172
