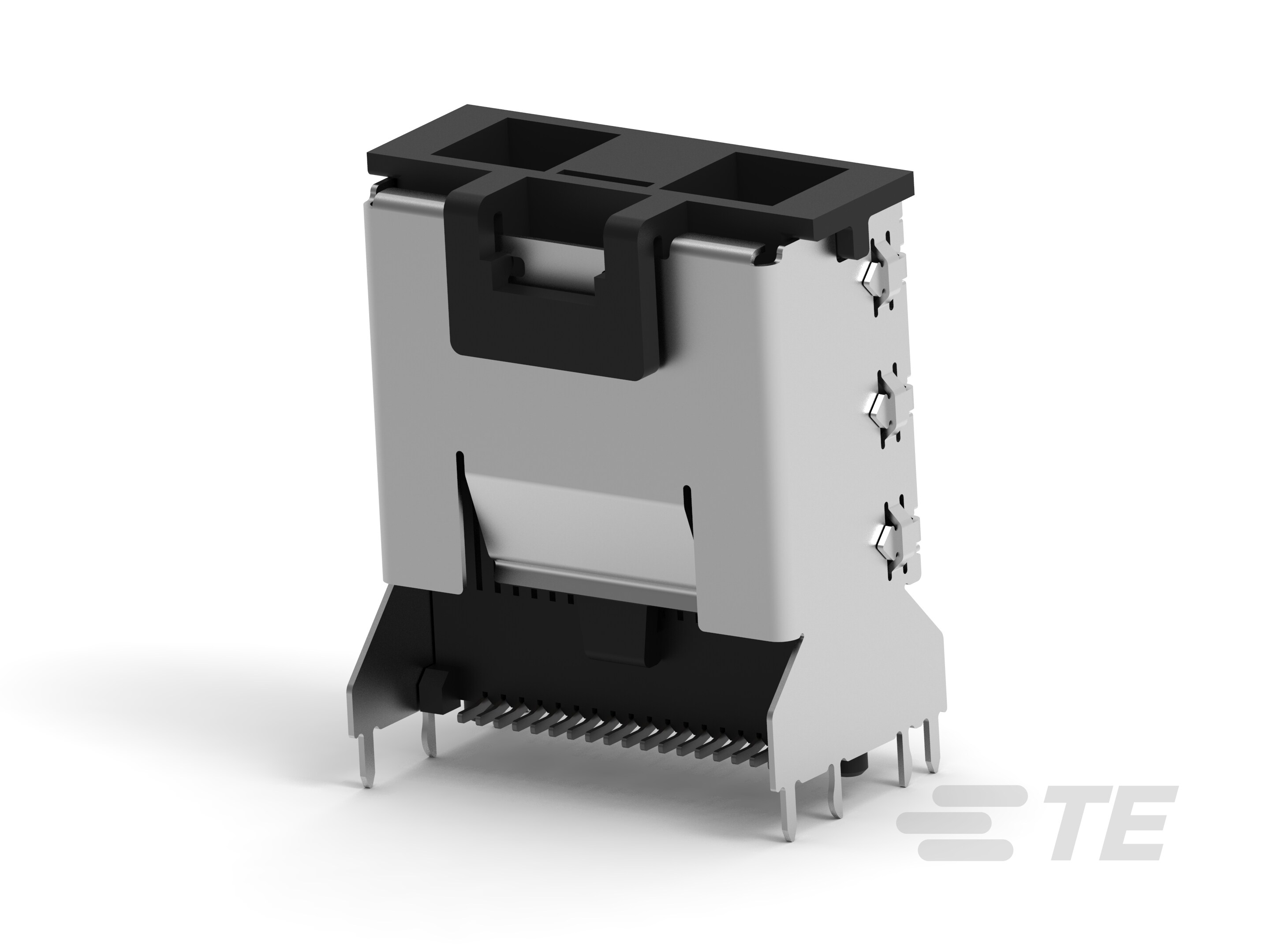

Mini-SAS Shielded Receptacle Assemblies

Please review product documents or contact us for the latest agency approval information.

• Contact Mating Area Plating Material Thickness (µin) 30

• Contact Base Material  Copper Alloy, Phosphor Bronze

• PCB Contact Termination Area Plating Material  Tin

• Contact Underplating Material  Nickel

• Contact Mating Area Plating Material  Gold

• Contact Current Rating (Max) (A) .5

• Profile Height from PCB (in) .211, .333

• Profile Height from PCB (mm) 8.47, 5.35

• Profile Height from PCB (in) .211, .333

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant

• Shell  With, Without

• Connector & Contact Terminates To  Printed Circuit Board

• SAS Connector Type  Mini-SAS

• Connector & Housing Type  Receptacle

• Connector System  Cable-to-Board

• SAS Connector Accessory Type  Shield, Shell

• Keying Type  Universal, 2

• Number of Positions  26, 36

• Number of Rows  2, 1

• Number of Ports  1

• PCB Mount Orientation  Vertical, Right Angle

• Primary Product Color  Black

• Termination Post & Tail Length (mm) 2.8, 3.5, 2, 3

• Termination Post & Tail Length (in) .11, .118, .138, .079

• Termination Method to PCB  Surface Mount, Through Hole - Press-Fit, Through Hole - Solder

• PCB Mount Retention Type  Hold-Down Post, Retention Solder Tails

• PCB Mount Retention  Without, With

• Connector Mounting Type  Board Mount

• Housing Material  LCP (Liquid Crystal Polymer)

• Centerline (Pitch) (mm) .8

• Centerline (Pitch) (in) .03, .031

• High Temperature Housing  Yes

• Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application  Signal

• UL Flammability Rating  UL 94V-0

• Packaging Method  Box & Tray, Package, Tape & Reel, Tray, Box, Box & Tube, Tube, Reel

• Packaging Quantity  39, 30, 400, 200, 26, 125, 96, 375
