MV Output Pressure Sensor, 19 mm

MV Output Pressure Sensor, 19 mm-CAT-MIPS0006
  • MEAS
|
  • MEAS 154 Series

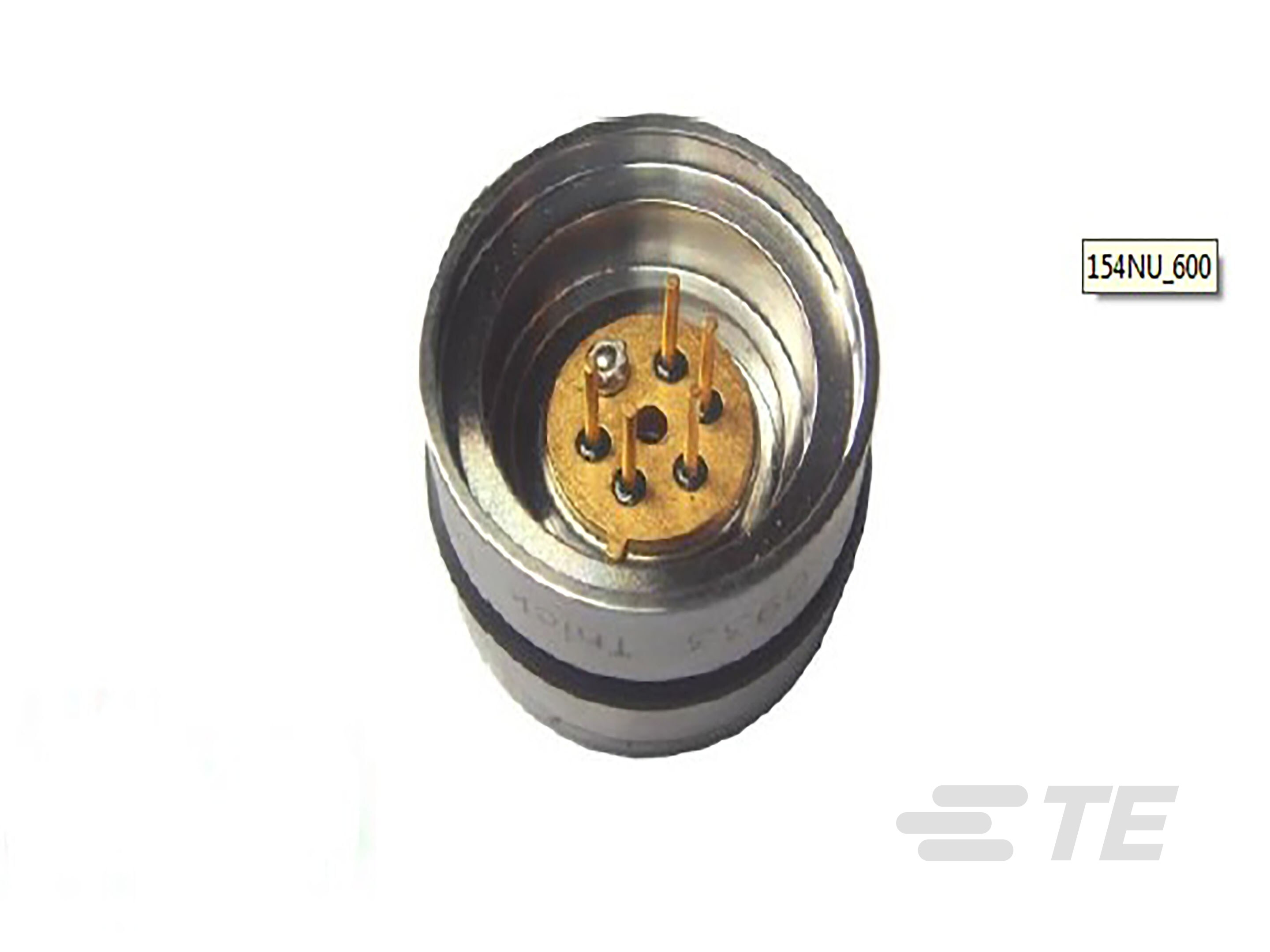

The 154N vacuum uncompensated is a 19mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.
More Less

Product Features

  • Pressure (psi): 30, 300, 50, 100, 15, 500

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Vacuum Gauge

  • Output Signal Type : Sensitivity = 12 - 27mV/V

  • Supply Voltage Range (V): 5

Available from

LADD Inc

Build and price the product now

Overview

The pressure sensor is designed for o-ring mounting and OEM applications requiring compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. Please refer to the 154N compensated and constant voltage datasheet for more information on different features of the 154N.

BENEFITS

  • 316L SS Pressure Sensor
  • 19mm Diameter
  • Vacuum Gage
  • O-Ring Mount
  • -40ºC to +125ºC Operating Temperature
  • ±0.2% Pressure Non Linearity
  • Solid State Reliability
Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

  • Proof Pressure Range  3X

  • Output Signal Type  Sensitivity = 12 - 27mV/V

Other

  • Non-Linearity ± (%) .1

  • Sensor Options  Vent Tube, No Tube

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Dimensions

  • Product Diameter  18.97 mm [ .746 in ]

  • Product Height  13.8 mm [ .54 in ]

Electrical Characteristics

  • Supply Current (mA) 1.5

  • Supply Voltage Range (V) 5

Configuration Features

  • Electrical Connection  Open Bridge, Uncompensated

Product Type Features

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Vacuum Gauge

  • Sensor Package  O-Ring Mount

Usage Conditions

  • Pressure (psi) 30, 300, 50, 100, 15, 500

Reference Number

  • TE Internal Number CAT-MIPS0006
