16MM MV OUTPUT PRESSURE SENSOR

16MM MV OUTPUT PRESSURE SENSOR-CAT-MIPS0021
  • MEAS
|
  • MEAS 86 Series

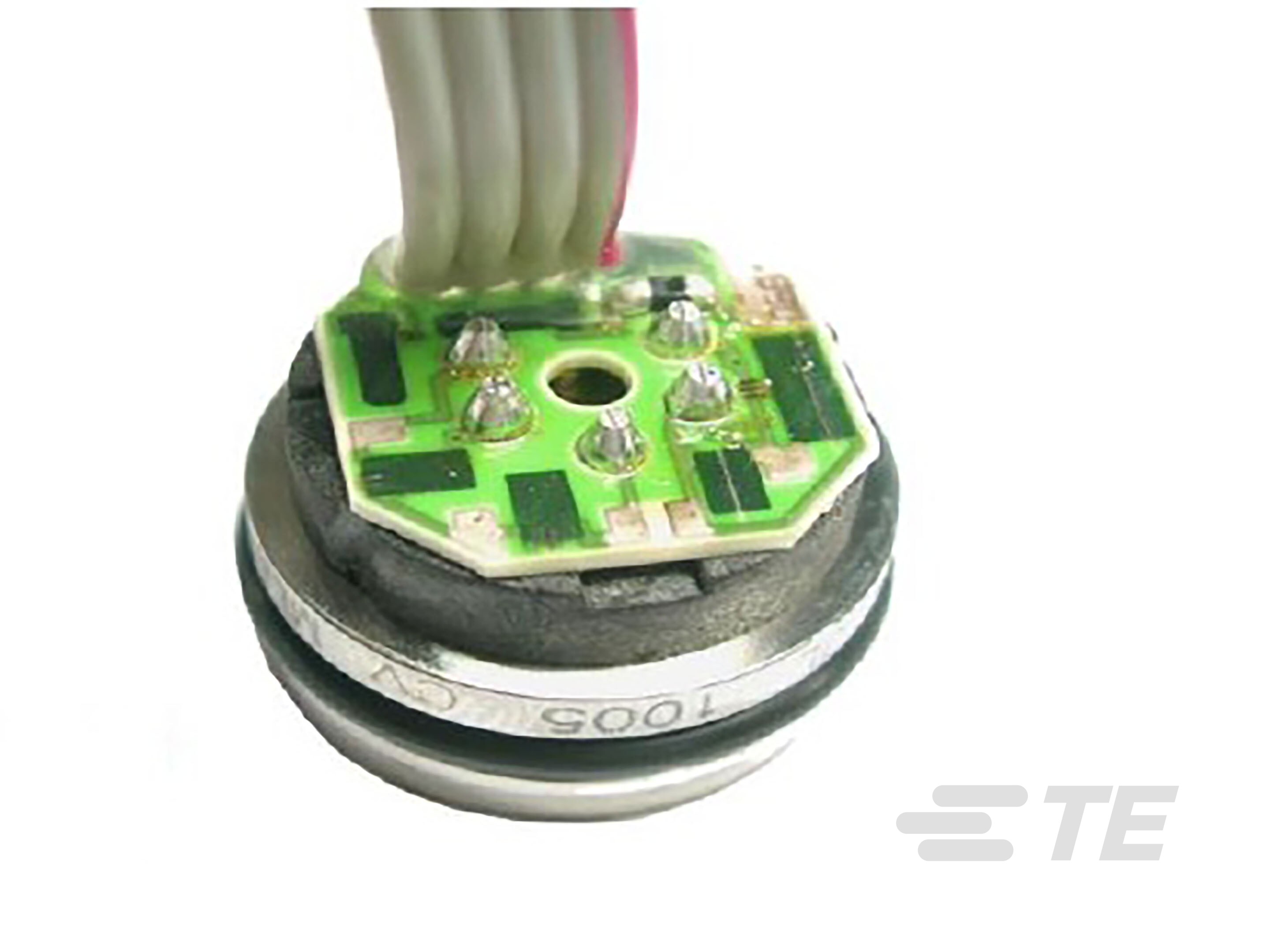

The 86 constant voltage is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.
More Less

Product Features

  • Pressure : 3.44 bar [ 50 psi ]

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Absolute

  • Output Signal Type : 100mV

  • Supply Voltage Range (V): 10

Available from

LADD Inc

Build and price the product now

Overview

The 86 constant voltage is designed for oring mounting and OEM applications where compatibility with corrosive media is required.  The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains lasertrimmed resistors for temperature compensation and offset correction.

BENEFITS

  • 316L SS Pressure Sensor
  • Small Profile
  • 0 - 100mV Output
  • Absolute and Gage
  • Temperature Compensated
  • O-Ring Mount
  • -40ºC to +125ºC Operating Temperature
  • Up to ±0.1% Pressure Non Linearity
  • Solid State Reliability
Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

  • Proof Pressure Range  3X

  • Output Signal Type  100mV

Other

  • Non-Linearity ± (%) .1

  • Sensor Options  No Tube

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Dimensions

  • Product Diameter  15.82 mm [ .622 in ]

  • Product Height  11.4 mm [ .448 in ]

Configuration Features

  • Electrical Connection  Solder Pads

Product Type Features

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Absolute

  • Sensor Package  O-Ring Mount

Electrical Characteristics

  • Supply Voltage Range (V) 10

Usage Conditions

  • Pressure  3.44 bar [ 50 psi ]

Reference Number

  • TE Internal Number CAT-MIPS0021
