SSO Compensated SS Pressure Sensors

First Sensor

First Sensor SSO

The SSO pressure sensors are calibrated and temperature compensated.

More Less

Datasheet |
Digital Datasheet|

Product Features

Pressure (bar): 1, .35, 20, .07, 2, 35, 10, 3.5, .7, 7
Pressure (psi): 29, 14.5, 1.01, 145.03, 101.52, 507.63, 290, 10.15, 5.07, 50.76
Pressure Sensor Type : Digital Pressure Sensor, Analog Pressure Sensor Modules
Pressure Type : Differential, Absolute, Vacuum Gauge, Gauge
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Port Fitting : G 1/8, 1/4 NPT, 1/4 18 NPT, Weld ring

Available from

Product	TE Part #	Documents	Pressure	Pressure Type	Port Fitting	EU RoHS Compliance
SSOB007A1FH; PRES;7bara;70mV;1.5mA;WR	1007140-F	3D PDF	7 bar	Absolute	Weld ring	-
SSOB002V5FH;2barvg;70mV;1.5mA;1/4"NPT	5001021-F		2 bar	Vacuum Gauge	1/4 NPT	Compliant
SSOB002V1FH; PRES;2barvg;70mV;1.5mA;WR	5001020-F	3D PDF	2 bar	Vacuum Gauge	Weld ring	Compliant
SSOM070G1FH; PRES;70mbarg;45mV;1.5mA;WR	5001026-F	3D PDF	.07 bar	Gauge	Weld ring	-
SSOB001G1FH; PRES;1barg;70mV;1.5mA;WR	1007132-F	3D PDF	1 bar	Gauge	Weld ring	-
SSOB020A8FH;PRES;20bara;70mV;1.5mA;G1/8"	1007151-F	3D PDF	20 bar	Absolute	G 1/8	Compliant
SSOB035A8FH;PRES;35bara;70mV;1.5mA;G1/8"	1007155-F	3D PDF	35 bar	Absolute	G 1/8	Compliant
SSOB3x5G8FH;3.5barg;70mV;1.5mA;G1/8"	1007159-F	3D PDF	3.5 bar	Gauge	G 1/8	Compliant
SSOB007V1FH; PRES;7barvg;70mV;1.5mA;WR	1007144-F	3D PDF	7 bar	Vacuum Gauge	Weld ring	Compliant
SSOB002G8FH; PRES;2barg;70mV;1.5mA;G1/8"	1007138-F	3D PDF	2 bar	Gauge	G 1/8	Compliant
SSOM070D1LH; PRES;70mbard;60mV;1.5mA;WR	5001025-F		.07 bar	Differential	Weld ring	-
SSOB001V5FH;1barvg;60mV;1.5mA;1/4"NPT	5001018-F		1 bar	Vacuum Gauge	1/4 NPT	Compliant
SSOB3x5V8FH;3.5barvg;70mV;1.5mA;G1/8"	1007160-F	3D PDF	3.5 bar	Vacuum Gauge	G 1/8	Compliant
SSOB3x5A1FH; PRES;3.5bara;70mV;1.5mA;WR	5001023-F	3D PDF	3.5 bar	Absolute	Weld ring	Compliant
SSOB007A8FH; PRES;7bara;70mV;1.5mA;G1/8"	1007141-F	3D PDF	7 bar	Absolute	G 1/8	Compliant
SSOB001V1SH;1barvg;60mV;1.5mA;WR;PINS	1014396-F		1 bar	Vacuum Gauge	Weld ring	Compliant
SSOB007V5FH;7barvg;70mV;1.5mA;1/4"NPT	5001022-F		7 bar	Vacuum Gauge	1/4 NPT	Compliant
SSOM070G8FH;70mbarg;45mV;1.5mA;G1/8"	5001027-F	3D PDF	.07 bar	Gauge	G 1/8	-
SSOM700GNFH;700mbarg;70mV;1.5mA;1/4"NPTm	3004119-F		.7 bar	Gauge	1/4 18 NPT	Compliant
SSOM700A8FH;PR;700mbara;70mV;1.5mA;G1/8"	1007167-F	3D PDF	.7 bar	Vacuum Gauge	G 1/8	-
SSOB001V1LH;1barvg;60mV;1.5mA;WR;Cab	5001017-F		1 bar	Vacuum Gauge	Weld ring	Compliant
SSOB002A8FH; PRES;2bara;70mV;1.5mA;G1/8"	1007136-F	3D PDF	2 bar	Absolute	G 1/8	Compliant
SSOB3x5A8FH;3.5bara;70mV;1.5mA;G1/8"	1007158-F	3D PDF	3.5 bar	Absolute	G 1/8	Compliant
SSOB001A8FH; PRES;1bara;70mV;1.5mA;G1/8"	1007131-F	3D PDF	1 bar	Absolute	G 1/8	Compliant
SSOB002V8FH;PRES;2barvg;70mV;1.5mA;G1/8"	1007139-F	3D PDF	2 bar	Vacuum Gauge	G 1/8	Compliant
SSOB001G8FH; PRES;1barg;70mV;1.5mA;G1/8"	1007133-F	3D PDF	1 bar	Gauge	G 1/8	Compliant
SSOB010A8FH;PRES;10bara;70mV;1.5mA;G1/8"	1007147-F	3D PDF	10 bar	Absolute	G 1/8	Compliant
SSOM700G8FH;700mbarg;70mV;1.5mA;G1/8"	1007169-F	3D PDF	.7 bar	Vacuum Gauge	G 1/8	Compliant
SSOB035A1FH; PRES;35bara;70mV;1.5mA;WR	1007154-F	3D PDF	35 bar	Absolute	Weld ring	-
SSOM350D1LH; PRES;350mbard;60mV;1.5mA;WR	5001029-F		.35 bar	Differential	Weld ring	-
SSOB001A1FH; PRES;1bara;70mV;1.5mA;WR	1007130-F	3D PDF	1 bar	Absolute	Weld ring	Compliant
SSOB007G8FH; PRES;7barg;70mV;1.5mA;G1/8"	1007143-F	3D PDF	7 bar	Gauge	G 1/8	Compliant
SSOB007V8FH;PRES;7barvg;70mV;1.5mA;G1/8"	1007145-F	3D PDF	7 bar	Vacuum Gauge	G 1/8	Compliant
SSOB035G1FH; PRES;35barg;70mV;1.5mA;WR	1007156-F	3D PDF	35 bar	Gauge	Weld ring	Compliant

Overview

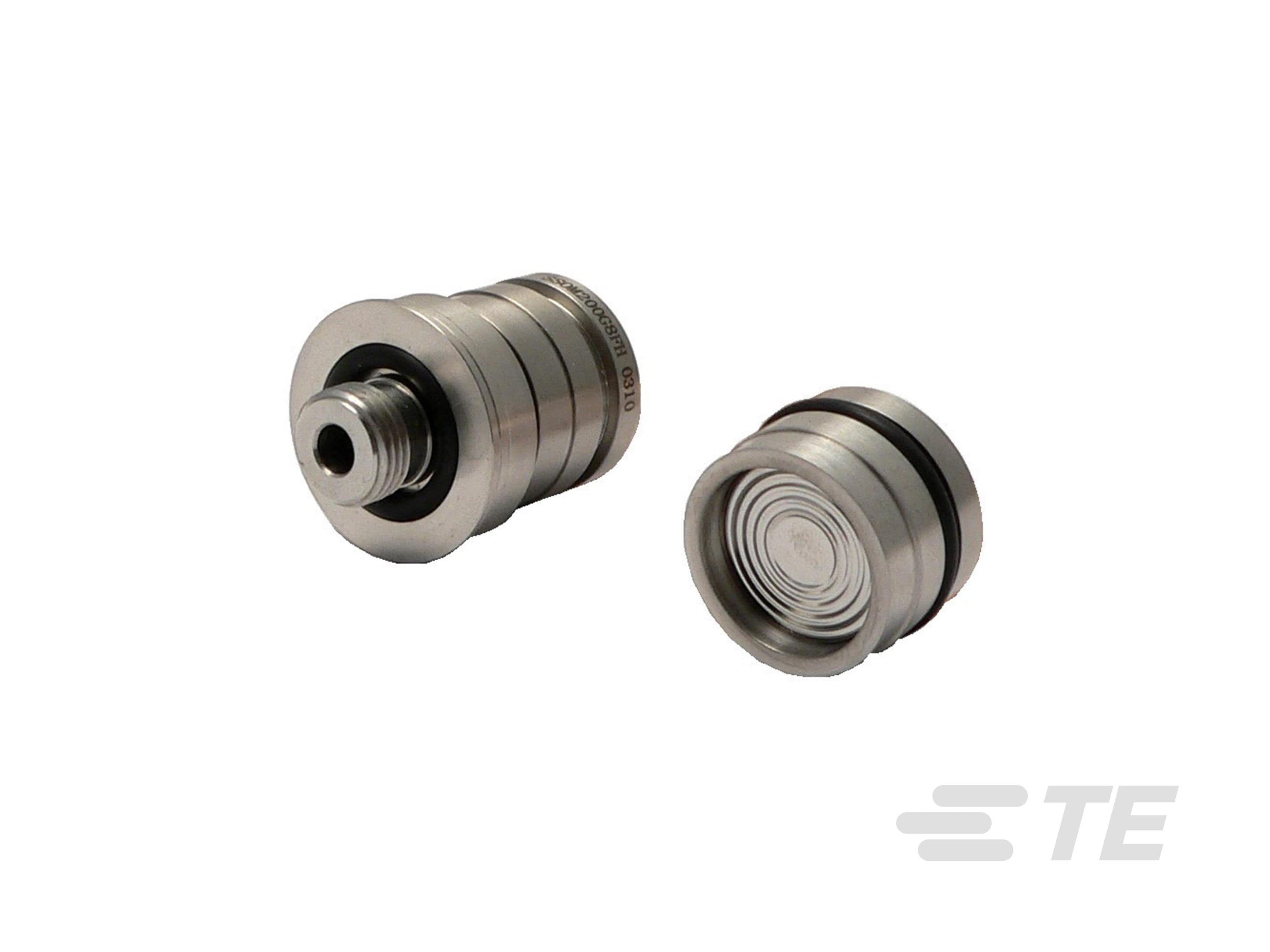

The stainless-steel construction allows for high media compatibility with corrosive liquids and gases. Available packaging options include diaphragm versions with weld ring or housings with G 1/8 and 1/4 NPT threaded pressure ports. All SSO pressure sensors can be modified according to customer specific requirements.

Benefits

200 mbar to 35 bar / 3 psi to 500 psi absolute, gage or vacuum / gage pressure
Calibrated and temperature compensated
Rugged stainless-steel isolated package

Applications

Industrial measurement
Industrial control
Medical devices
Medical instrumentation

Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

Proof Pressure Range 2X

Other

Non-Linearity ± (%) .1
Port Fitting G 1/8, 1/4 NPT, 1/4 18 NPT, Weld ring
EU RoHS Compliance Compliant

Dimensions

Product Diameter 19 mm [ .748 in ]
Product Height 13 mm [ .511 in ]

Electrical Characteristics

Supply Current (mA) 2

Configuration Features

Electrical Connection Flex strip

Product Type Features

Pressure Sensor Type Digital Pressure Sensor, Analog Pressure Sensor Modules
Pressure Type Differential, Absolute, Vacuum Gauge, Gauge
Sensor Package O-Ring Mount, Threaded Process Fittings

Usage Conditions

Pressure (bar) 1, .35, 20, .07, 2, 35, 10, 3.5, .7, 7
Pressure (psi) 29, 14.5, 1.01, 145.03, 101.52, 507.63, 290, 10.15, 5.07, 50.76
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Reference Number

TE Internal Number CAT-MIPS0046
