Differential / Line Pressure Dual Output Sensor (DAP82)

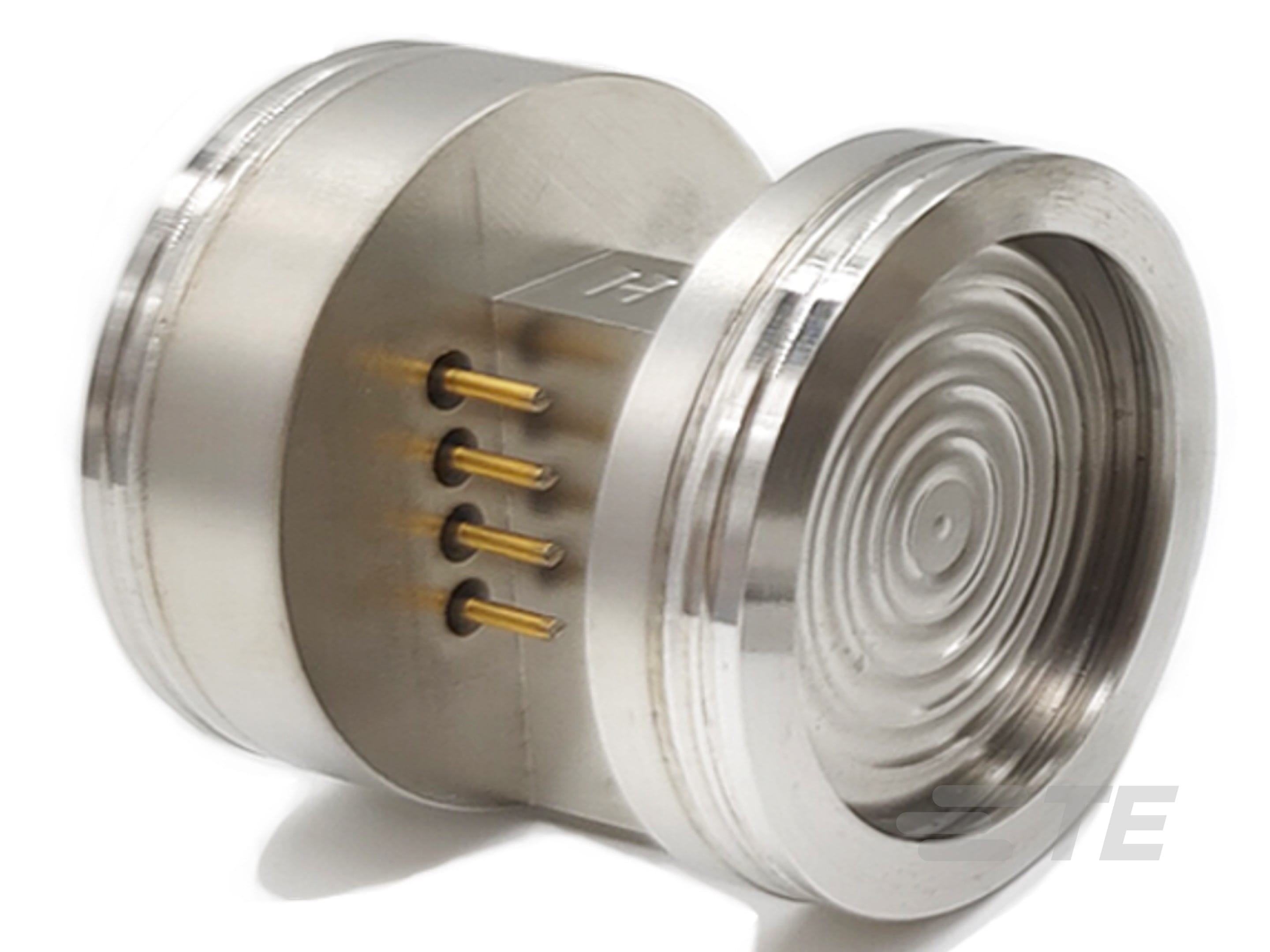

The DAP82 dual output pressure platform offers exceptional performance to flow measurement customers by leveraging TE’s broad range of high stability MEMS die. Differential and line pressure output can be obtained through an interconnection PCB or two independent rows of pins.

More Less

Datasheet |
Digital Datasheet|

Product Features

Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
Pressure (bar): 6.895, 1.034, .345, 3.447, .103, 2.482
Pressure (psi): 100, 15, 50, 5, 1.5, 36
Supply Voltage Range (V): 5
Pressure Type : Absolute & Differential
Output Signal Type : Sensitivity = 12 - 27mV/V

Available from

Product	TE Part #	Documents	Pressure	Pressure Sensor Type
Pressure Sensor,DAP82S-036D050A-11957	20021118-26	3D PDF	3.447 bar, 2.482 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82H-01D5015A-11957	20021118-01	3D PDF	1.034 bar, .103 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor, DAP82S-01D5100A-11957	20021118-27		6.895 bar, .103 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor, DAP82S-005D100A-11957	20021118-28		.345 bar, 6.895 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82S-01D5015A-11957	20021118-21	3D PDF	1.034 bar, .103 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82H-036D050A-11957	20021118-06	3D PDF	2.482 bar, 3.447 bar	Dual Pressure Sensor, mV Output Pressure Sensors
Pressure Sensor,DAP82H-01D5050A-11957	20021118-04	3D PDF	3.447 bar, .103 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor, DAP82H-005D100A-11957	20021118-08		6.895 bar, .345 bar	Dual Pressure Sensor, mV Output Pressure Sensors
Pressure Sensor, DAP82S-036D100A-11957	20021118-29		6.895 bar, 2.482 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82H-005D015A-11957	20021118-00	3D PDF	1.034 bar, .345 bar	Dual Pressure Sensor, mV Output Pressure Sensors
Pressure Sensor, DAP82H-01D5100A-11957	20021118-07		6.895 bar, .103 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82S-005D050A-11957	20021118-23	3D PDF	3.447 bar, .345 bar	Dual Pressure Sensor, mV Output Pressure Sensors
Pressure Sensor,DAP82S-005D015A-11957	20021118-20	3D PDF	.345 bar, 1.034 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82S-01D5050A-11957	20021118-24	3D PDF	.103 bar, 3.447 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor, DAP82H-036D100A-11957	20021118-09		2.482 bar, 6.895 bar	mV Output Pressure Sensors, Dual Pressure Sensor
Pressure Sensor,DAP82H-005D050A-11957	20021118-02	3D PDF	3.447 bar, .345 bar	Dual Pressure Sensor, mV Output Pressure Sensors

Overview

Multiple differential and line pressure combinations available to meet the most demanding flow measurement needs in semiconductor and industrial process control applications. Increased proof pressure capability enables highly reliable long-term deployment under the most difficult operating conditions. Hastelloy C276 wetted materials allow UHP environment and harsh media direct contact, custom flange and base design allow fast installation to the flow control module.

Product Features

Weld ring interface at both ports
Up to ±0.1% FS linearity
±0.1% span/year typical long term stability
High overload pressure
Low differential pressure range

Applications

Mass flow controller
Differential flow meter
Corrosive fluid/gas measurement system
Level transmitters
OEM equipment

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Type Absolute & Differential
Sensor Package Flange Mount
Pressure Sensor Type mV Output Pressure Sensors, Dual Pressure Sensor

Electrical Characteristics

Supply Voltage Range (V) 5

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Pressure (bar) .103, .345, 1.034, 2.482, 3.447, 6.895
Pressure (psi) 1.5, 5, 15, 36, 50, 100
Output Signal Type Sensitivity = 12 - 27mV/V

Other

Port Fitting Weld ring

Reference Number

TE Internal Number CAT-MIPS0049

Related Materials

Datasheets & Catalog Pages

DAP82 pdf English

Differential / Line Pressure Dual Output Sensor (DAP82)

Product Features

Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

Pressure (bar): 6.895, 1.034, .345, 3.447, .103, 2.482

Pressure (psi): 100, 15, 50, 5, 1.5, 36

Supply Voltage Range (V): 5

Pressure Type : Absolute & Differential

Output Signal Type : Sensitivity = 12 - 27mV/V

Product Features

Applications

Product Type Features

Pressure Type Absolute & Differential

Sensor Package Flange Mount

Pressure Sensor Type mV Output Pressure Sensors, Dual Pressure Sensor

Electrical Characteristics

Supply Voltage Range (V) 5

Usage Conditions

Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

Pressure (bar) .103, .345, 1.034, 2.482, 3.447, 6.895

Pressure (psi) 1.5, 5, 15, 36, 50, 100

Output Signal Type Sensitivity = 12 - 27mV/V

Other

Port Fitting Weld ring

Reference Number

TE Internal Number CAT-MIPS0049

Datasheets & Catalog Pages
