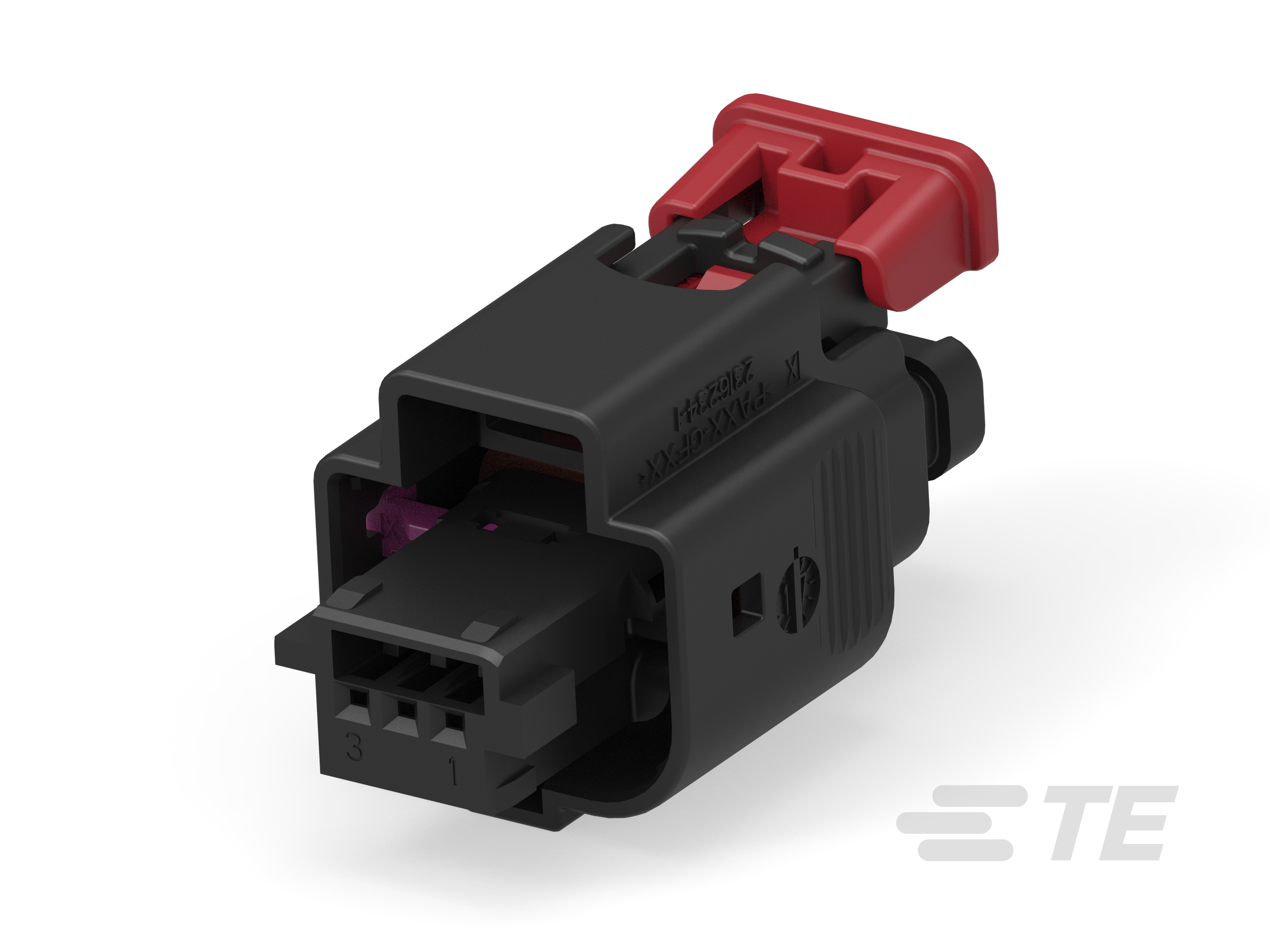

MCON 0.50, REC HSG, Sealed

MCON 0.50, REC HSG, Sealed-CAT-N54-MRHS050

Product Features

Operating Temperature Range (°C): -40 – 105, -40 – 150
Operating Temperature Range (°F): -40 – 221, -40 – 302
Primary Product Color : Black
Operating Temperature (Max) : 105 °C [ 221 °F ]
Primary Locking Feature : On the Terminal, Integrated in Housing
Terminal Position Assurance : Yes

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Centerline (Pitch)	Mating Tab Width	Number of Rows	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Operating Temperature (Max)	Nominal Voltage Architecture	Primary Locking Feature	Operating Temperature Range
6POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2318300-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board	6	1.8 mm	.5 mm	2	Wire & Cable	3 A	Signal	105 °C	12 V, 24 V	On the Terminal	-40 – 105 °C
3POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2316210-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board	3	1.8 mm	.5 mm	1	Wire & Cable	3 A	Signal	105 °C	12 V, 24 V	On the Terminal	-40 – 105 °C
4POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2318200-1	Product Drawing 3D PDF	-	4	1.8 mm	.5 mm	2	-	-	Power & Signal	-	12 V	Integrated in Housing	-40 – 150 °C
8POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2318400-1	Product Drawing 3D PDF	Wire-to-Board, Wire-to-Wire	8	1.8 mm	.5 mm	2	Wire & Cable	3 A	Signal	105 °C	24 V, 12 V	On the Terminal	-40 – 105 °C
12POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2318600-1	Product Drawing 3D PDF	Wire-to-Wire, Wire-to-Board	12	1.8 mm	.5 mm	2	Wire & Cable	3 A	Signal	105 °C	12 V, 24 V	On the Terminal	-40 – 105 °C
10POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2318935-1	Product Drawing 3D PDF	-	10	1.8 mm	.5 mm	2	-	-	Power & Signal	-	12 V	Integrated in Housing	-40 – 150 °C
6POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2316218-1	Product Drawing 3D PDF	-	6	1.8 mm	.5 mm	1	-	-	Power & Signal	-	12 V	Integrated in Housing	-40 – 150 °C
4POS,MCON 0.5,REC HSG ASSY,SLD,COD A	2316284-1	Product Drawing 3D PDF	-	4	1.8 mm	.5 mm	1	-	-	Power & Signal	-	12 V	Integrated in Housing	-40 – 150 °C

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature On the Terminal, Integrated in Housing
Mixed & Hybrid Connector No
Connector System Wire-to-Wire, Wire-to-Board
Sealable Yes
Connector & Housing Type Housing for Female Terminals
Connector & Contact Terminates To Wire & Cable
Connector Shape Rectangular

Configuration Features

Number of Positions 3, 4, 6, 8, 10, 12
Number of Rows 1, 2

Electrical Characteristics

Nominal Voltage Architecture (V) 12, 24

Body Features

Primary Product Color Black
Connector & Keying Code A

Contact Features

Contact Current Rating (Max) (A) 3
Mating Tab Width .5 mm [ .02 in ]
Contact Size .5mm
Contact Type Receptacle

Mechanical Attachment

Terminal Position Assurance Yes
Mating Alignment With
Mating Alignment Type Keyed
Connector Mounting Type Cable Mount (Free-Hanging)

Housing Features

Centerline (Pitch) 1.8 mm [ .07 in ]

Usage Conditions

Operating Temperature Range (°C) -40 – 105, -40 – 150
Operating Temperature Range (°F) -40 – 221, -40 – 302
Operating Temperature (Max) 105 °C [ 221 °F ]

Operation/Application

Circuit Application Signal, Power & Signal

Other

Connector Position Assurance Capable Yes

Reference Number

TE Internal Number CAT-N54-MRHS050
