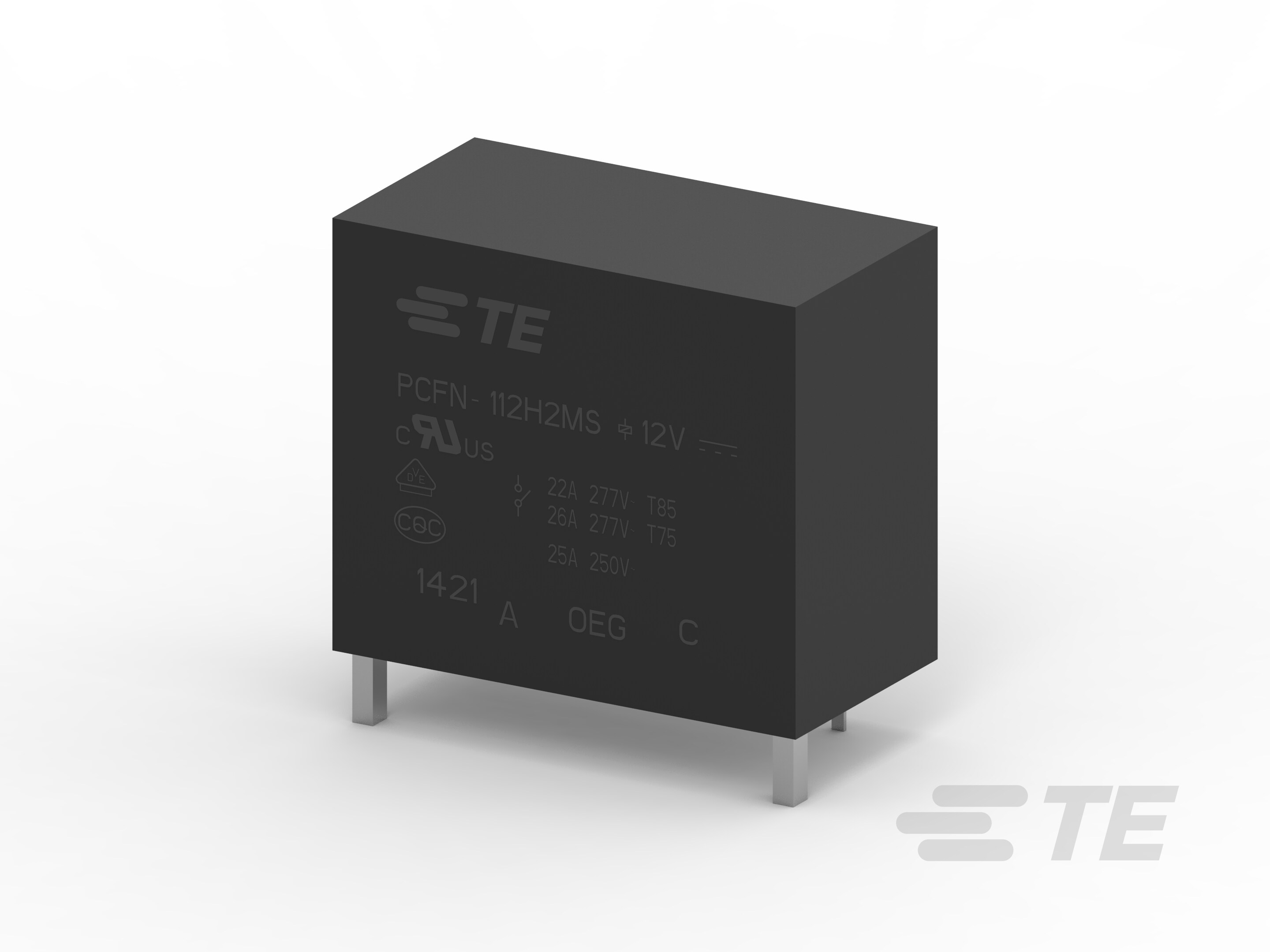

Solar Relay, PCFN

Please review product documents or contact us for the latest agency approval information.

• Relay Type  General Purpose Power Relay

• Coil Special Features  UL Coil Insulation Class F

• Contact Arrangement  1 Form A (NO)

• Contact Number of Poles  1

• Contact Special Features  1.5mm Contact Gap, 1.8mm Contact Gap

• Insulation Special Features  Tracking Index of Relay Base PTI175

• Contact Limiting Breaking Current (A) 26

• Input Voltage (VDC) 0 – 12, 0 – 24

• Coil Power Rating DC (mW) 1500

• Coil Resistance (Ω) 96, 112, 384

• Coil Voltage Rating (VDC) 12, 24

• Contact Current Rating (A) 26

• Contact Switching Load (Min)  1A @ 5V

• Contact Switching Voltage (Max) (VAC) 277

• Contact Voltage Rating (VAC) 277

• Insulation Initial Dielectric Between Contacts & Coil (Vrms) 4000

• Output Current (Min) (A) 1

• Output Voltage Rating (AC Relays) (Vrms) 0 – 277

• Contact Limiting Continuous Current (A) 26

• Contact Limiting Making Current (A) 26

• Output Voltage (Max) (V) 277

• Insulation Initial Dielectric Between Contacts & Coil (V) 4000

• Insulation Initial Resistance (MΩ) 1000

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 2500

• Output Current Rating (Arms) 0 – 26

• Coil Power Rating (W) 1.5

• Contact Limiting Short-Time Current (A) 26

• Insulation Initial Dielectric Between Open Contacts (Vrms) 2500

• Coil Current (A) .063, .125

• Output Current Rating (A) 0 – 26

• Product Weight  28 g [ .988 oz ]

• Primary Product Color  Black

• Enclosure Type  Plastic Dust Cover

• Contact Material  AgSnO2

• Contact Plating Material  AgSnO

• Product Height  26.5 mm [ 1.043 in ]

• Product Length  30.4 mm [ 1.197 in ]

• Product Width  16 mm [ .63 in ]

• Insulation Creepage Between Contact & Coil  6.1 mm [ .24 in ]

• Insulation Clearance Between Contact & Coil  6.1 mm [ .24 in ]

• Operating Temperature Range (°C) -25 – 75, -25 – 75

• Operating Temperature Range (°F) -13 – 167

• Environmental Ambient Temperature (Max)  75 °C [ 167 °F ]

• Environmental Category of Protection  RTII

• Coil Magnetic System  Monostable

• Output Current Type  AC

• Output Switching  Random

• Actuating System  DC

• Packaging Method  Tube

• Contact Current Class (A) 16

• Width Class (Mechanical) (mm) 12 – 16

• Insulation Clearance Class (mm) 5 – 8

• Environmental Ambient Temperature Class (°C) 70 – 85

• Coil Power Rating Class (mW) 1000 – 1500

• Height Class (Mechanical) (mm) 25 – 30

• Insulation Creepage Class (mm) 5.5 – 8

• Insulation Initial Dielectric Between Coil & Contact Class (V) 3500 – 4000

• Length Class (Mechanical) (mm) 30 – 35
