Solid State Relays, P&B SSRF Series

Solid State Relays, P&B SSRF Series-CAT-P851-SS61D
  • Potter & Brumfield
|
  • Potter & Brumfield SSRF

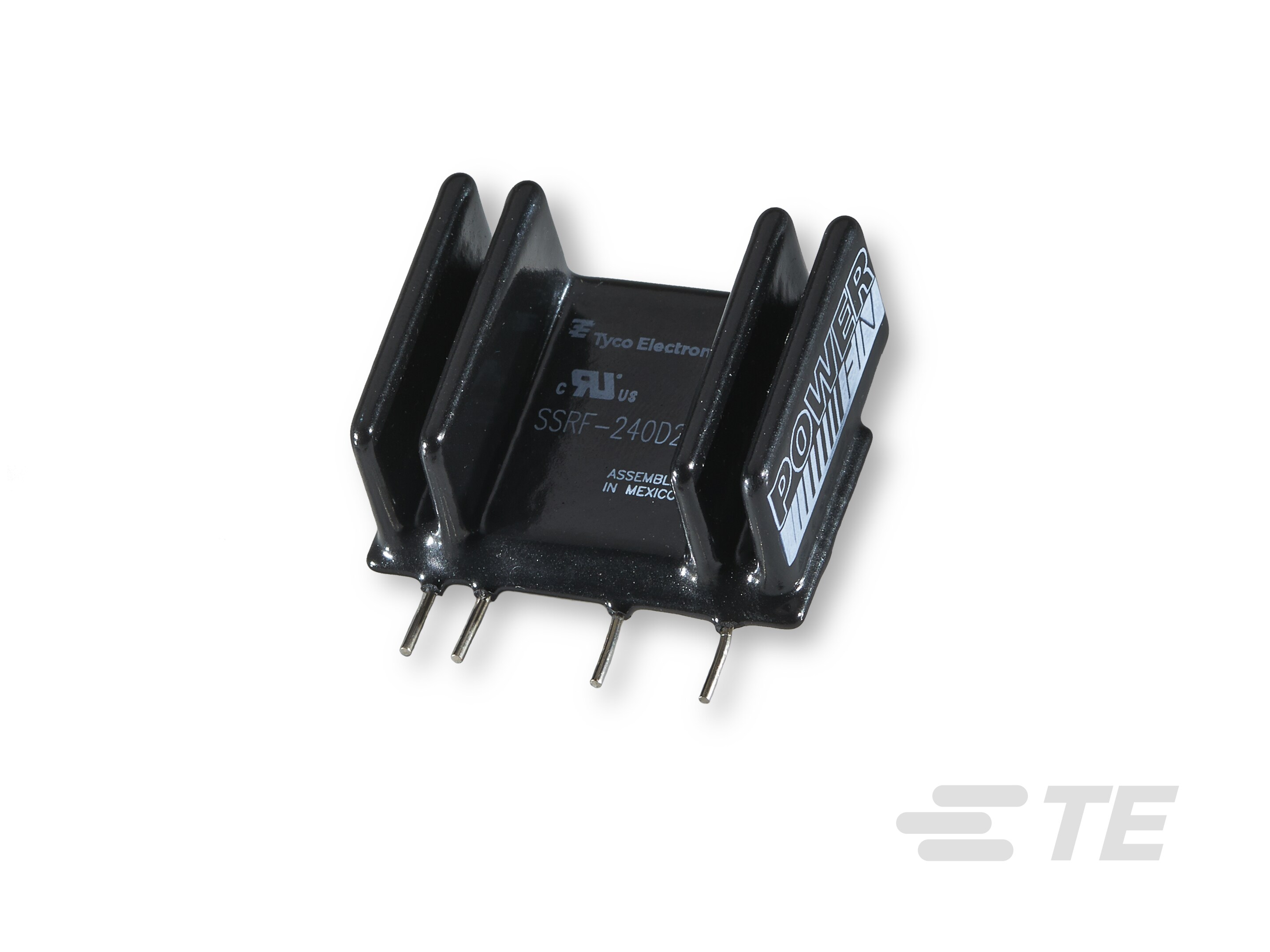

P&B SSRF 25A SIP Solid State Relay with Paired SCR Output, Integral Heatsink. Choice of 240 or 480VAC nominal output. 3-15 / 4-15VDC input control. 4,000V rms optical isolation. Pinout compatible with OAC or OACM series output modules.
More Less

Product Features

  • Input Current Type : DC

  • Contact Arrangement : 1 Form A SPST-NO

  • Input Voltage (VDC): 3 – 15, 4 – 15

  • Output Voltage Rating (Vrms): 12 – 280, 48 – 660

  • Output Voltage Rating (VDC): 12 – 280, 48 – 660

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Relay Options  Integral Heatsink

  • Contact Arrangement  1 Form A SPST-NO

Body Features

  • Device Package Style  SIP

  • Primary Product Color  Black

  • Product Weight  25 g [ .85 oz ]

Electrical Characteristics

  • Insulation Initial Dielectric Between Contacts & Coil (Vrms) 4000

  • Input Voltage (VDC) 3 – 15, 4 – 15

  • Output Voltage Rating (Vrms) 12 – 280, 48 – 660

  • Output Voltage Rating (VDC) 12 – 280, 48 – 660

Operation/Application

  • Input Current Type  DC

  • Output Switching  Random, Zero

  • Output Current Type  AC

Mechanical Attachment

  • Product Mount Type  Board Mount

Termination Features

  • Relay Connection Type  PCB Termination

  • Terminal Configuration  Solder Pins

Dimensions

  • Product Length  43.1 mm [ 1.7 in ]

  • Product Width  22.8 mm [ .897 in ]

  • Product Height  34.3 mm [ 1.35 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 80 °C [ -22 – 176 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-P851-SS61D
