SAE J211/J2570 Compliant Accelerometer
- MEAS
- MEAS 64
Product Features
-
Accelerometer Type : MEMS DC
-
Vibration Sensor Product Type : MEMS Accelerometer
-
Number of Sensing Axes : Uniaxial
-
Frequency Response (Hz): 0-2800, 0-1900, 0-1400 to 0-7000, 0-1500, 0-2000
-
Full Scale Output Voltage (VDC): ±.1

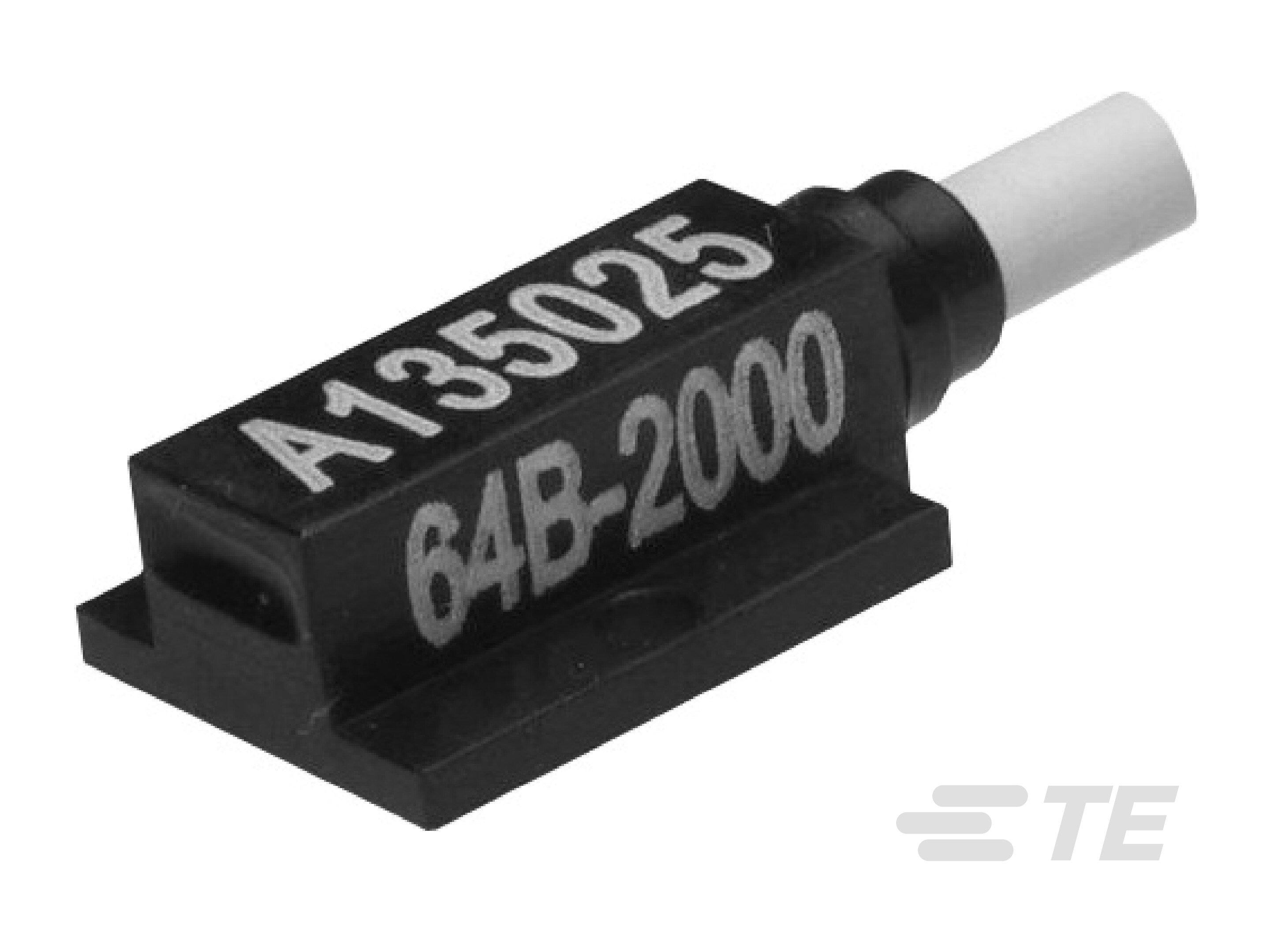

The Model 64B Accelerometer is based on an advanced piezoresistive MEMS sensing element which offers exceptional dynamic range and stability.
This accelerometer sensor features a full bridge output configuration with a temperature range from 0 to +50º C. A slight amount of internal gas damping provides outstanding shock survivability and a flat amplitude and phase response up to 7kHz. The Model 64B is compliant with SAE J211 standards for anthropomorphic dummy instrumentation.
Benefits
- DC Response Accelerometer
- Durable Low Noise Cable
- Environmentally Sealed
- SAE J2570 Compliant
- Piezoresistive MEMS Sensor
- ±50g to ±6,000g Ranges
- 2-10 Vdc Excitation
- 0-50ºC Temperature Range
- 1% Transverse Sensitivity Option
- <±25 mV Zero Offset
Applications
- Safety Crash Testing: Auto, Truck, Recreational Vehicles
- Shock Testing
Other Auto Safety Sensors
Frequently Asked Questions
What is an accelerometer?
Accelerometers measure the acceleration or vibration of a device or system. Physically, the accelerometer can be considered as nothing more than a weight on a spring which is connected to a frame. When the frame is moved, the mass will stay at rest until the spring, being stretched, can exert enough energy on the mass to make it move.
What is difference between piezo-electric (PE), piezo-resistive (PR) and variable capacitance (VC) accelerometers?
The word “piezo” comes from the Greek word “piezein” which means to press or squeeze. In this case, this refers to a basic characteristic of the material; when pressed or subjected to force, piezoelectric (PE) materials develop an electric charge and piezoresistive (PR) materials exhibit a change in resistance. Variable Capacitance (VC) sensors are essentially accelerometers that derive the acceleration measurement from a change in capacitance of a seismic mass moving between two parallel capacitor plates. These are the principles of operation of most accelerometers in use today.
What is the term damping referring to in piezo-resistive accelerometers?
By providing a narrow gap between two large moving plates, air is displaced, and this displacement slows the motion of the mass, thus damping the movement. If the gap is not well-controlled, the piezo-resistive accelerometer may be either grossly underdamped or overdamped. The problem with overdamping is the loss of useful bandwidth from the sensor. For underdamped devices, the accelerometer is more prone to signal distortion and breakage when excited near the peak response. For instance, a device with a Q of 10 will indicate 10 times gain at resonance and a 1g acceleration input will excite the seismic mass to 10g.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sensor Package Plug & Play
-
Accelerometer Type MEMS DC
-
Vibration Sensor Product Type MEMS Accelerometer
Other
-
Non-Linearity (FSO) (%) ±1
-
Acceleration Range (±) (g) 200, 2000, 100, 500, 6000
-
Sensitivity (mV/g) .14, .3, .6, .04, 1.4, .1
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Operation/Application
-
Output Current Type DC
Electrical Characteristics
-
Excitation Voltage Range (VDC) 2 – 10, 10
-
Zero Acceleration Output (mV) ±25
-
Full Scale Output Voltage (VDC) ±.1
Usage Conditions
-
Operating Temperature Range -40 – 121 °C [ -40 – 250 °F ]
Body Features
-
Primary Product Material Anodized Aluminum
-
Product Weight 1 g [ .035 oz ]
-
Number of Sensing Axes Uniaxial
Configuration Features
-
Electrical Connection Integral Cable
Industry Standards
-
IP Rating IP66
Signal Characteristics
-
Frequency Response (Hz) 0-2800, 0-1900, 0-1400 to 0-7000, 0-1500, 0-2000
Mechanical Attachment
-
Sensor Mount Type Screw Mount
Reference Number
-
TE Internal Number CAT-PPA0015
Datasheets & Catalog Pages
- 64B_Accelerometer English
