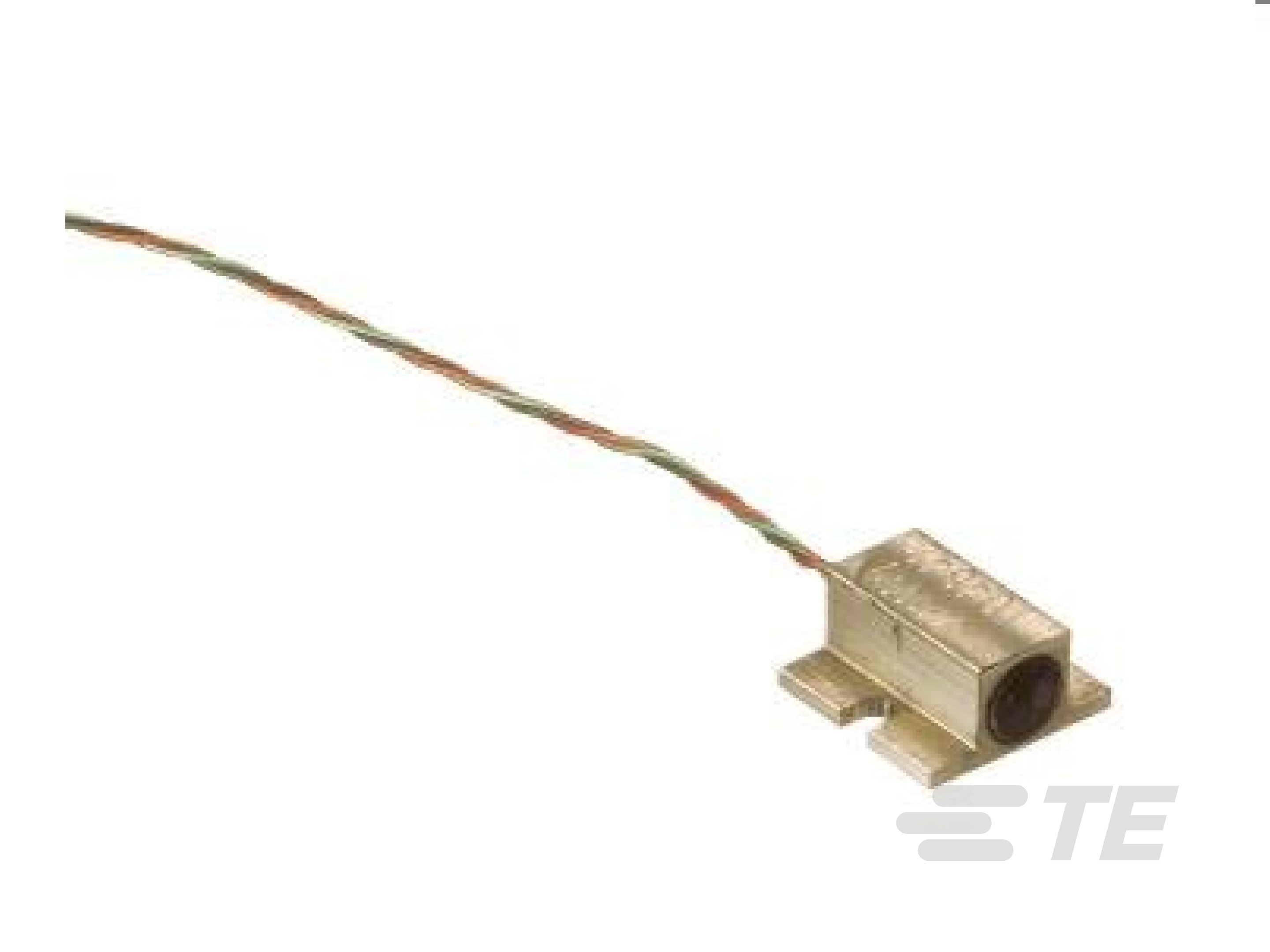

Mini Screw Mount Accelerometer

Mini Screw Mount Accelerometer-CAT-PPA0018
  • MEAS
|
  • MEAS EGAS
The Model EGAS is a miniature, lightweight uniaxial accelerometer featuring ranges from ±5g through ±2500g.
More Less

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-1900 to 0-7000, 0-2800, 0-1400 to 0-4500, 0-1900, 0-8000, 0-600 to 0-10000, 0-150

  • Full Scale Output Voltage (VDC): ±.25, ±.1

Available from

LADD Inc
Overview

This rugged unit weighs less than 1 gram (without leads) and has an over-range limit of 10,000g's. The ½ active bridge is suitable for shunt calibration. With an operating temperature range of -40ºC to +120ºC, the EGAS is the unit of choice for measurement professionals in the automotive, military, aerospace and transportation industries. Its combined nonlinearity and hysteresis of ±1% makes the EGAS well-suited for on-site testing as well as laboratory use.

Benefits

  • Miniature Design, Light Weight
  • DC Response, Critically Damped
  • 10,000 g Over-range Stops
  • Broad Temperature Range
  • 2-15Vdc Excitation Voltage
  • Weighs < 1 gram
  • Static and Dynamic Measurement
  • Frequency Response through 3500 Hz
  • 2% Transverse Sensitivity
  • Damping Ratio 0.7



orange bar

Applications

  • Sports and Recreation
  • Modeling and Entertainment
  • Biodynamics
  • Automotive Testing
  • Laboratory Usage
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Other

  • Non-Linearity (FSO) (%) ±.7

  • Acceleration Range (±) (g) 200, 2000, 50, 5, 500, 6000

  • Sensitivity (mV/g) 2, .9, .2, .45, .15, 20, .4, .1

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Operation/Application

  • Output Current Type  DC

Electrical Characteristics

  • Excitation Voltage Range (VDC) 2 – 10, 2 – 15

  • Zero Acceleration Output (mV) ±10, ±20

  • Full Scale Output Voltage (VDC) ±.25, ±.1

Usage Conditions

  • Operating Temperature Range (°C) -40 – 121, -40 – 120

  • Operating Temperature Range (°F) -40 – 250, -40 – 248

Body Features

  • Primary Product Material  Anodized Aluminum, Stainless Steel

  • Product Weight  1 g [ .035 oz ]

  • Number of Sensing Axes  Uniaxial

Configuration Features

  • Electrical Connection  Integral Cable

Industry Standards

  • IP Rating  IP62, IP66

Signal Characteristics

  • Frequency Response (Hz) 0-1900 to 0-7000, 0-2800, 0-1400 to 0-4500, 0-1900, 0-8000, 0-600 to 0-10000, 0-150

Mechanical Attachment

  • Sensor Mount Type  Adhesive, Screw Mount

Reference Number

  • TE Internal Number CAT-PPA0018
