Shock Testing Accelerometer

Shock Testing Accelerometer-CAT-PPA0022
  • MEAS
|
  • MEAS EGCS

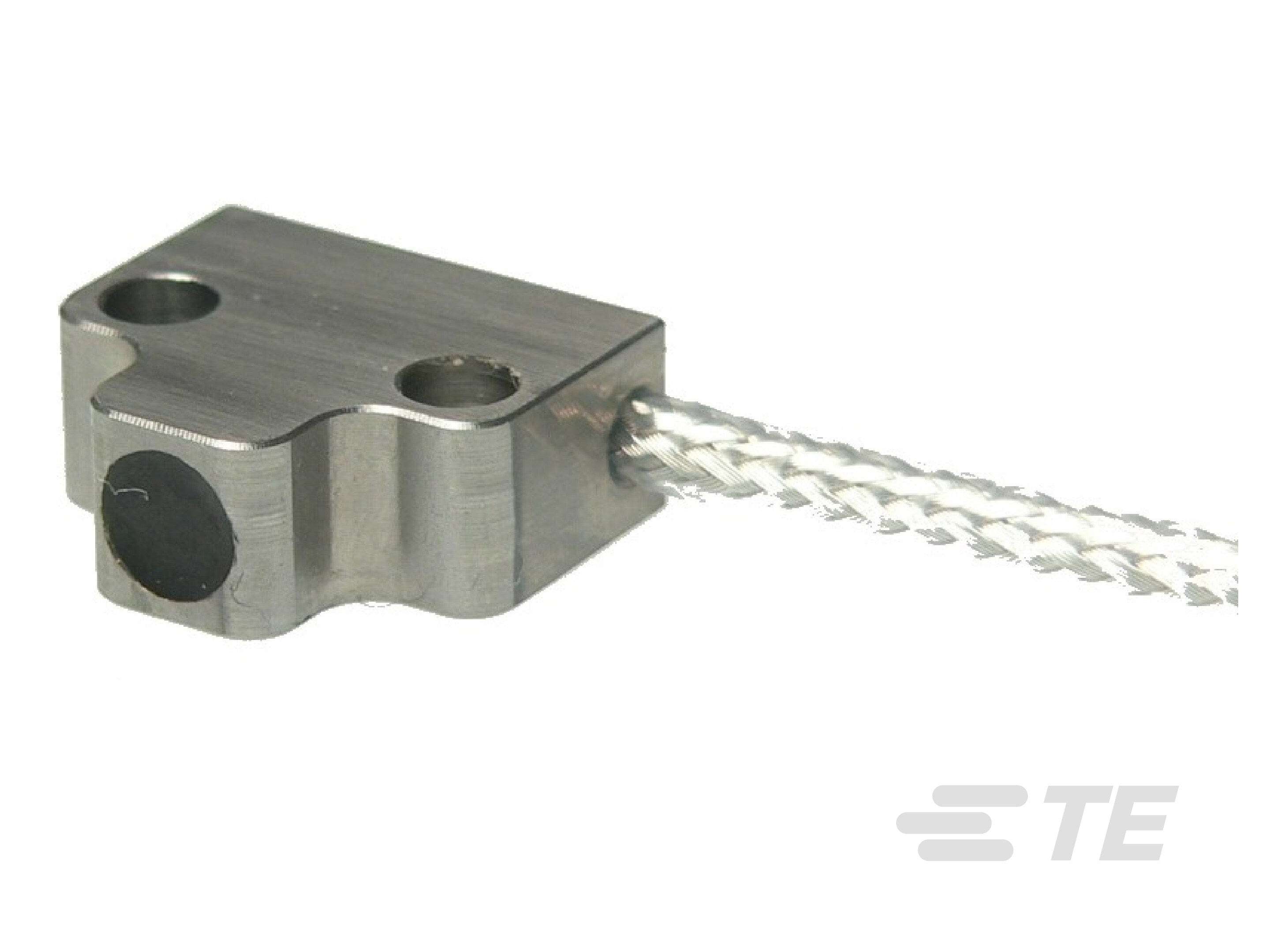

The Model EGCS-D5 accelerometer is critically damped with built-in over-range stops that are set to protect the unit against up to 20,000g shocks.
More Less

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-600 to 0-10000

  • Full Scale Output Voltage (VDC): ±.2

Available from

LADD Inc

Build and price the product now

Overview

This is ideal for applications which may experience rough handling or in situations where the accelerometer must survive a high initial overload in order to make a low g measurement. These units feature a Wheatstone Bridge output with compensated temperature range of +20 to +80ºC. An inline amplifier option is available for superior signal to noise performance.

BENEFITS

  • Rugged Piezoresistive Design
  • DC Response, Critically Damped
  • Fits Popular Shock Accelerometer
  • Mounting Bolt Pattern
  • ±50g to ±10,000g Dynamic Range
  • Heavy Duty, Rugged
  • Static and Dynamic Measurement
  • DC to 10,000Hz Frequency Response
  • ±1% Non-Linearity
  • -40ºC to +100ºC Temperature Range
  • Inline Amplifier Option



Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Body Features

  • Primary Product Material  Stainless Steel

  • Product Weight  6 g [ .21 oz ]

  • Number of Sensing Axes  Uniaxial

Electrical Characteristics

  • Zero Acceleration Output (mV) ±20

  • Excitation Voltage Range (VDC) 2 – 15

  • Full Scale Output Voltage (VDC) ±.2

Other

  • Non-Linearity (FSO) (%) ±1

  • Acceleration Range (±) (g) 100, 5000, 2500, 10000, 500, 250, 50, 1000

  • Sensitivity (mV/g) .04, .2, .4, 2, .08, .016, .8, 4

Usage Conditions

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]

Configuration Features

  • Electrical Connection  Integral Cable

Operation/Application

  • Output Current Type  DC

Industry Standards

  • IP Rating  IP65

Signal Characteristics

  • Frequency Response (Hz) 0-600 to 0-10000

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Reference Number

  • TE Internal Number CAT-PPA0022
