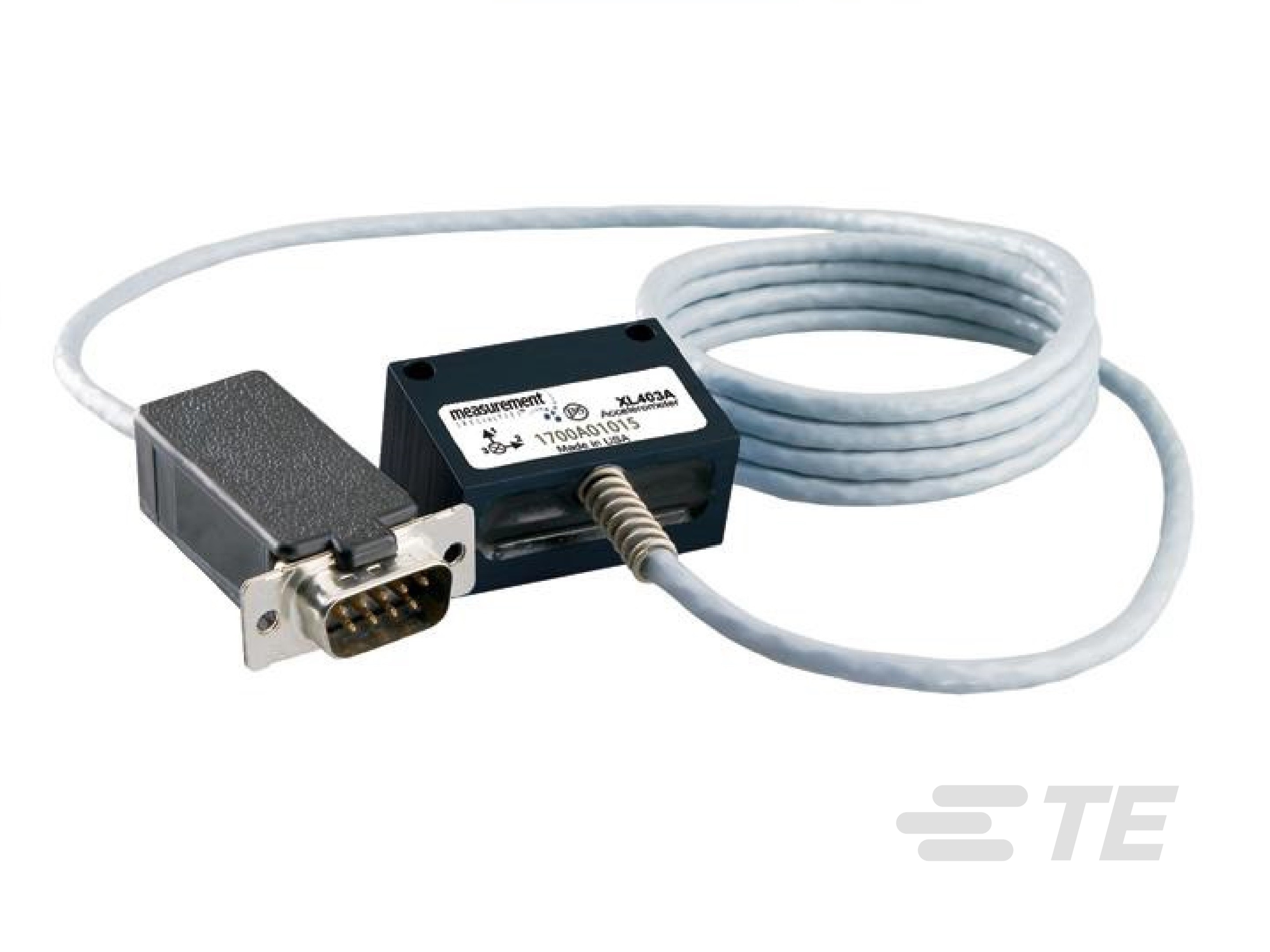

High Accuracy Accelerometer

High Accuracy Accelerometer-CAT-PPA0042
  • MEAS
|
  • MEAS XL403A
The XL403A is ready when you are. In stock and ready to ship, you can be taking measurements in less time than with built-to-order accelerometers.
More Less

Product Features

  • Accelerometer Type : MEMS DC

  • Vibration Sensor Product Type : MEMS Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 0-800

  • Full Scale Output Voltage (VDC): ±2

Available from

LADD Inc

Build and price the product now

Overview

The small size and built-in power regulation allow the XL403A to fit where other accelerometers can’t. Choose bandwidth up to 800 Hz and range options of ±1 g to ±15 g to measure accelerations on one, two or three axes. Tested over the -40 to +85°C temperature range, the accelerometers have a nominal full scale output swing of ±2 Volts. The zero g output level is nominally +2.5 Volts. Precise values are available on the included calibration certificate.

BENEFITS

  • Precision Alignment
  • High accuracy over a wide temperature
  • Calibration certificate included
  • Self-test on digital command
  • Small size
  • Built-in power supply regulation
  • Suitable for harsh environments

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  MEMS DC

  • Vibration Sensor Product Type  MEMS Accelerometer

Configuration Features

  • Electrical Connection  Integral Cable

Electrical Characteristics

  • Full Scale Output Voltage (VDC) ±2

  • Excitation Voltage Range (VDC) 8.5 – 36

  • Zero Acceleration Output (mV) 2500 ±10

Signal Characteristics

  • Frequency Response (Hz) 0-800

Body Features

  • Product Weight  38 g [ 1.33 oz ]

  • Primary Product Material  Anodized Aluminum

  • Number of Sensing Axes  Uniaxial

Mechanical Attachment

  • Sensor Mount Type  Screw Mount

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Output Current Type  DC

Other

  • Acceleration Range (±) (g) 1, 2, 3, 4, 5, 6, 10, 15

  • Sensitivity (mV/g) 133, 200, 333, 400, 500, 666, 1000, 2000

  • Non-Linearity (FSO) (%) ±.5

Reference Number

  • TE Internal Number CAT-PPA0042
