Miniature Stud Mount Accelerometer

Miniature Stud Mount Accelerometer-CAT-PPA0087
  • MEAS
|
  • MEAS 7109A

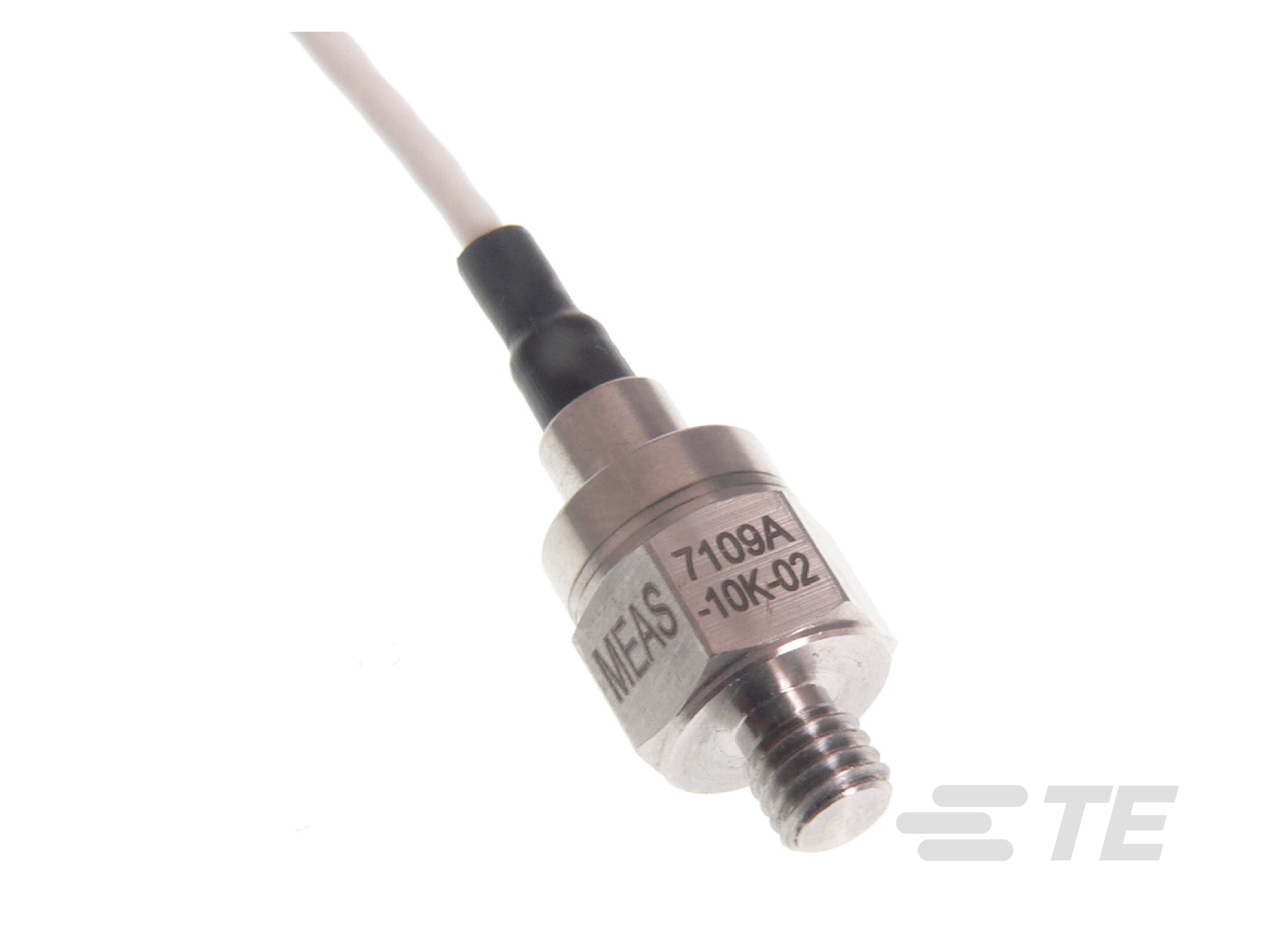

The Model 7109A is a miniature stud mount IEPE shock accelerometer available in ±5,000g to ±20,000g ranges.
More Less

Product Features

  • Accelerometer Type : IEPE

  • Vibration Sensor Product Type : Piezoelectric Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 2-10000

  • Full Scale Output Voltage (VDC): ±5

Available from

LADD Inc

Build and price the product now

Overview

The accelerometer features a welded hermetic stainless steel construction with an integral cable for electrical connection. The model 7109A incorporates a stable piezo-ceramic crystal in annular shear mode with outstanding linearity for shock measurements. The accelerometer has an operating range of 0°C to +85°C and a flat frequency response to >10kHz.

BENEFITS

  • ±5,000g to ±20,000g Dynamic Range
  • Welded Stainless Steel
  • Hermetically Sealed
  • 0°C to +85°C Operating Range
  • Annular Shear Mode
  • Case Isolated, Internally Shielded
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Package  Plug & Play

  • Accelerometer Type  IEPE

  • Vibration Sensor Product Type  Piezoelectric Accelerometer

Body Features

  • Primary Product Material  Stainless Steel

  • Product Weight  5 g [ .175 oz ]

  • Number of Sensing Axes  Uniaxial

Electrical Characteristics

  • Excitation Current (mA) 2 – 10

  • Excitation Voltage Range (VDC) 18 – 30

  • Full Scale Output Voltage (VDC) ±5

Other

  • Non-Linearity (FSO) (%) ±1

  • Acceleration Range (±) (g) 20000, 5000, 10000

  • Sensitivity (mV/g) .25, .5, 1

  • EU RoHS Compliance  Compliant

Usage Conditions

  • Operating Temperature Range  0 – 85 °C [ 32 – 185 °F ]

Configuration Features

  • Electrical Connection  Integral Cable

Operation/Application

  • Output Current Type  AC

Signal Characteristics

  • Frequency Response (Hz) 2-10000

Mechanical Attachment

  • Sensor Mount Type  Stud

Reference Number

  • TE Internal Number CAT-PPA0087
