Panel Mount Pressure Transducer

Panel Mount Pressure Transducer-CAT-PTT0042
  • AST4200

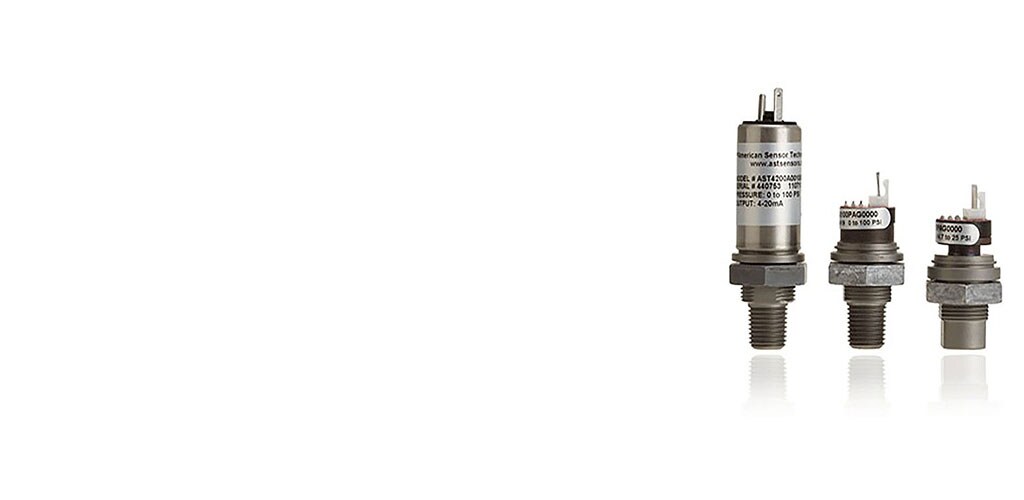

The AST4200 series panel mount pressure transducer offers the same features as the AST4000, but uses a unique pressure port design that enables direct mounting to panels without the use of an adapter.
More Less

Product Features

  • Pressure Sensor Type : Industrial Pressure Transducer

  • Pressure : 34.47 bar [ 500 psi ]

  • Pressure Type : Gauge

  • Supply Voltage Range (V): 10 – 28

  • Output Signal Type : 1 – 5 V

Available from

LADD Inc
Overview
The AST4200 series panel mount pressure transducer uses a unique pressure port design enables direct mounting to panels without the use of an adapter.

The AST4200 series panel mount pressure transducer's unique pressure port design allows for direct mounting to panels without the use of an additional adapter.

Benefits

  • High Strength Stainless Steel Construction
  • No Oil, Welds or Internal O-rings
  • Wide Operating Temperature
  • Pressures up to 10,000 PSI
  • Low Static and Thermal Errors
  • Unparalleled Price and Performance
  • Compatible with Wide Variety of Liquids and Gases
  • EMI/RFI Protection
  • UL/c Approved (with housing)
orange bar

Applications

  • Industrial OEM Equipment
  • Water Management
  • Pneumatics
  • Hydrogen Storage
  • Sub Sea Pressure
  • HVAC/R Equipment
  • Control Panels
  • Hydraulic Systems
  • Data Loggers
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  Industrial Pressure Transducer

  • Pressure Type  Gauge

Configuration Features

  • Electrical Connection  Packard Metripack 150

Electrical Characteristics

  • Supply Voltage Range (V) 10 – 28

Body Features

  • Port Material  17-4PH

Dimensions

  • Product Diameter  22.22 mm [ .875 in ]

  • Product Length  84.5 mm [ 3.33 in ]

Usage Conditions

  • Pressure  34.47 bar [ 500 psi ]

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Output Signal Type  1 – 5 V

  • Proof Pressure Range  2X, Min

  • Pressure Accuracy  ±0.5% FSO

Other

  • Sensor Options  No Option

  • Port Fitting  1/8 FNPT

Reference Number

  • TE Internal Number CAT-PTT0042
