This product is not currently available. For more information, including distributor inventory, please contact us.

View products below to see detailed pricing

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

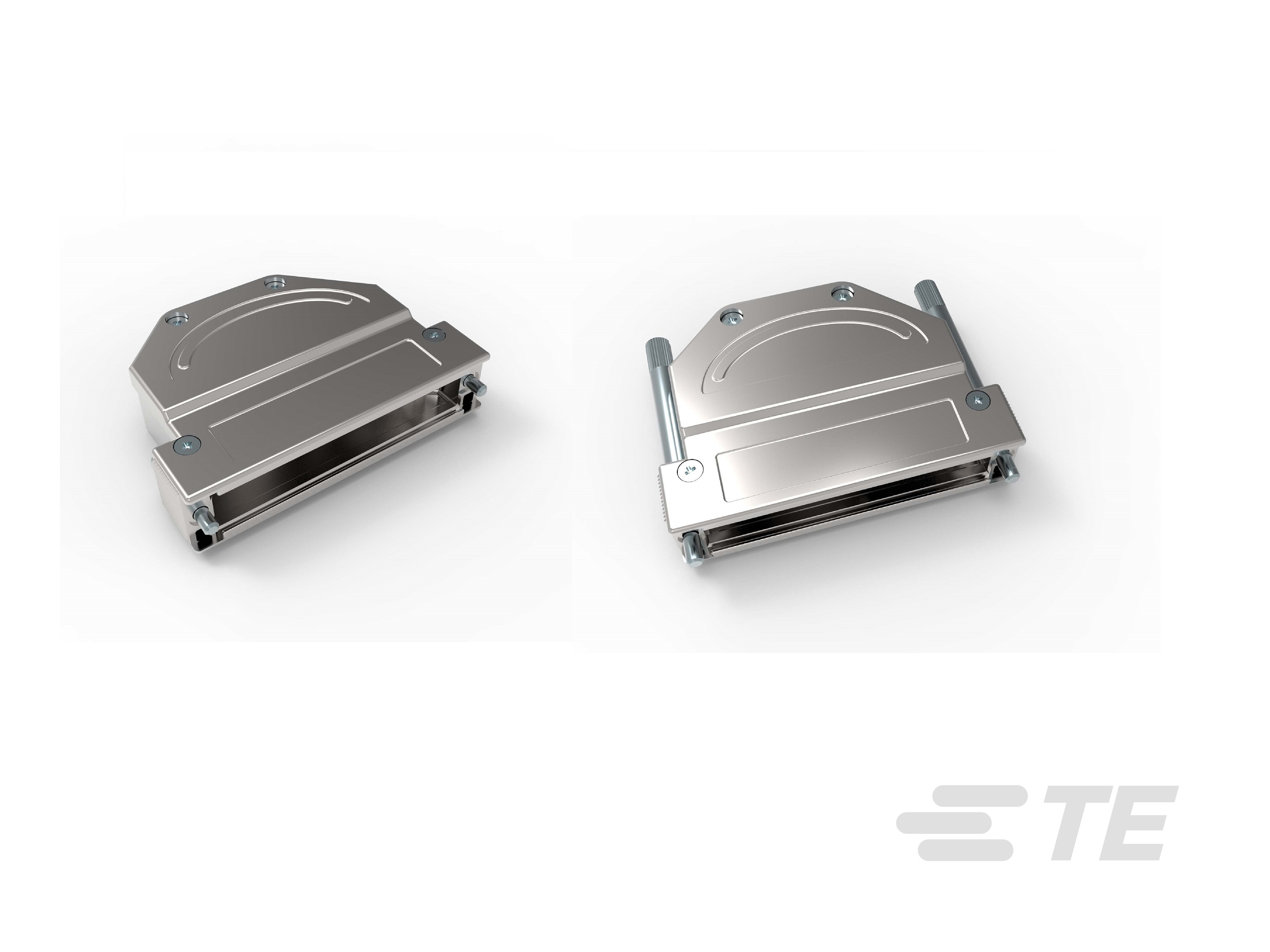

D-SUB BACKSHELL SIZE 4

D-SUB BACKSHELL SIZE 4-CAT-R131-D1C
  • Rail D-Sub Backshells
Ruggedized metal backshells for size 4 (37/62 positions) D-Subminiature connectors that allow for a fast easy installation and assembly thanks to a practical construction with a minimum number of single parts.
More Less

Product Features

  • Connector Backshell Product Style : Shielded

  • Connector Backshell Product Type : Backshell

  • Primary Product Material : Zinc

  • Body Orientation : Straight

  • Compatible With Connector Shell Size : 4

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Body Features

  • Cable Exit Angle  180°, 45°

  • Primary Product Material  Zinc

Mechanical Attachment

  • Mating Retention Type  Jackscrew

  • Thread Size  M3, 4-40 UNC

Industry Standards

  • UL Flammability Rating  UL 94V-0

Product Type Features

  • Connector Backshell Product Style  Shielded

  • Connector Backshell Product Type  Backshell

  • Sealable  No

  • Termination Device Type  Crimp Ferrule

Housing Features

  • Body Orientation  Straight

  • Compatible With Connector Shape  D-Shaped

Operation/Application

  • Compatible With Connector Shell Size  4

Configuration Features

  • Number of Positions  62, 37

Usage Conditions

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-R131-D1C
