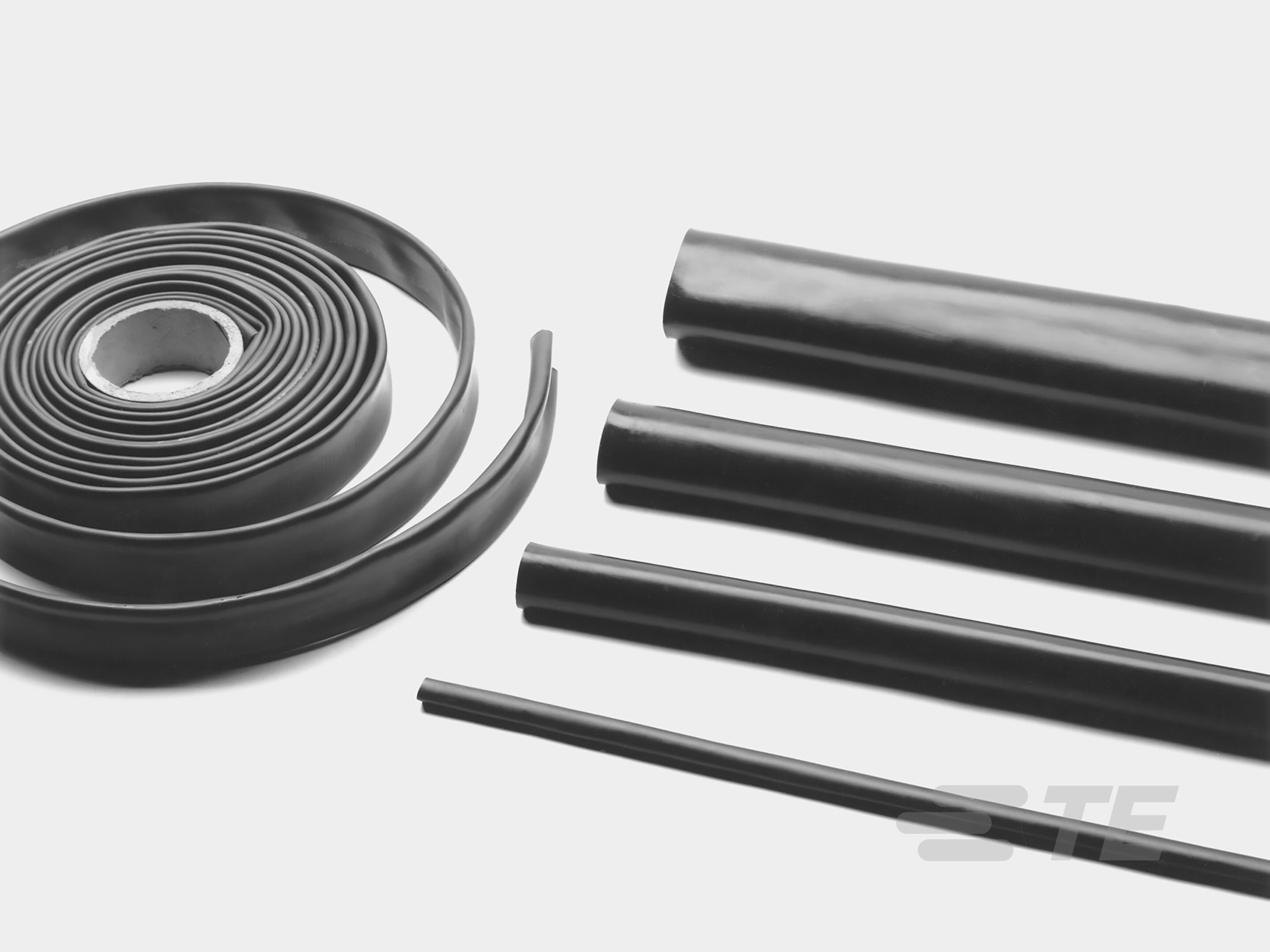

Single Wall RT 770: Heat Shrink Tubing, 2:1 Shrink Ratio

Single Wall RT 770: Heat Shrink Tubing, 2:1 Shrink Ratio-CAT-R21-T7907237
RT-770 single wall heat shrink tubing made of crosslinked fluoroelastomer material and is available in black color with an operating temperature of -55 – 125 DEGC. It has a shrink ratio of 2:1.
More Less

Product Features

  • Tubing Product Type : Heat Shrink Tubing

  • Primary Product Color : Black

  • Shrink Ratio : 2:1

  • Wall Type : Single Wall

  • Recovered Inside Diameter (Max) (mm): 7.95, 12.7, 2.37, 4.74, 15.87, 1.59, 6.4, 19.05, 3.17, 4.75

  • Recovered Inside Diameter (Max) (in): .186, .094, .187, .313, .25, .124, .75, .5, .063, .625

Available from

LADD Inc
Overview
MDP Contact Us

Need help finding the right product or technical document?

We're here to help. Connect with one of our engineers today to get the product information or pricing you need.
Features

Please review product documents or contact us for the latest agency approval information.

Body Features

  • Fluid Type  Military Decontaminating Agents, Aviation Fuel, Chemicals/Solvents, Hydraulic Fluid, De-Icing Fluid, Lubricating Oil, Diesel Fuel, Water, Brake Fluid

  • Material Systems Code  770

  • Primary Product Color  Black

  • Shrink Ratio  2:1

  • Primary Product Material  Crosslinked Fluoroelastomer

  • Flexibility  Flexible

Usage Conditions

  • Resistance Properties  Moisture

  • Shrink Temperature (Min) (°C) 150

  • Tubing Flammability Type  Highly Flame-Retardant, Flame-Retardant

  • Operating Temperature Range (°C) -55 – 125

  • Recovery Temperature (°C) 150

Dimensions

  • Recovered Wall Thickness (Nominal) (mm) .08, .99

  • Recovered Wall Thickness (Nominal) (in) .037, .003

  • Recovered Inside Diameter (Max) (mm) 7.95, 12.7, 2.37, 4.74, 15.87, 1.59, 6.4, 19.05, 3.17, 4.75

  • Recovered Inside Diameter (Max) (in) .186, .094, .187, .313, .25, .124, .75, .5, .063, .625

  • Expanded Inside Diameter (Min) (mm) 31.75, 9.53, 15.9, 9.5, 6.35, 12.7, 25.4, 3.17, 38.1, 4.74

  • Expanded Inside Diameter (Min) (in) .25, .374, .187, .5, 1, 1.5, .625, .125, 1.25

  • Tubing Size Range (mm) 1.59 – 3.17, 4.74 – 9.53, 19.05 – 38.1, 7.93 – 11.13, 3.17 – 4.45, 2.37 – 4.74, 15.87 – 31.75, 12.7 – 25.4, 4.75 – 9.5, 6.4 – 12.7

  • Tubing Size Range (in) .312 – .435, .75 – 1.5, .187 – .374, .5 – 1, .063 – .125, .186 – .374, .25 – .5, .125 – .175, .625 – 1.25, .094 – .187

Product Type Features

  • Tubing Product Type  Heat Shrink Tubing

  • Wall Type  Single Wall

Packaging Features

  • Packaging Method  Piece

Operation/Application

  • Mechanical Resistance  Fluids, Radiation, Hydrocarbons, Strain Relief

Product Availability

  • Applicable Region  Worldwide

Other

  • Meets Low Outgassing Requirements  No

  • Product Source  US

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-R21-T7907237
