3 OUTPUT RATE SENSOR / 3 ACCELEROMETER

3 OUTPUT RATE SENSOR / 3 ACCELEROMETER-CAT-RIN0008
  • MEAS
|
  • MEAS 634

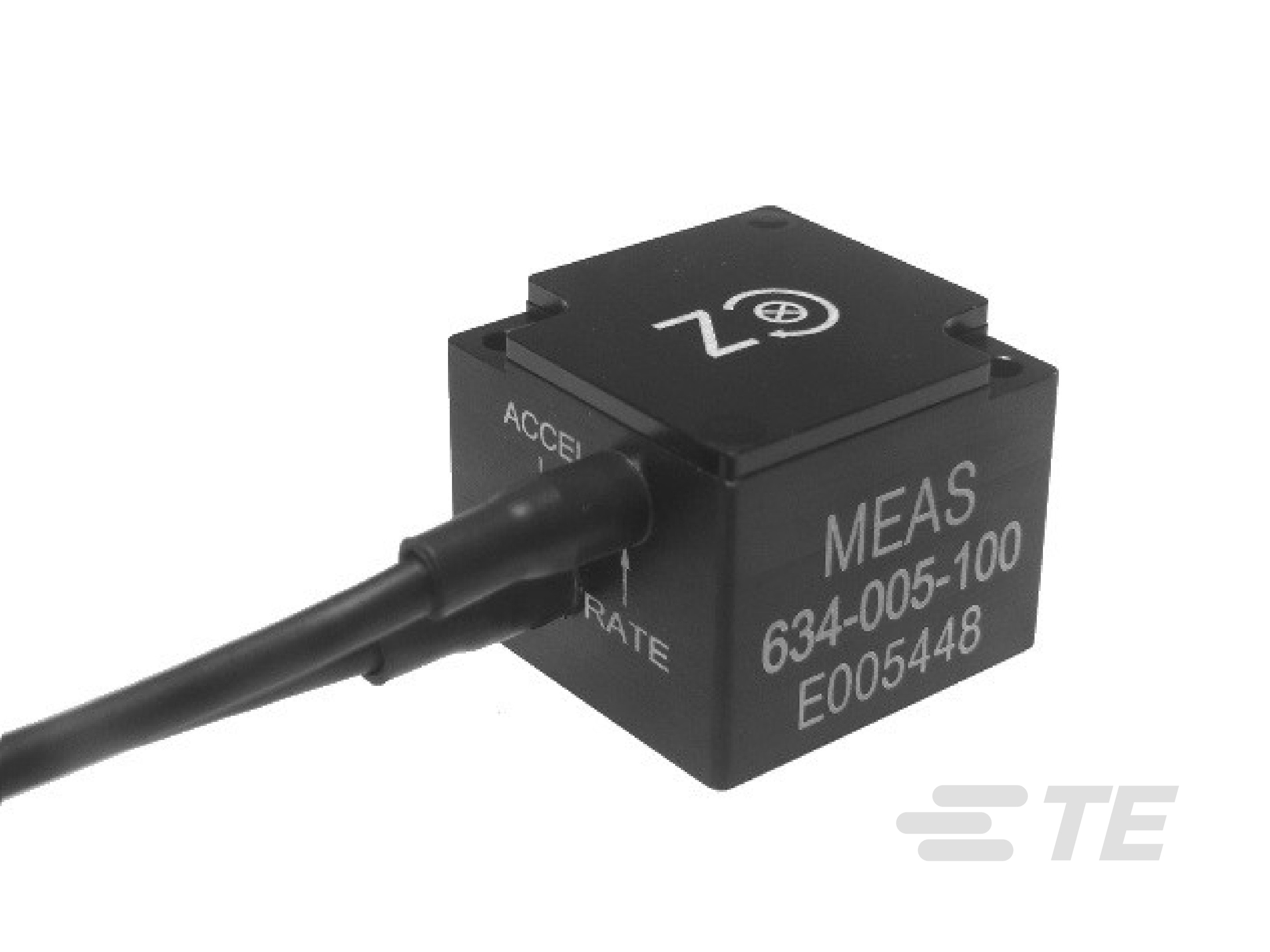

The Model 634 6-DOF Sensor is an analog sensor that includes outputs of three gyroscope/rate sensors and three DC Accelerometers in one small package.
More Less

Product Features

  • Rate & Inertial Sensor Type : Rate Sensors/Gyros

  • Case Material : Anodized Aluminium

  • EU RoHS Compliance : Compliant, Compliant with Exemptions

  • EU ELV Compliance : Compliant with Exemptions

Available from

LADD Inc
Overview

The rate sensors and accelerometers are aligned ortho-gonally to each other which allow the user to measure motions in all 6 degrees of freedom (6-DOF).  Designed specifically for product research and development in harsh environments, the Model 634 can maintain its precision under high shock condition.

BENEFITS

  • Low Noise Jacketed Cables
  • Rugged Integral Strain Relief
  • Reliable Silicon MEMS Sensors
  • -40 to +105°C Temperature Range
  • Shock Resistant Package
  • Low Cross-Axis Sensitivity
  • Exceptional Temperature Performance

APPLICATIONS

  • Automotive Handling Testing
  • Motorsports Applications
  • Biomechanics Testing
  • Shock & Impact Testing
  • Motion Measurements
  • Flight Testing
Features

Please review product documents or contact us for the latest agency approval information.

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Other

  • FS Range (±) G  2, 100, 20, 30, 10, 5

  • FS Range (±) DEG/SEC  1000, 500, 6000, 100

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Product Type Features

  • Accuracy (%) ±.5

  • Rate & Inertial Sensor Type  Rate Sensors/Gyros

Dimensions

  • Product Height (mm) 24.6

  • Product Length (mm) 30.5

  • Product Width (mm) 30.5

Electrical Characteristics

  • Excitation Voltage Range (VDC) 4.9 – 16, 5 – 16

Body Features

  • Case Material  Anodized Aluminium

Reference Number

  • TE Internal Number CAT-RIN0008
