Ave RTD Probe w Compression Fitting
Product Features
-
RTD Sensor Type : Averaging Probe
-
Element Type : Stainless Steel
-
Element Material : Platinum
-
Lead Wire Style : PTFE
-
Operating Temperature (Max) : 200 °C [ 392 °F ]

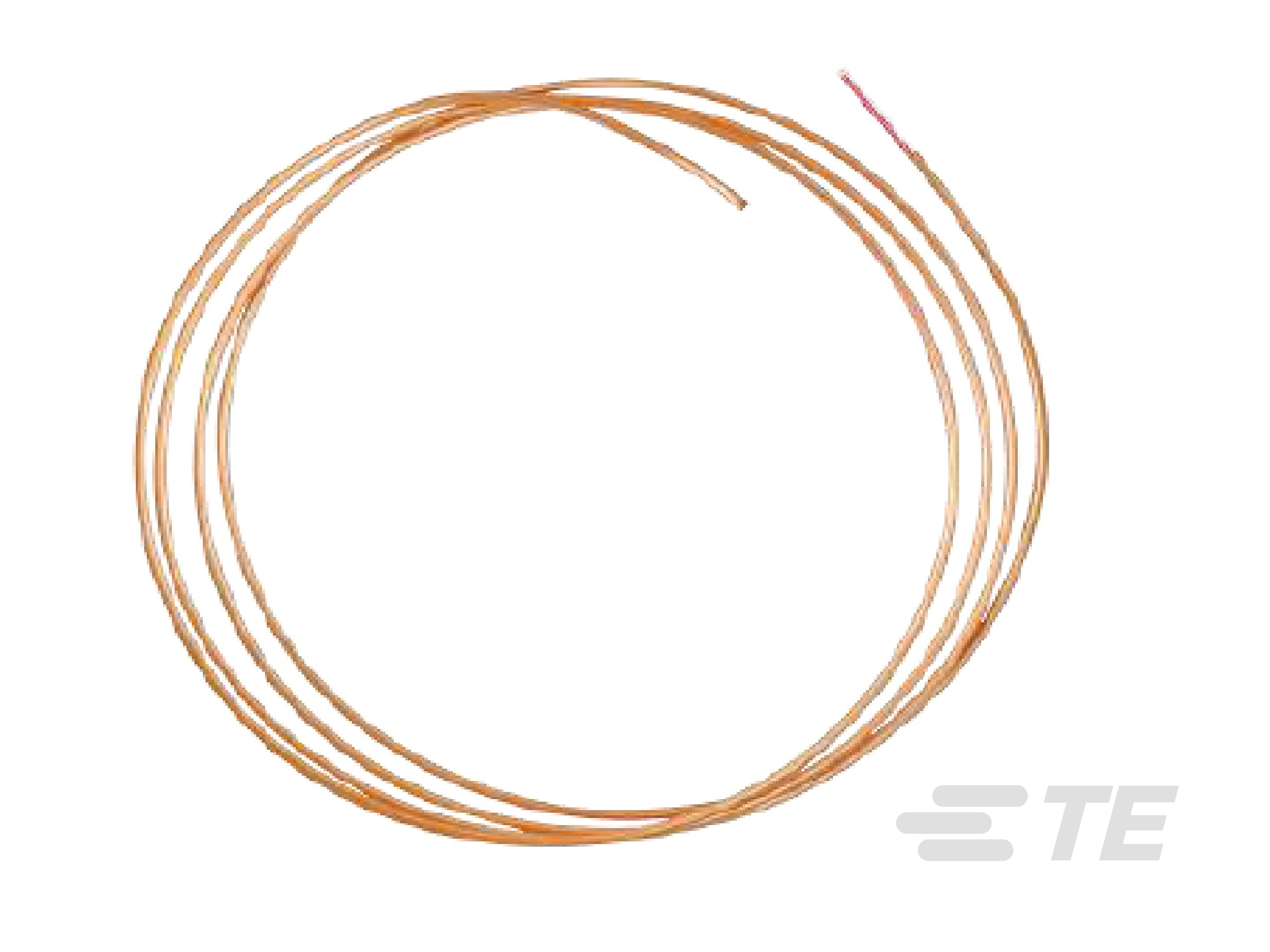

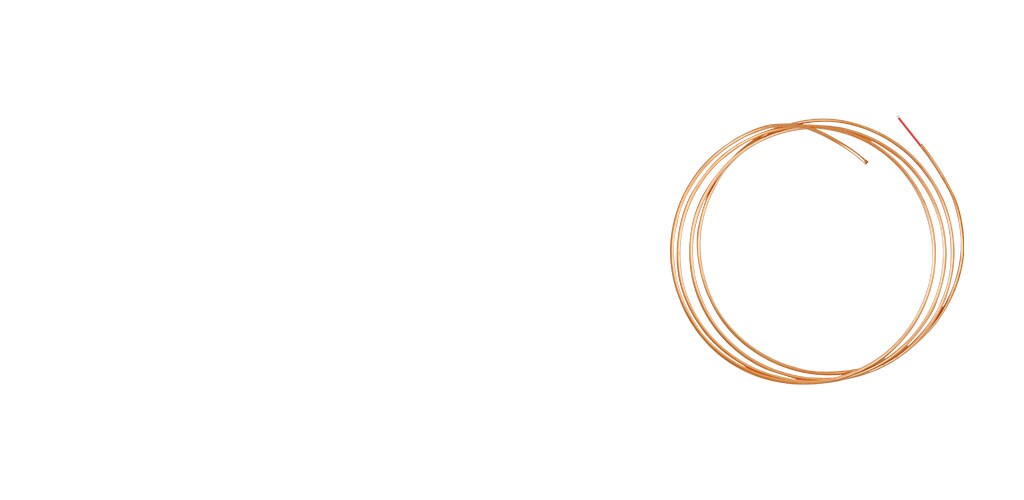

The 511M series compression fitting averaging RTD probe is designed for use in and around intake manifolds and heating/cooling coils in HVAC systems.
The flexible sheath has a sensitive area that is equal to its overall length. This provides an average temperature of the air as it moves through the system. Acquiring the average air temperature over a large area of airflow can provide more consistent temperature control throughout the system. This RTD probe sensor also eliminates the need for multiple sensors and instrumentation. Mounting these sensors can easily be achieved by using either our fixed or adjustable fittings. Connection heads and conduit boxes are available for a seamless transition to instrumentation.
Benefits
- Sheath Styles: Stainless Steel, Copper, Aluminum
- Elements, Single: Platinum or Simulated Platinum
- Sheath Diameter: 0.250”
- Adjustable Compression Fitting: 1/2” x 1/2” NPT
- Leadwire/Cable Options
- Averages Temperature
- Flexible Sheath
- Connection Heads Available
- Transmitters Available
Applications
- HVACR
Frequently Asked Questions
Q: What is an RTD?
A: An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance versus temperature relationship is well known and is repeatable over time. An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.
Read More: Understanding RTDs
Q: What is the standard resistance of a platinum RTD?
A: Download the PDF: RTD Resistance Temperature Table Application Note
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
RTD Sensor Type Averaging Probe
-
Element Type Stainless Steel
-
Element Material Platinum
-
Lead Wire Style PTFE
Usage Conditions
-
Operating Temperature (Max) 200 °C [ 392 °F ]
Reference Number
-
TE Internal Number CAT-RTD0018
Datasheets & Catalog Pages
- TESS-ANDO-408-0000069 English
