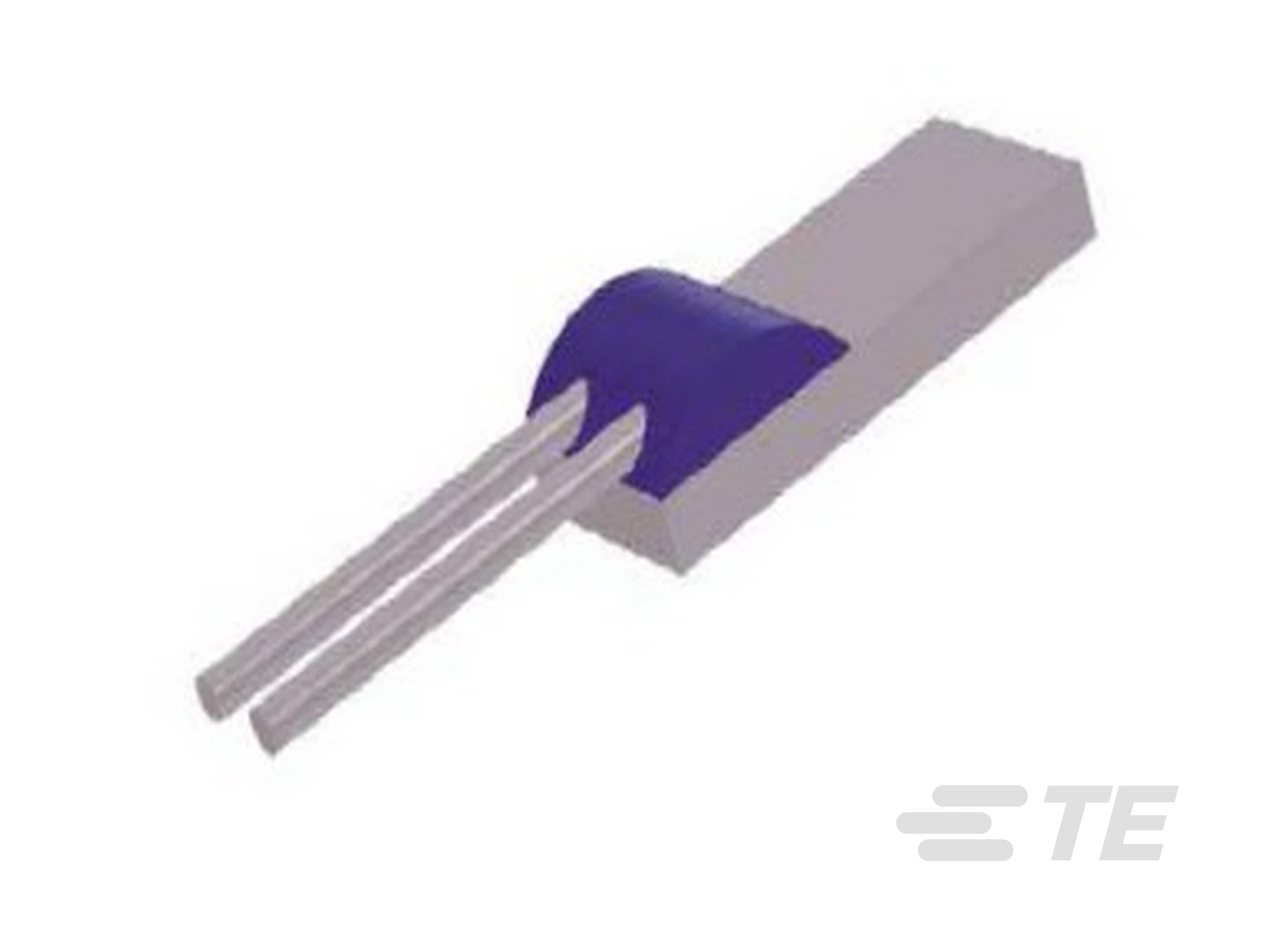

RTD Sensor Thin Film Element
Product Features
-
RTD Sensor Type : Thin Film
-
Element Type : Ceramic Chip
-
Element Material : Platinum
-
Lead Wire Style : Bare Leads
-
Operating Temperature (Max) : 600 °C [ 1112 °F ]
The thin film element RTD sensor is composed of platinum deposited on a ceramic substrate, then coated with glass.
Benefits
- Thin, Flat, Small
- Two-Wire
- Mechanical Robustness
- Temperature Range: -200°C to 600°C
- Platinum Element Configuration: 100 Ohm, 1,000 Ohm; Accuracy at 0°C: ±.06%, ±.12%
- Nickel Element Configuration: 120 Ohm; Accuracy at 0°C: ±.5%
Applications
- Process
- Aerospace
- Defense
- Hot Melt
- Motor/Generator
Frequently Asked Questions
Q: What is an RTD?
A: An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance versus temperature relationship is well known and is repeatable over time. An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.
Read More: Understanding RTDs
Q: What is the standard resistance of a platinum RTD?
A: Download the PDF: RTD Resistance Temperature Table Application Note
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
RTD Sensor Type Thin Film
-
Element Type Ceramic Chip
-
Element Material Platinum
-
Lead Wire Style Bare Leads
Usage Conditions
-
Operating Temperature (Max) 600 °C [ 1112 °F ]
Reference Number
-
TE Internal Number CAT-RTD0045
Datasheets & Catalog Pages
- TESS-ANDO-DS0096 English
