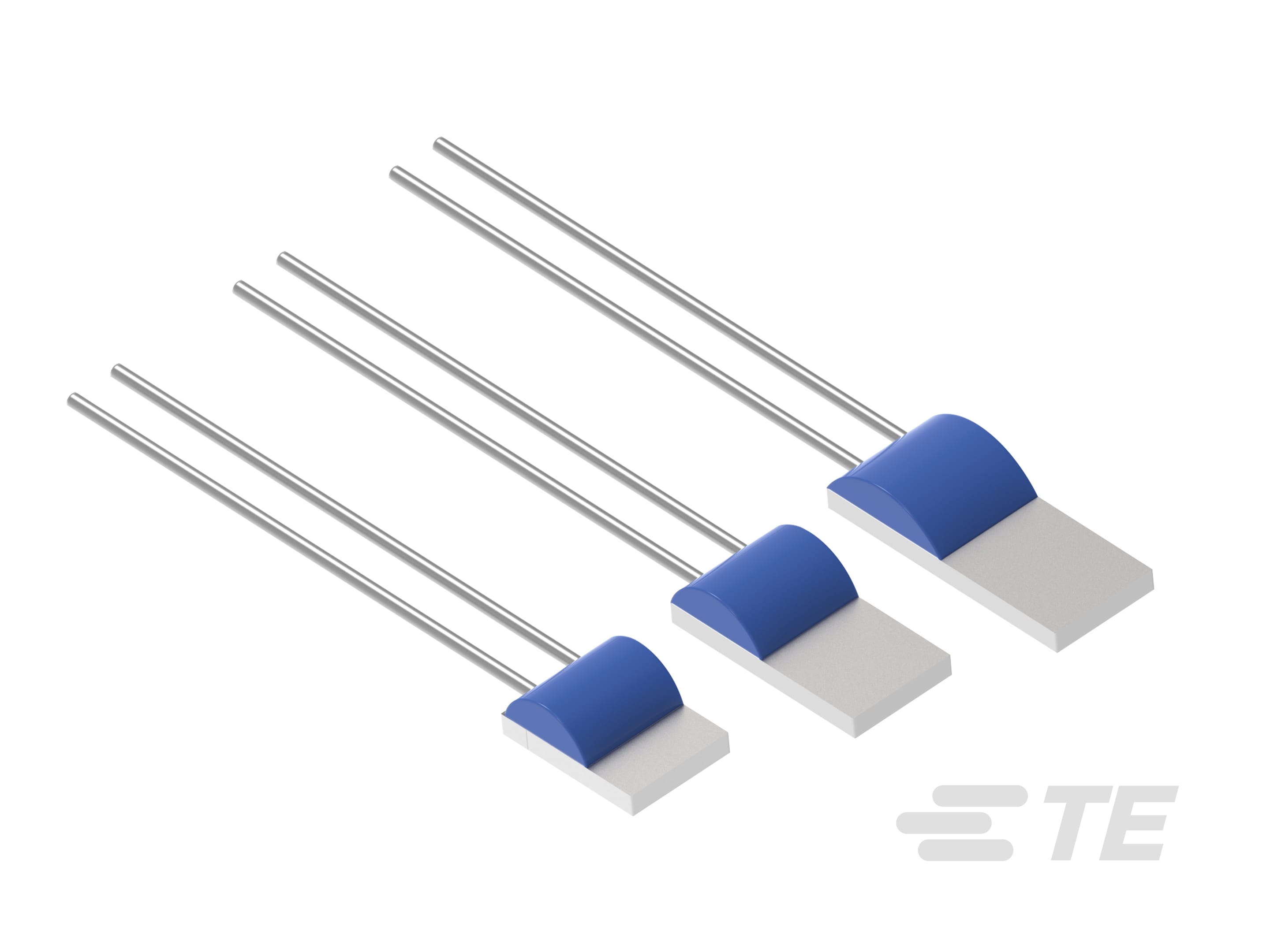

Pt1000 RTD Thin Film Element

The Pt1000 RTD thin film element is an RTD sensor with a base resistance value of 1000 Ohms at 0°C. Complies with DIN EN 60751.

More Less

Datasheet |
Digital Datasheet|

Product Features

Operating Temperature Range (°C): -200 – 200, -30 – 200, -30 – 300, -50 – 300, -50 – 600
Operating Temperature Range (°F): -22 – 572, -58 – 572, -22 – 392, -328 – 392, -58 – 1112
Accuracy (at T_ref) (°C): ± .3, ± .1, ± .15, ± .6
Wire Count : 2
Operating Temperature (Max) (°C): 300, 200, 600
Operating Temperature (Max) (°F): 572, 392, 1112
Tolerance Class : Class B / F0.3, Class T (AA) / F0.1, Class A / F0.15, Class C / F0.6

Available from

Product	TE Part #	Documents	Tolerance Class	Lead Wire Style	Operating Temperature (Max)
Pt1000, 2.0x2.3, Class B, PTFC102BC1G0	NB-PTCO-295	3D PDF	Class B / F0.3	Ni/Au	200 °C
Pt1000, 2.0x2.3, Class A, PTFC102A1G0	NB-PTCO-029	3D PDF	Class A / F0.15	Ni/Au	300 °C
Pt1000, 2.0x2.3, Class B, PTFC102B1G0 Buy on te.com	NB-PTCO-006	3D PDF	Class B / F0.3	Ni/Au	600 °C
Pt1000, 1.2x4.0, Class T, PTFM102T1A0	NB-PTCO-193	3D PDF	Class T (AA) / F0.1	Ag	200 °C
Pt1000, 2.0x2.3, Class C, PTFC102C1G0	NB-PTCO-046	3D PDF	Class C / F0.6	Ni/Au	600 °C
Pt1000, 2.0x5.0, Class T, PTFD102T1A0	NB-PTCO-151	3D PDF	Class T (AA) / F0.1	Ag	200 °C
Pt1000, 2.0x2.3, Class T, PTFC102T1A0 Buy on te.com	NB-PTCO-165	3D PDF	Class T (AA) / F0.1	Ag	200 °C
Pt1000, 1.2x4.0, Class C, PTFM102C1A0	NB-PTCO-190	3D PDF	Class C / F0.6	Ag	300 °C
Pt1000, 2.0x5.0, Class B, PTFD102B1A0 Buy on te.com	NB-PTCO-035	3D PDF	Class B / F0.3	Ag	300 °C
Pt1000, 1.2x4.0, Class A, PTFM102A1G0 Buy on te.com	NB-PTCO-050	3D PDF	Class A / F0.15	Ni/Au	300 °C
Pt1000, 2.0x5.0, Class B, PTFD102B1G0 Buy on te.com	NB-PTCO-126	3D PDF	Class B / F0.3	Ni/Au	600 °C
Pt1000, 2.0x5.0, Class T, PTFD102T1G0	NB-PTCO-150	3D PDF	Class T (AA) / F0.1	Ni/Au	200 °C
Pt1000, 2.0x2.3, Class T, PTFC102T1G0 Buy on te.com	NB-PTCO-154	3D PDF	Class T (AA) / F0.1	Ni/Au	200 °C
Pt1000, 2.0x2.3, Class B, PTFC102B1A0	NB-PTCO-157	3D PDF	Class B / F0.3	Ag	300 °C
Pt1000, 2.0x2.3, Class C, PTFC102C1A0	NB-PTCO-163	3D PDF	Class C / F0.6	Ag	300 °C
Pt1000, 2.0x2.3, Class A, PTFC102A1A0 Buy on te.com	NB-PTCO-164	3D PDF	Class A / F0.15	Ag	300 °C
Pt1000 ,2.0x5.0, Class C, PTFD102C1G0	NB-PTCO-167	3D PDF	Class C / F0.6	Ni/Au	600 °C
Pt1000, 2.0x5.0, Class A, PTFD102A1G0 Buy on te.com	NB-PTCO-168	3D PDF	Class A / F0.15	Ni/Au	300 °C
Pt1000, 2.0x5.0, Class C, PTFD102C1A0	NB-PTCO-169	3D PDF	Class C / F0.6	Ag	300 °C
Pt1000, 2.0x5.0, Class A, PTFD102A1A0 Buy on te.com	NB-PTCO-170	3D PDF	Class A / F0.15	Ag	300 °C
Pt1000, 2.0x4.0, Class B, PTFF102B1A0	NB-PTCO-182	3D PDF	Class B / F0.3	Ag	300 °C
Pt1000, 1.2x4.0, Class C, PTFM102C1G0	NB-PTCO-189	3D PDF	Class C / F0.6	Ni/Au	600 °C
Pt1000, 1.2x4.0, Class B, PTFM102B1A0	NB-PTCO-191	3D PDF	Class B / F0.3	Ag	300 °C
Pt1000, 1.2x4.0, Class A, PTFM102A1A0 Buy on te.com	NB-PTCO-192	3D PDF	Class A / F0.15	Ag	300 °C
Pt1000, 2.0x4.0, Class B, PTFF102B1G0	NB-PTCO-101	3D PDF	Class B / F0.3	Ni/Au	600 °C
Pt1000, 1.2x4.0, Class B, PTFM102B1G0 Buy on te.com	NB-PTCO-012	3D PDF	Class B / F0.3	Ni/Au	600 °C
Pt1000, 1.2x4.0, Class T, PTFM102T1G0 Buy on te.com	NB-PTCO-153	3D PDF	Class T (AA) / F0.1	Ni/Au	200 °C

Overview

Benefits

Complies with DIN EN 60751
Wide operating temperature range: -50°C to +600°C (Ni/Au wire and Class F 0.3, Ag-Wire versions are limited to 300°C)
Standard base resistance at 0°C: 1000Ω
Class F 0.1 (T = AA), F 0.15 (A), F 0.3 (B) and F 0.6 (C) options
Variety of standard outline dimensions available to fit a wide range of space requirements
Global interchangeability

Applications

FAQ

For more information, please visit "Frequently Asked Questions for Platinum RTD Thin Film Elements".

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

RTD Element Type Platinum Thin Film Temperature Element
Lead Wire Style Ag, Ni/Au
Wire/Cladding Type Ag, Ni/Au
Element Type Ceramic
Element Material Platinum

Configuration Features

Electrical Connection Open Ends

Mechanical Attachment

Wire Length 10 mm [ .393 in ]

Dimensions

Body Length (mm) 2.3, 4, 5
Body Length (in) .09, .157, .197
Body Width (mm) 1.2, 2
Body Width (in) .047, .078
Body Height (mm) .4, 1.1
Body Height (in) .015, .043
Wire Diameter (mm) .2, .25, .3
Wire Diameter (in) .007, .009, .011

Usage Conditions

Operating Temperature Range (°C) -200 – 200, -50 – 300, -50 – 600, -30 – 200, -30 – 300
Operating Temperature Range (°F) -328 – 392, -58 – 572, -58 – 1112, -22 – 572, -22 – 392
Accuracy (at T_ref) (°C) ± .3, ± .1, ± .15, ± .6
Operating Temperature (Max) (°C) 200, 300, 600
Operating Temperature (Max) (°F) 392, 572, 1112
T1 and T2 for TCR (°C) 0 and +100
TCR at (T1 and T2) (ppm/°C) 3850

Other

Wire Count 2
Tolerance Class Class B / F0.3, Class T (AA) / F0.1, Class A / F0.15, Class C / F0.6

Reference Number

TE Internal Number CAT-RTD0048

Related Materials

Datasheets & Catalog Pages

Datasheet PTF-Family PTFC,PTFD,PTFF,PTFM pdf English

Pt1000 RTD Thin Film Element

Product Features

Operating Temperature Range (°C): -200 – 200, -30 – 200, -30 – 300, -50 – 300, -50 – 600

Operating Temperature Range (°F): -22 – 572, -58 – 572, -22 – 392, -328 – 392, -58 – 1112

Accuracy (at T_ref) (°C): ± .3, ± .1, ± .15, ± .6

Wire Count : 2

Operating Temperature (Max) (°C): 300, 200, 600

Operating Temperature (Max) (°F): 572, 392, 1112

Tolerance Class : Class B / F0.3, Class T (AA) / F0.1, Class A / F0.15, Class C / F0.6

Benefits

Applications

Product Type Features

RTD Element Type Platinum Thin Film Temperature Element

Lead Wire Style Ag, Ni/Au

Wire/Cladding Type Ag, Ni/Au

Element Type Ceramic

Element Material Platinum

Configuration Features

Electrical Connection Open Ends

Mechanical Attachment

Wire Length 10 mm [ .393 in ]

Dimensions

Body Length (mm) 2.3, 4, 5

Body Length (in) .09, .157, .197

Body Width (mm) 1.2, 2

Body Width (in) .047, .078

Body Height (mm) .4, 1.1

Body Height (in) .015, .043

Wire Diameter (mm) .2, .25, .3

Wire Diameter (in) .007, .009, .011

Usage Conditions

Operating Temperature Range (°C) -200 – 200, -50 – 300, -50 – 600, -30 – 200, -30 – 300

Operating Temperature Range (°F) -328 – 392, -58 – 572, -58 – 1112, -22 – 572, -22 – 392

Accuracy (at T_ref) (°C) ± .3, ± .1, ± .15, ± .6

Operating Temperature (Max) (°C) 200, 300, 600

Operating Temperature (Max) (°F) 392, 572, 1112

T1 and T2 for TCR (°C) 0 and +100

TCR at (T1 and T2) (ppm/°C) 3850

Other

Wire Count 2

Tolerance Class Class B / F0.3, Class T (AA) / F0.1, Class A / F0.15, Class C / F0.6

Reference Number

TE Internal Number CAT-RTD0048
