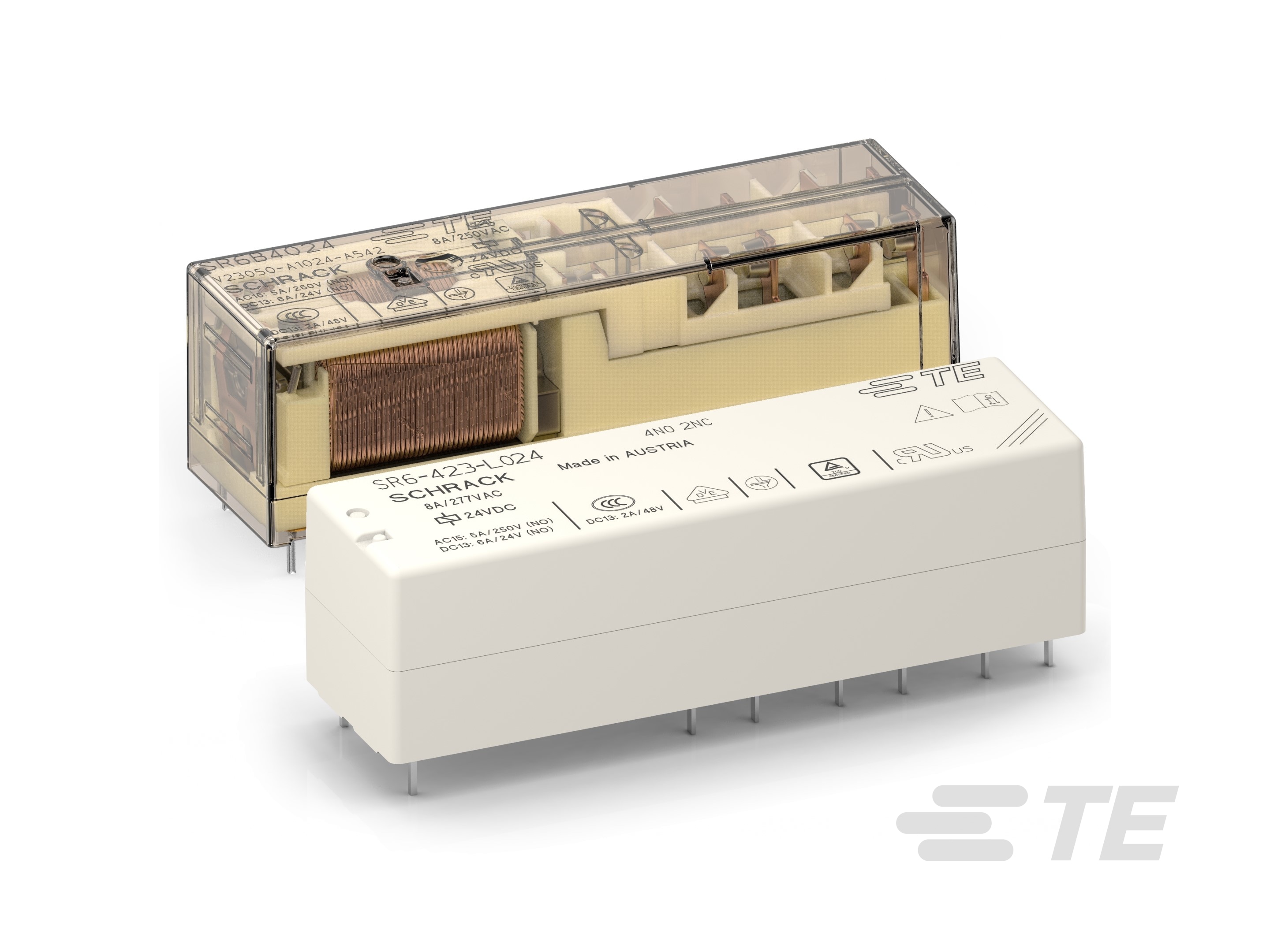

Force Guided Relay with 6 contacts

SR6 with 6 force guided contacts according to IEC/EN 61810-3, PCB mount, low height, safety application.

More Less

Datasheet |
Digital Datasheet|

Product Features

Relay & Contactor Type : Force-Guided Relay
Current Type : DC
Coil Magnetic System : Monostable
Contact Arrangement : 4A (NO) + 2B (NC), 3A (NO) + 3B (NC), 5A (NO) + 1B (NC)
Contact Current Rating (A): 8

Available from

Product	TE Part #	Documents	Coil Magnetic System	Contact Arrangement	Current Type	Coil Voltage Rating	Contact Voltage Rating	Contact Voltage Rating	Coil Power Rating DC	Main Termination & Connection Type	Coil Termination & Connection Type	Enclosure Type	Environmental Ambient Temperature (Max)	Height Class (Mechanical)	Length Class (Mechanical)	Width Class (Mechanical)	Insulation Initial Dielectric Between Contacts & Coil	EU RoHS Compliance	EU ELV Compliance
SR6C4110 - V23050-A1110-A551 Buy on te.com	5-1415019-1	3D PDF	-	5A (NO) + 1B (NC)	-	110 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C6K24	9-1415537-4	3D PDF	-	5A (NO) + 1B (NC)	-	24 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C6K12	9-1415537-0	3D PDF	-	5A (NO) + 1B (NC)	-	12 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L005	2-1558736-1	3D PDF	Monostable	3A (NO) + 3B (NC)	DC	5 VDC	277 VAC	300 VDC	.7 W	Solder Pins	Solder Pins	-	-	-	-	-	-	Compliant	Compliant
SR6B6K12	7-1415537-6	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L060	1-1558737-3	3D PDF	-	4A (NO) + 2B (NC)	-	60 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4040 - V23050-A1040-A542	1393260-9	3D PDF	-	4A (NO) + 2B (NC)	-	40 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-516-L024	2-1558738-8	3D PDF	-	5A (NO) + 1B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4021 - V23050-A1021-A533	3-1415018-1	3D PDF	-	3A (NO) + 3B (NC)	-	21 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6K12	6-1415537-1	3D PDF	-	3A (NO) + 3B (NC)	-	12 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L005	1558737-1	3D PDF	-	4A (NO) + 2B (NC)	-	5 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-513-L018	1558738-6	3D PDF	-	5A (NO) + 1B (NC)	-	18 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L012	2-1558737-4	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L018	2-1558737-6	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B6K24 Buy on te.com	8-1415537-0	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6L10	7-1415537-1	3D PDF	-	3A (NO) + 3B (NC)	-	110 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4048 - V23050-A1048-A542	1-1393260-0	3D PDF	-	4A (NO) + 2B (NC)	-	48 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L024	2-1558736-8	3D PDF	-	3A (NO) + 3B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6K05	5-1415537-8	3D PDF	-	3A (NO) + 3B (NC)	-	5 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4085 - V23050-A1085-A542	1-1393260-2	3D PDF	-	4A (NO) + 2B (NC)	-	85 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4110 - V23050-A1110-A533 Buy on te.com	9-1415018-1	3D PDF	-	3A (NO) + 3B (NC)	-	110 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L021	2-1558736-7	3D PDF	Monostable	3A (NO) + 3B (NC)	DC	21 VDC	277 VAC	300 VDC	.7 W	Solder Pins	Solder Pins	-	-	-	-	-	-	Compliant	Compliant
SR6B6K21	7-1415537-9	3D PDF	-	4A (NO) + 2B (NC)	-	21 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C4048 - V23050-A1048-A551	2-1415019-1	3D PDF	-	5A (NO) + 1B (NC)	-	48 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L015	2-1558737-5	3D PDF	-	4A (NO) + 2B (NC)	-	15 VDC	277 VAC	-	.7 W	-	-	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6V6K24 Buy on te.com	5-1415539-2	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L060	1-1558736-3	3D PDF	-	3A (NO) + 3B (NC)	-	60 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C4018 - V23050-A1018-A551	6-1415017-1	3D PDF	-	5A (NO) + 1B (NC)	-	18 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-516-L030	2-1558738-9	3D PDF	-	5A (NO) + 1B (NC)	-	30 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-513-L110	1-1558738-5	3D PDF	-	5A (NO) + 1B (NC)	-	110 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L040	1-1558737-1	3D PDF	-	4A (NO) + 2B (NC)	-	40 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6V6K12	3-1415542-5	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L018	1558737-6	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L110	1-1558736-5	3D PDF	-	3A (NO) + 3B (NC)	-	110 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L110	3-1558736-5	3D PDF	Monostable	3A (NO) + 3B (NC)	DC	110 VDC	277 VAC	300 VDC	.7 W	Solder Pins	Solder Pins	-	-	-	-	-	-	Compliant	Compliant
SR6B4110 - V23050-A1110-A542 Buy on te.com	1-1393260-3	3D PDF	-	4A (NO) + 2B (NC)	-	110 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4012 - V23050-A1012-A533	1-1415015-1	3D PDF	-	3A (NO) + 3B (NC)	-	12 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C4012 - V23050-A1012-A551	1-1415017-1	3D PDF	-	5A (NO) + 1B (NC)	-	12 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4012 - V23050-A1012-A542 Buy on te.com	1393260-4	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4021 - V23050-A1021-A542	1393260-6	3D PDF	-	4A (NO) + 2B (NC)	-	21 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4024 - V23050-A1024-A533 Buy on te.com	1415015-1	3D PDF	-	3A (NO) + 3B (NC)	-	24 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6C4024 - V23050-A1024-A551	1415017-1	3D PDF	-	5A (NO) + 1B (NC)	-	24 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4018 - V23050-A1018-A542	1393260-5	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L018	2-1558736-6	3D PDF	-	3A (NO) + 3B (NC)	-	18 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6V6K18	3-1415543-3	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4060 - V23050-A1060-A533	7-1415018-1	3D PDF	-	3A (NO) + 3B (NC)	-	60 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-516-L012	2-1558738-4	3D PDF	Monostable	5A (NO) + 1B (NC)	DC	12 VDC	277 VAC	300 VDC	.7 W	Solder Pins	Solder Pins	-	-	-	-	-	-	Compliant	Compliant
SR6B6K18	7-1415537-8	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4005 - V23050-A1005-A533	8-1415017-1	3D PDF	-	3A (NO) + 3B (NC)	-	5 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4005 - V23050-A1005-A542	1393260-1	3D PDF	-	4A (NO) + 2B (NC)	-	5 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L012	1558737-4	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-336-L012	2-1558736-4	3D PDF	-	3A (NO) + 3B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L048	1-1558736-2	3D PDF	-	3A (NO) + 3B (NC)	-	48 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-513-L024	1558738-8	3D PDF	-	5A (NO) + 1B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L024-0V	2-1558739-8	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L012-0V	2-1558739-4	3D PDF	-	4A (NO) + 2B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L005	1558736-1	3D PDF	-	3A (NO) + 3B (NC)	-	5 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L012	1558736-4	3D PDF	-	3A (NO) + 3B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L085	1-1558737-4	3D PDF	-	4A (NO) + 2B (NC)	-	85 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L024	1558736-8	3D PDF	-	3A (NO) + 3B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L110	1-1558737-5	3D PDF	-	4A (NO) + 2B (NC)	-	110 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6K21	6-1415537-4	3D PDF	-	3A (NO) + 3B (NC)	-	21 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L018-0V	2-1558739-6	3D PDF	-	4A (NO) + 2B (NC)	-	18 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L024	1558737-8	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4060 - V23050-A1060-A542	1-1393260-1	3D PDF	-	4A (NO) + 2B (NC)	-	60 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L024	2-1558737-8	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-426-L021	2-1558737-7	3D PDF	-	4A (NO) + 2B (NC)	-	21 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A4048 - V23050-A1048-A533	6-1415018-1	3D PDF	-	3A (NO) + 3B (NC)	-	48 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L048	1-1558737-2	3D PDF	-	4A (NO) + 2B (NC)	-	48 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-423-L021	1558737-7	3D PDF	-	4A (NO) + 2B (NC)	-	21 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6K18	6-1415537-3	3D PDF	-	3A (NO) + 3B (NC)	-	18 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6A6K24 Buy on te.com	6-1415537-5	3D PDF	-	3A (NO) + 3B (NC)	-	24 VDC	250 VAC	-	.8 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6B4024 - V23050-A1024-A542 Buy on te.com	1393260-7	3D PDF	-	4A (NO) + 2B (NC)	-	24 VDC	250 VAC	-	1.2 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	70 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	Compliant	Compliant
SR6-333-L021	1558736-7	3D PDF	-	3A (NO) + 3B (NC)	-	21 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	-	-
SR6-513-L012	1558738-4	3D PDF	-	5A (NO) + 1B (NC)	-	12 VDC	277 VAC	-	.7 W	Solder Pins	Solder Pins	Flux Resistant Automatic Soldering & Washable	85 °C	15 – 20 mm	50 – 60 mm	16 – 20 mm	4000 Vrms	-	-

Features

Please review product documents or contact us for the latest agency approval information.

Other

Coil Power Rating Class (W) .6 – .8, 1 – 1.5, .5 – 1
Contact Current Class (A) 5 – 10
Height Class (Mechanical) (mm) 15 – 20
Length Class (Mechanical) (mm) 50 – 60
Width Class (Mechanical) (mm) 16 – 20
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Electrical Characteristics

Contact Switching Load (Min) 1mA @ 5V, 10mA @ 5V
Contact Switching Voltage (Max) (VAC) 400
Contact Switching Voltage (Max) (VDC) 300
Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 3000
Coil Resistance (Ω) 720, 6021, 1333, 480, 21, 10080, 180, 462, 321, 26, 405, 15130, 1920, 270, 2285, 368, 10321, 551, 822, 630, 205, 17286, 3291, 5142, 31, 3000, 120
Insulation Initial Dielectric Between Open Contacts (Vrms) 1500
Contact Current Rating (A) 8
Coil Voltage Rating (VDC) 85, 60, 40, 15, 18, 110, 12, 5, 48, 24, 30, 21
Contact Voltage Rating (VAC) 277, 250
Contact Voltage Rating (VDC) 300
Coil Power Rating DC (W) .8, 1.2, .7
Insulation Initial Dielectric Between Contacts & Coil (Vrms) 4000

Packaging Features

Packaging Method Box & Tube

Contact Features

Contact Material AgSnO2, AgSnO2+Au

Dimensions

Insulation Creepage Between Contact & Coil (mm) 5.6, 5.5
Insulation Creepage Between Contact & Coil (in) .22, .217
Product Height (mm) 16.5, 15.7
Product Height (in) .618, .649, .65
Product Length (mm) 55
Product Length (in) 2.167, 2.16
Product Width (mm) 16.5
Product Width (in) .65, .649
Insulation Clearance Between Contact & Coil (mm) 5.5, 5.6
Insulation Clearance Between Contact & Coil (in) .217, .22

Usage Conditions

Environmental Category of Protection RTIII
Operating Temperature Range (°C) -25 – 70, -40 – 85
Operating Temperature Range (°F) -13 – 158, -40 – 185
Environmental Ambient Temperature (Max) (°C) 70, 85
Environmental Ambient Temperature (Max) (°F) 158, 185

Operation/Application

Solder Process Wave Solder
Current Type DC
Coil Magnetic System Monostable

Body Features

Primary Product Color Natural
Product Weight (g) 30, 29.5
Product Weight (oz) 1.058, 1.041
Enclosure Type Flux Resistant Automatic Soldering & Washable

Product Availability

Product Availability Worldwide

Configuration Features

Contact Number of Poles 6
Contact Arrangement 4A (NO) + 2B (NC), 3A (NO) + 3B (NC), 5A (NO) + 1B (NC)

Product Type Features

Relay & Contactor Type Force-Guided Relay

Termination Features

Main Termination & Connection Type Solder Pins
Coil Termination & Connection Type Solder Pins

Mechanical Attachment

Product Mount Type Board Mount

Reference Number

TE Internal Number CAT-SCH691-SR1B
