Overview

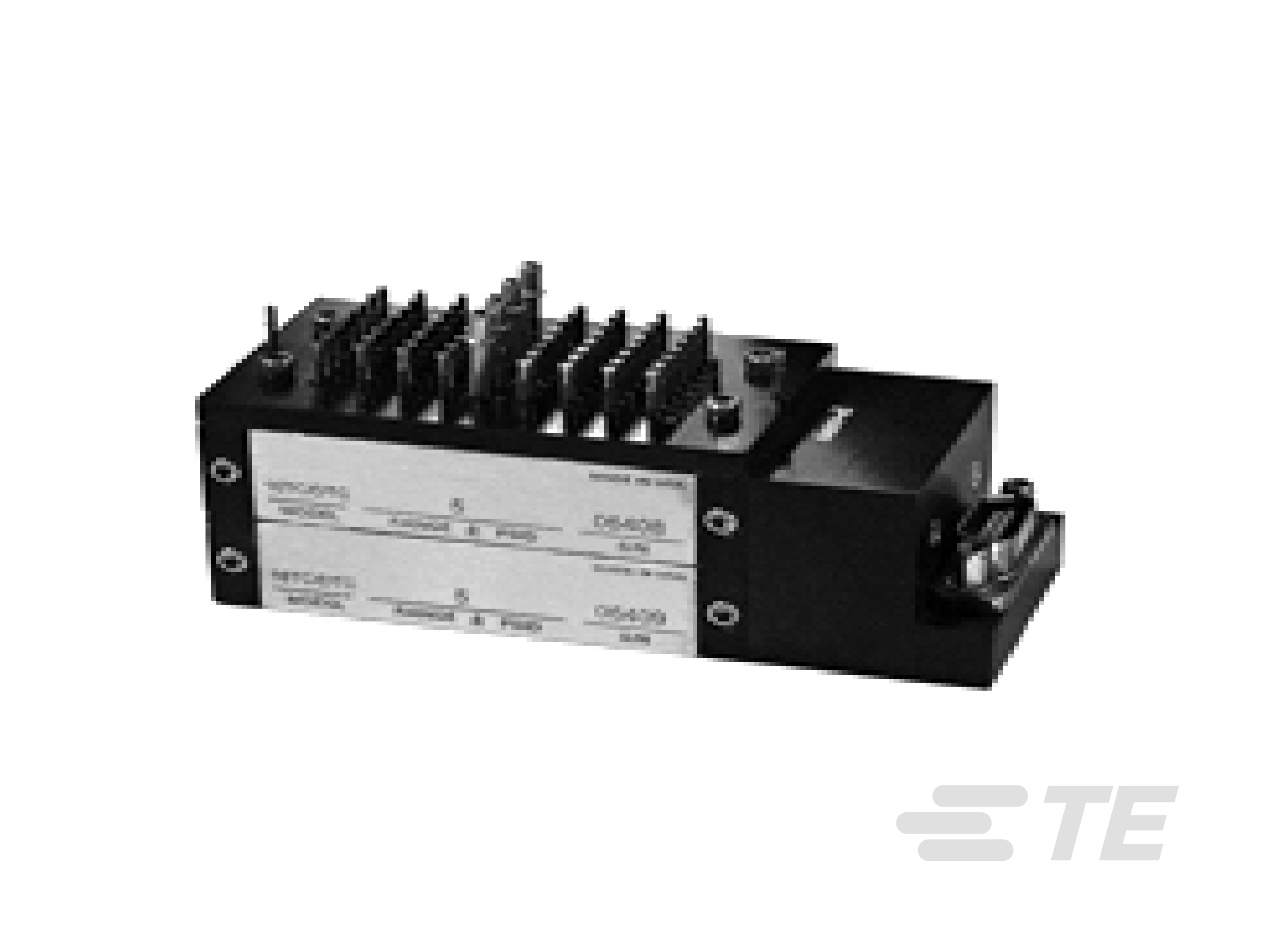

The sensors in the ESP-64HD electronic pressure scanner are mounted on a common hybrid ceramic substrate using a proprietary technique which maximizes long term stability. The outputs of the sensors are electronically multiplexed through a single onboard instrumentation amplifier at rates up to 70,000 Hz using binary addressing. The multiplexed amplified analog output is capable of driving long lengths of cable to a remote A/D converter. The ESP scanners also incorporate a two-position calibration manifold actuated by momentary pulses of control pressures. When placed in the calibrate position, all sensors are connected to a common calibration pressure port. A series of accurately measured pressures can be applied through this port to characterize the sensors, in place, at the condition to which they are being subjected. Proper and periodic on-line calibration maintains static errors within ±0.03% or better of the full scale (FS) pressure range. The calibration manifold automatically switches between two common reference pressures to ensure a stable reference is applied during calibration. The calibration manifold incorporates a visual position indicator and utilizes a dynamic o-ring seal design for high reliability and easy servicing in the field.

Benefits

  • Unparalleled long term stability
  • Digital Temperature Compensation (DTC)
  • Individual offset and thermal zero compensation
  • Automatically switched reference pressures
  • Optional isolated purge capability
  • Optional temperature sense output
orange bar

Applications

  • In-Model wind tunnel testing
  • Aircraft Flight testing
  • Automotive track testing
orange bar
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • DAQ Scanner Product Type  Pressure Scanners

Electrical Characteristics

  • Media Compatibility  Dry Gas

Signal Characteristics

  • Number of Channels  32, 64

Usage Conditions

  • Accuracy (% of FS) ±.03

Industry Standards

  • IP Rating  IP50

Other

  • EU Throughput Rate HZ  325

Reference Number

  • TE Internal Number CAT-SCS0067

Related Materials

Instruction Sheets

Customer Manual
