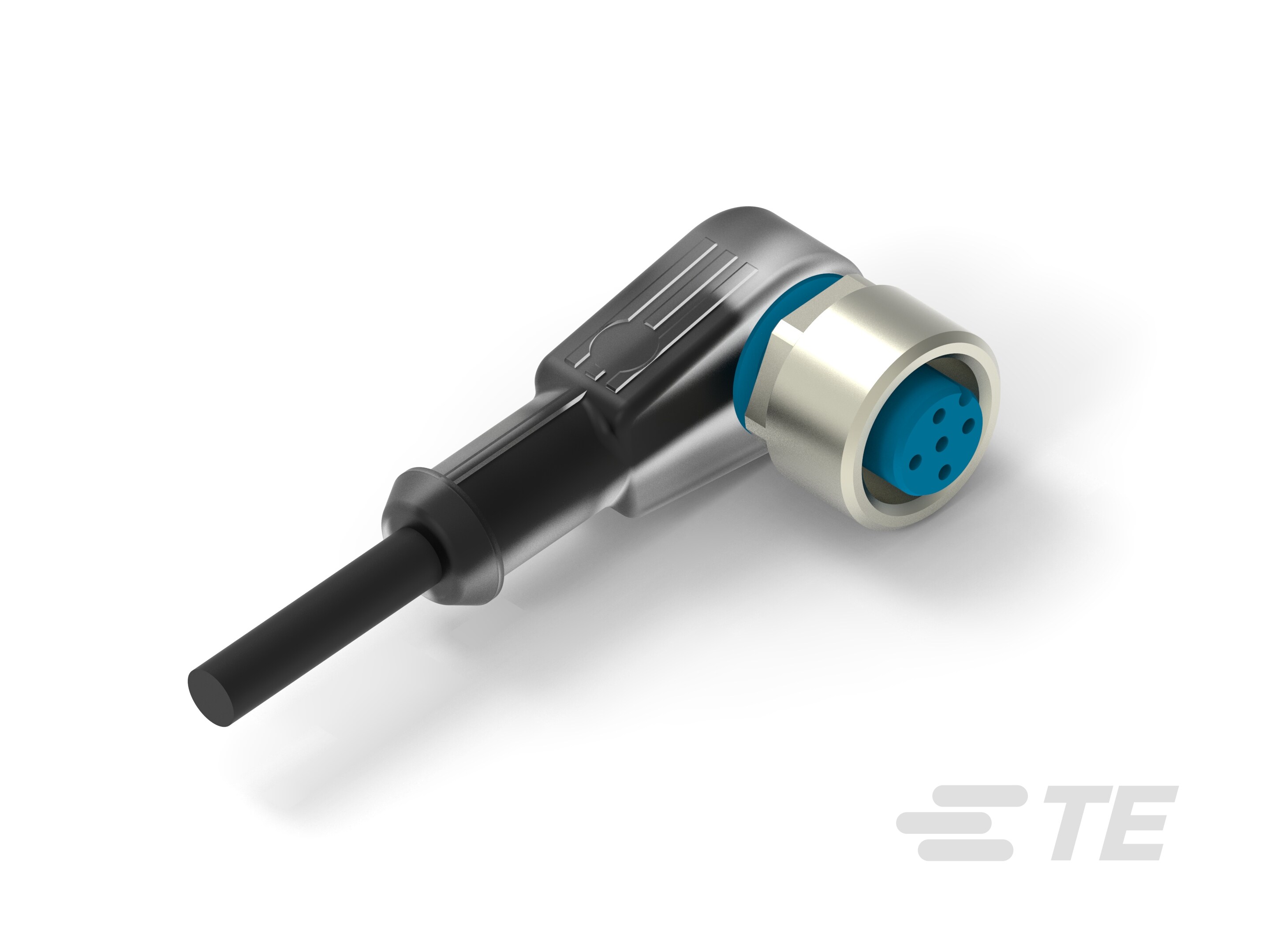

M12 A-Code Female R/A LED Pigtail

Please review product documents or contact us for the latest agency approval information.

• Packaging Method  Box

• Packaging Quantity  25

• Wire Size (AWG) 22

• Wire Size (mm²) .326

• Outside Cable Diameter (mm) 4.7, 4.3, 5, 4.6

• Outside Cable Diameter (in) .161, .181, .185, .196

• Operating Voltage (VDC) 24

• Thread Size  M12

• Connector Orientation (End A)  Right Angle

• Wire Color (Base)  Brown, Blue, Black, Brown, White, Blue, Black

• Connector Color (End A)  Black

• Jacket Material  PUR, PVC

• Cable Color  Black

• Connector & Keying Code  A

• Field Serviceable  Yes

• Cable Assembly Length (m) 1.5, 3, 5, 10

• Cable Assembly Configuration  Single Ended

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant

• Indicator Type  LED

• M8/M12 Application Type  Sensor/Actuator

• Shielded  No

• Configuration Number  A

• Number of Positions  4

• Contact Current Rating (Max) (A) 4

• Operating Temperature Range (°C) -40 – 80, -30 – 80

• Operating Temperature Range (°F) -22 – 176, -40 – 176

• Cable Assembly Type  M12 Pigtail

• Cable Assembly (End A)  M12 Socket

• Housing Material  Plastic
