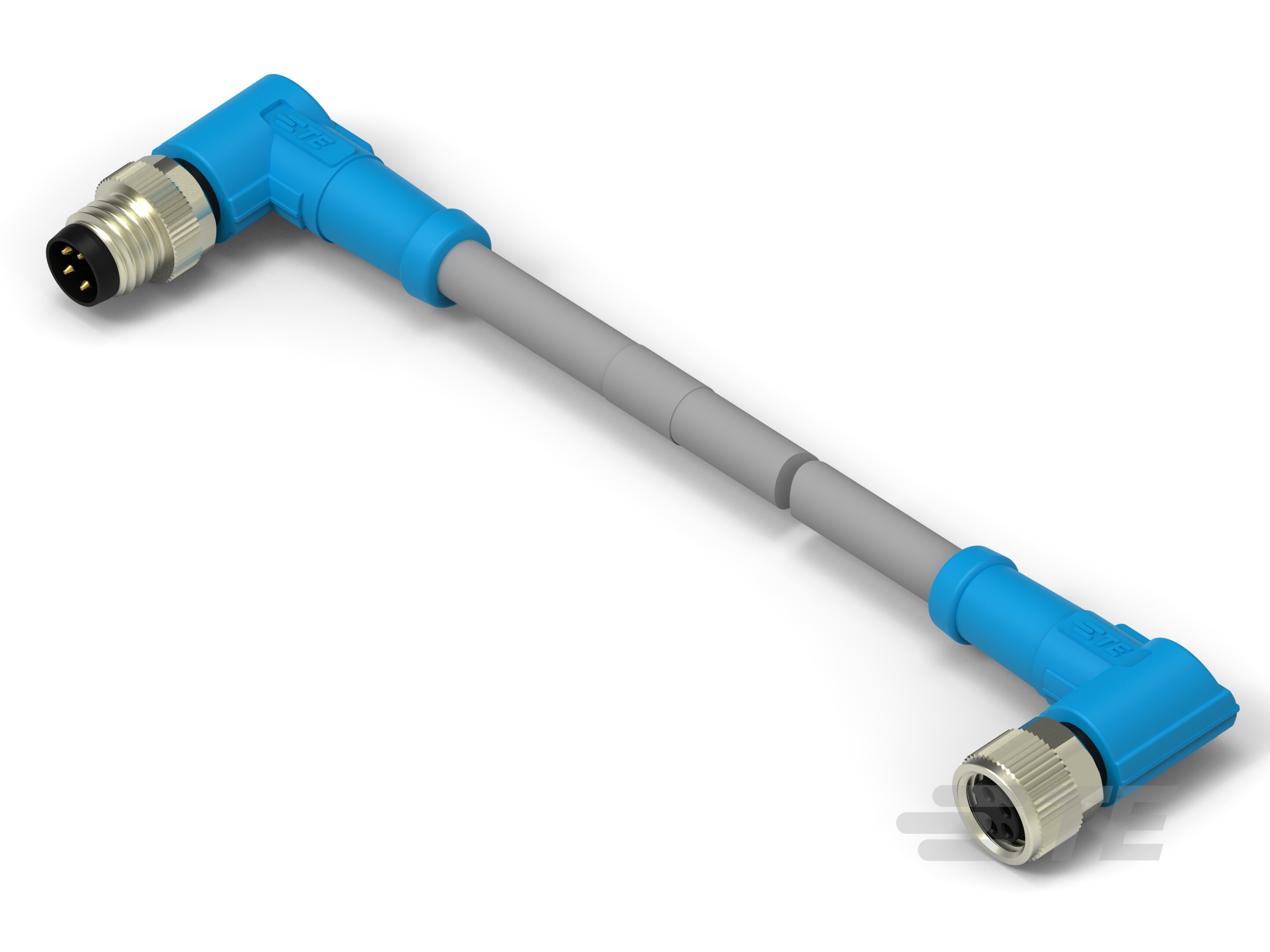

M8 Male R/A to Female R/A Cable Assemblies

Please review product documents or contact us for the latest agency approval information.

• Wire Size (AWG) 24

• Outside Cable Diameter (mm) 5, 4.5

• Wire Size (mm²) .25

• Operating Voltage (VDC) 60, 30

• Operating Voltage (VAC) 60, 30

• Thread Size  M8 x M8

• Connector Orientation (End A)  Right Angle

• Connector Orientation (End B)  Right Angle

• Conductor Material  Copper Alloy

• Wire Color (Base)  Brown, Blue, Black, Brown, White, Blue, Black

• Connector Color (End A)  Black

• Jacket Material  PUR, PVC

• Connector Color (End B)  Black

• Cable Color  Gray, Black

• Connector & Keying Code  A

• Field Serviceable  Yes

• Cable Assembly Length (m) .5, 1, 1.5, 7, 3, 5, 10

• Cable Assembly Configuration  Double Ended

• EU RoHS Compliance  Compliant with Exemptions

• EU ELV Compliance  Compliant with Exemptions

• Contact Current Rating (Max) (A) 3

• Cable Assembly Type  M8

• Cable Assembly (End A)  M8 Plug

• Cable Assembly (End B)  M8 Socket

• Number of Positions  4, 3

• Housing Material  GF Nylon

• M8/M12 Application Type  Sensor/Actuator

• Shielded  No, Yes
