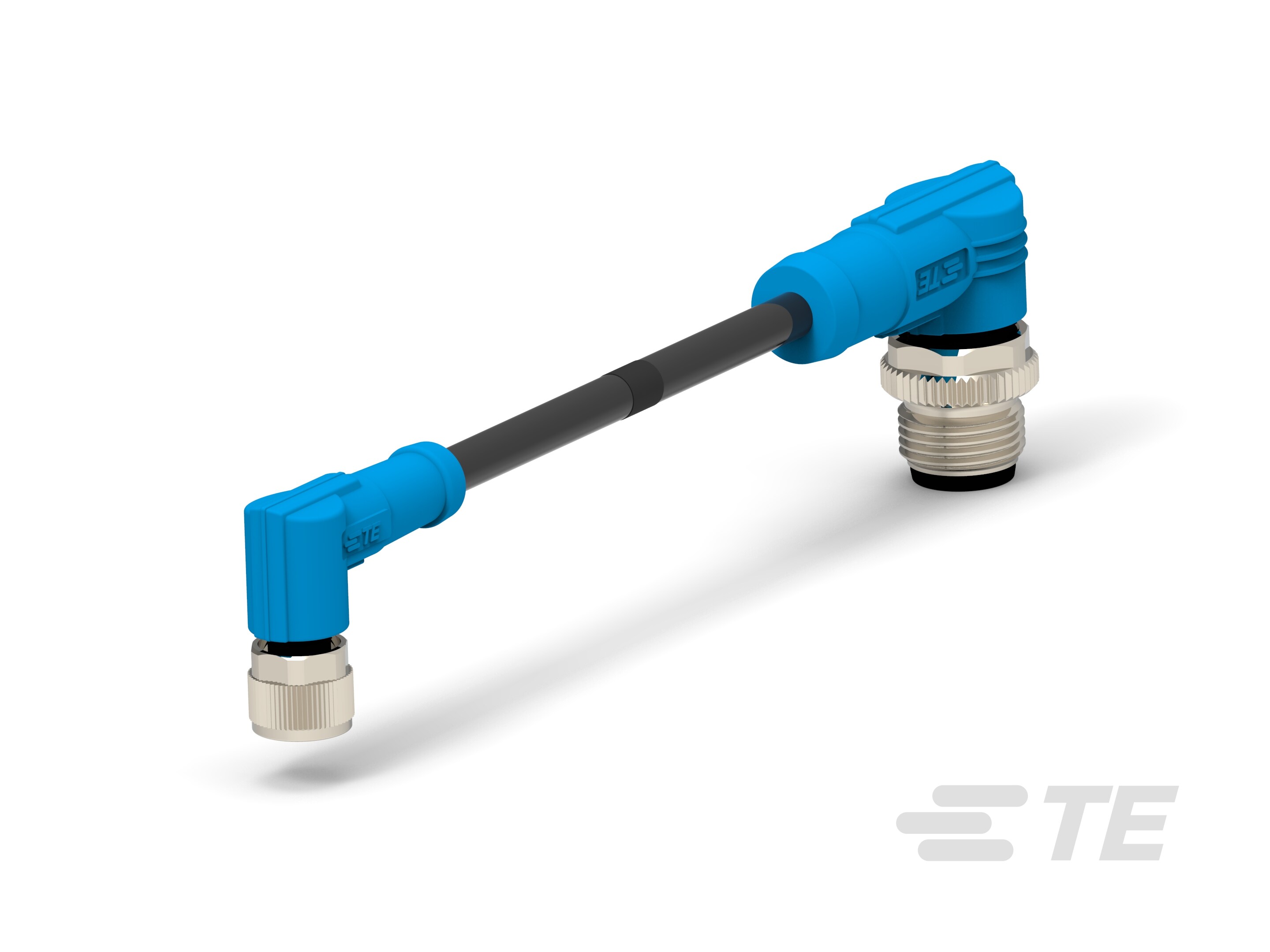

M8 Female to M12 Male Double Ended Cable Assembly

Please review product documents or contact us for the latest agency approval information.

• Cable Assembly (End B)  M12 Plug

• Cable Assembly (End A)  M8 Socket

• Cable Assembly Type  M8 to M12

• Number of Positions  3, 4

• Operating Voltage (VDC) 30, 60

• Operating Voltage (VAC) 30, 60

• Wire Color (Base)  Brown-White-Blue-Black, Brown, Blue, Black

• Jacket Material  PUR, PVC

• Connector Color (End B)  Black

• Conductor Material  Copper Alloy

• Cable Color  Gray, Black

• Connector & Keying Code  A

• Connector Color (End A)  Black

• Contact Current Rating (Max) (A) 3

• Connector Orientation (End B)  Right Angle, Straight

• Thread Size  M8 x M12

• Connector Orientation (End A)  Right Angle

• Housing Material  GF Nylon

• Wire Size (mm²) .25

• Wire Size (AWG) 24

• Outside Cable Diameter (mm) 4.5, 5

• Operating Temperature Range  -25 – 85 °C [ -13 – 185 °F ]

• M8/M12 Application Type  Sensor/Actuator

• Shielded  No

• Packaging Method  Box

• Cable Assembly Length (m) .5, 1, 1.5, 3, 5, 7, 10

• Field Serviceable  Yes

• Cable Assembly Configuration  Double Ended
