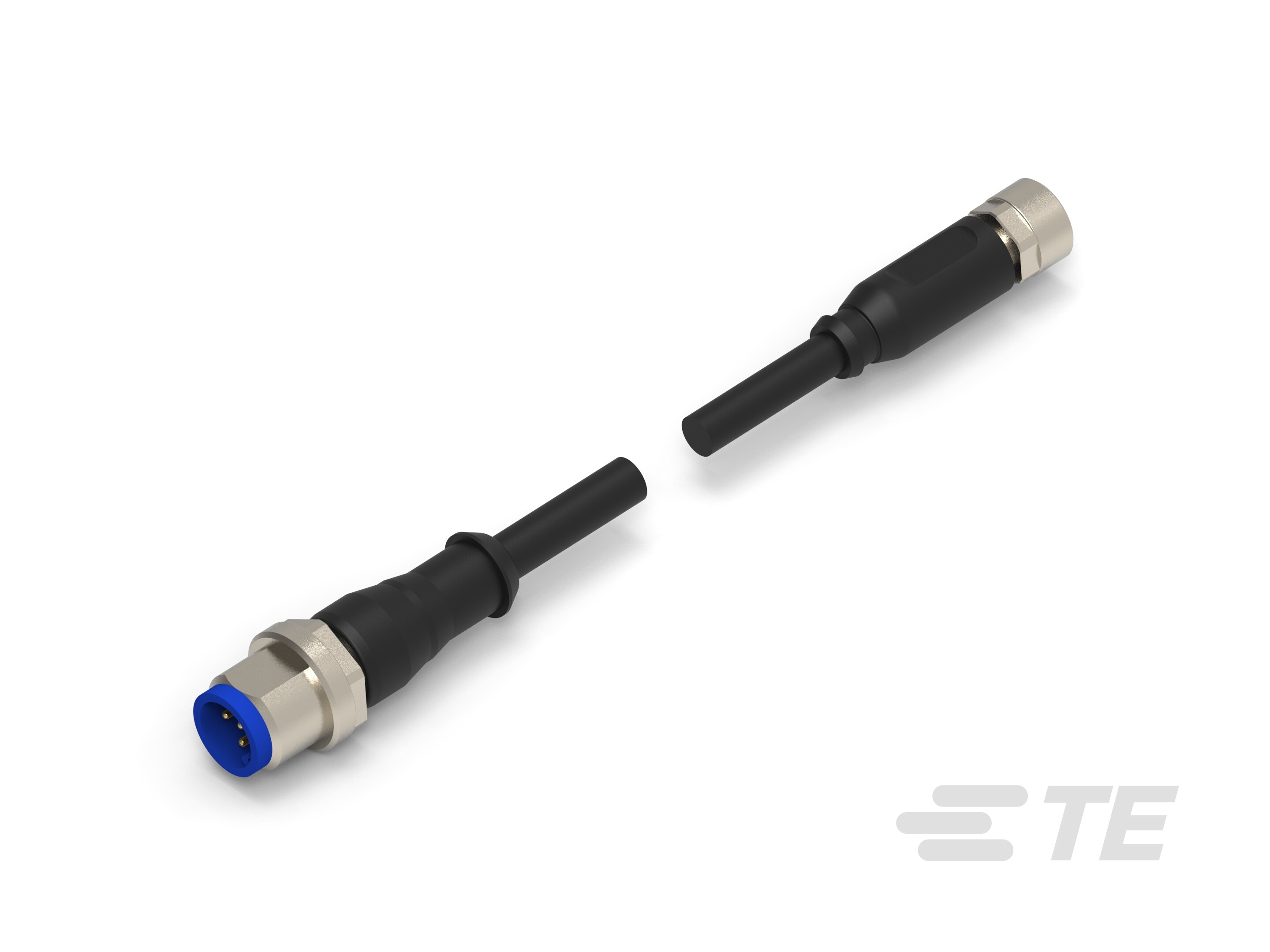

M8 FS - M12 MS Cable Assembly BL

M8 FS - M12 MS Cable Assembly BL-CAT-SE594-M1X1
Our M8 Female Straight to M12 Male Straight Assemblies are offered in 3 & 4 poles, PUR & PVC in black overmold, 0.3 up to 2m length
More Less

Product Features

  • Packaging Method : Box

  • Operating Temperature Range (°C): -40 – 80, -30 – 80

  • Operating Temperature Range (°F): -40 – 176, -22 – 176

  • Operating Voltage (VDC): 60, 30

  • M8/M12 Application Type : Sensor/Actuator

  • Contact Current Rating (Max) (A): 4

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Cable Assembly (End B)  M12 Plug

  • Cable Assembly (End A)  M8 Socket

  • Cable Assembly Type  M8 to M12

Configuration Features

  • Number of Positions  3, 4

Electrical Characteristics

  • Operating Voltage (VDC) 30, 60

  • Operating Voltage (VAC) 30, 60

Body Features

  • Wire Color (Base)  Brown, Blue, Black, Brown, White, Blue, Black

  • Jacket Material  PUR, PVC

  • Connector Color (End B)  Black

  • Cable Color  Black

  • Connector & Keying Code  A

  • Connector Color (End A)  Black

Contact Features

  • Contact Current Rating (Max) (A) 4

Mechanical Attachment

  • Connector Orientation (End B)  Straight

  • Thread Size  M12 x M8

  • Connector Orientation (End A)  Straight

Housing Features

  • Housing Material  Plastic

Dimensions

  • Wire Size (mm²) .326

  • Wire Size (AWG) 22

  • Outside Cable Diameter (mm) 4.1, 4.4, 4.5, 4.8

  • Outside Cable Diameter (in) .161, .173, .177, .188

Usage Conditions

  • Operating Temperature Range (°C) -40 – 80, -30 – 80

  • Operating Temperature Range (°F) -40 – 176, -22 – 176

Operation/Application

  • M8/M12 Application Type  Sensor/Actuator

  • Shielded  No

Packaging Features

  • Packaging Method  Box

Other

  • Cable Assembly Length (m) .3, .6, 1, 1.5, 2

  • Field Serviceable  Yes

  • Cable Assembly Configuration  Double Ended

Reference Number

  • TE Internal Number CAT-SE594-M1X1
