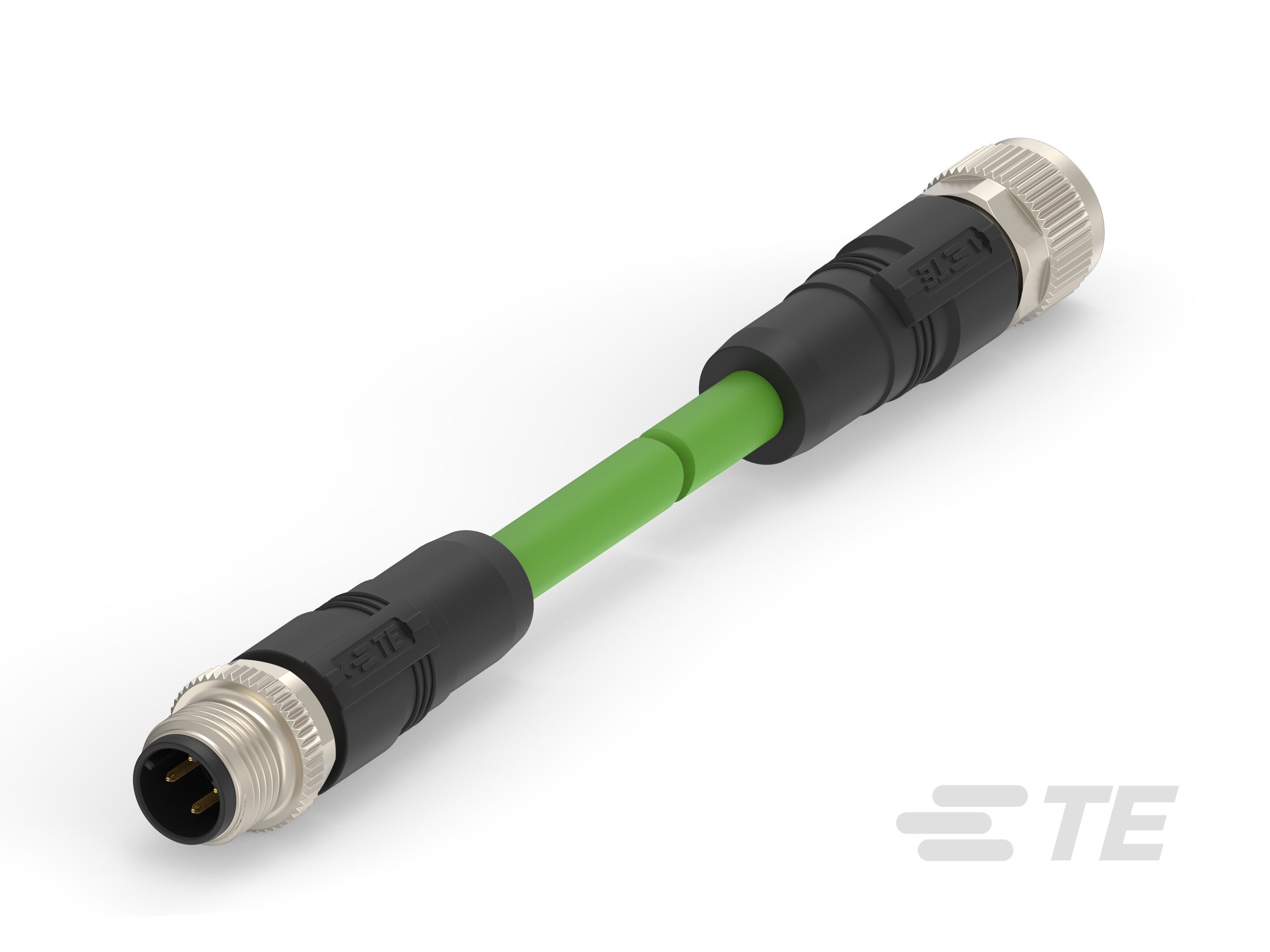

M12 D-code 4pin Male to Female Cable Assembly, Cat5e Polyurethane 22AWG Shielded

M12 D-code 4pin Male to Female Cable Assembly, Cat5e Polyurethane 22AWG Shielded-CAT-SI113-M1B
IP67 CAT5e M12 D-code 4pin male straight to female straight cable assemblies offered with shielded PUR cable 2-pair twisted-pair 22AWG in green color, suitable for Profinet & Ethernet/IP networks.
More Less

Product Features

  • Cable Assembly Type : M12

  • Number of Positions : 4

  • Cable Assembly Length (m): .5, 1, 1.5, 3, 7, 2, 5, 10, 4

  • M8/M12 Application Type : Industrial Ethernet

  • Industrial Protocols : Ethernet

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Number of Strands  19

  • Number of Positions  4

Electrical Characteristics

  • Operating Voltage (VDC) 250

  • Operating Voltage (VAC) 250

Body Features

  • Connector Color (End A)  Black

  • Jacket Material  PUR

  • Connector Color (End B)  Black

  • Cable Color  Green

  • Connector & Keying Code  D

Contact Features

  • Contact Current Rating (Max) (A) 4

Product Type Features

  • Cable Assembly Type  M12

  • Cable Assembly (End A)  M12 Plug

  • Cable Assembly (End B)  M12 Socket

Other

  • Cable Assembly Length (m) .5, 1, 1.5, 3, 7, 2, 5, 10, 4

  • Cable Assembly Configuration  Double Ended

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Mechanical Attachment

  • Connector Orientation (End A)  Straight

  • Connector Orientation (End B)  Straight

Housing Features

  • Housing Material  PA66+25GF

Operation/Application

  • M8/M12 Application Type  Industrial Ethernet

  • Shielded  Yes

Industry Standards

  • Industrial Protocols  Ethernet

Reference Number

  • TE Internal Number CAT-SI113-M1B
