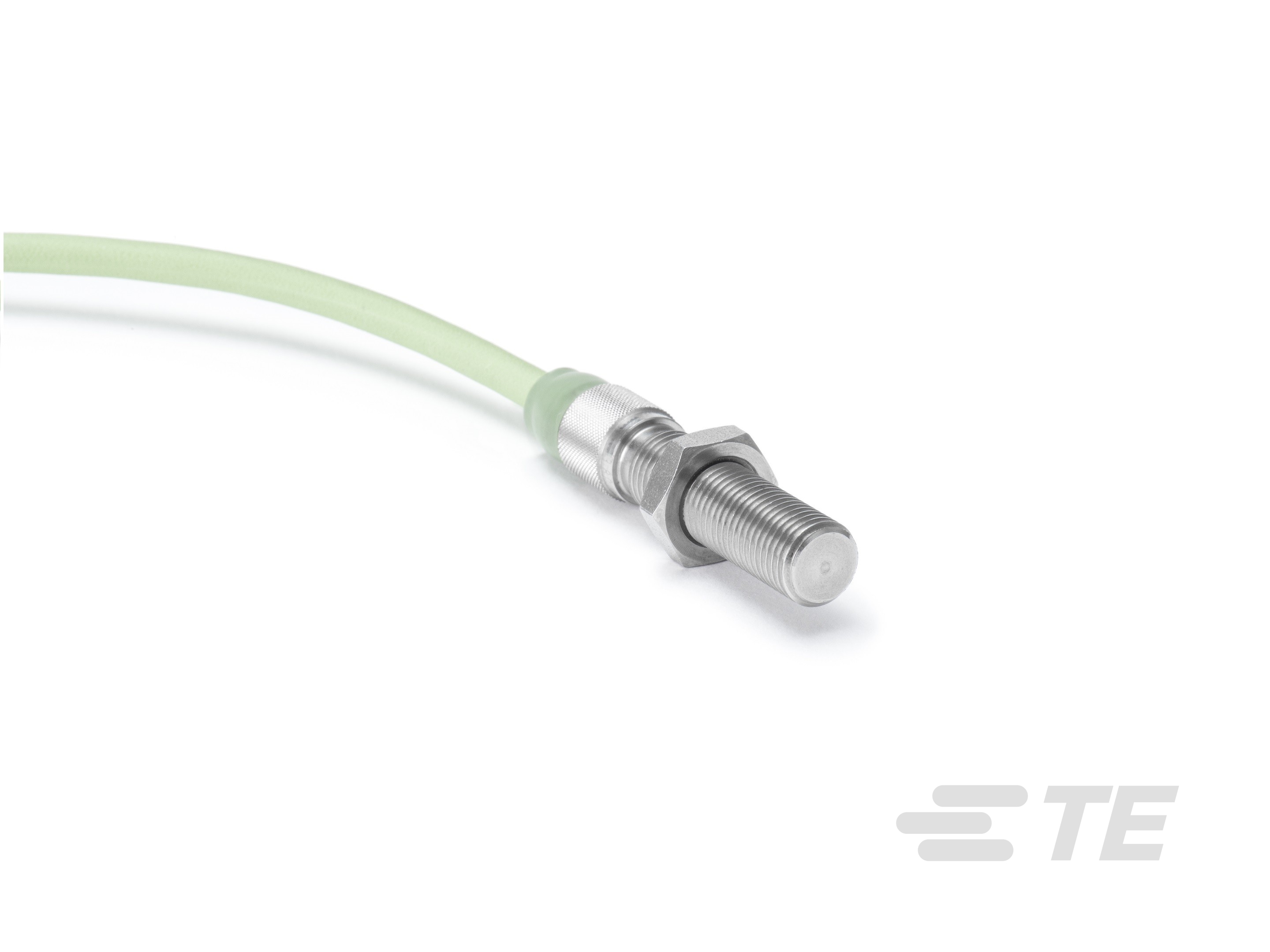

GREENLINE DIFFERENTIAL HALL SPEED SENSOR

GREENLINE DIFFERENTIAL HALL SPEED SENSOR-CAT-SPS0007
  • Jaquet
|
  • Jaquet Greenline
    • ,
  • Jaquet D12
The D12 series differential Hall effect speed sensors are suitable, in conjunction with a ferrous pole wheel, for generating square wave signals proportional to rotary speeds.
More Less

Product Features

  • Speed Sensor Product Type : Speed

  • Sensor Technology : Hall Effect

  • Case Material : Stainless Steel

  • Target : Metal

  • Target Material : Ferrous

Available from

LADD Inc

Build and price the product now

Overview

They exhibit a dynamic function, whereby pulse generation down to 5 Hz is guaranteed.  The sensor must be oriented with respect to the pole wheel as shown in the dimensional drawing.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Speed Sensor Product Type  Speed

  • Sensor Technology  Hall Effect

Body Features

  • Case Material  Stainless Steel

Signal Characteristics

  • Target  Metal

  • Target Material  Ferrous

  • Frequency Range (kHz) 5 – 20

Operation/Application

  • Output Signal Type  Square Wave

Dimensions

  • Shaft Length (mm) 64, 26

  • Shaft Diameter (mm) 12

Electrical Characteristics

  • Supply Voltage Range (VDC) 8 – 32

Housing Features

  • Housing Ambient Temperature (°C) -40 – 125

Usage Conditions

  • Cable Ambient Temperature (°C) -40 – 125

  • Connector Ambient Temperature (°C) -40 – 125

Reference Number

  • TE Internal Number CAT-SPS0007
