GREENLINE VR SPEED SENSORS

GREENLINE VR SPEED SENSORS-CAT-SPS0011
  • Jaquet
|
  • Jaquet E Series
    • ,
  • Jaquet Greenline

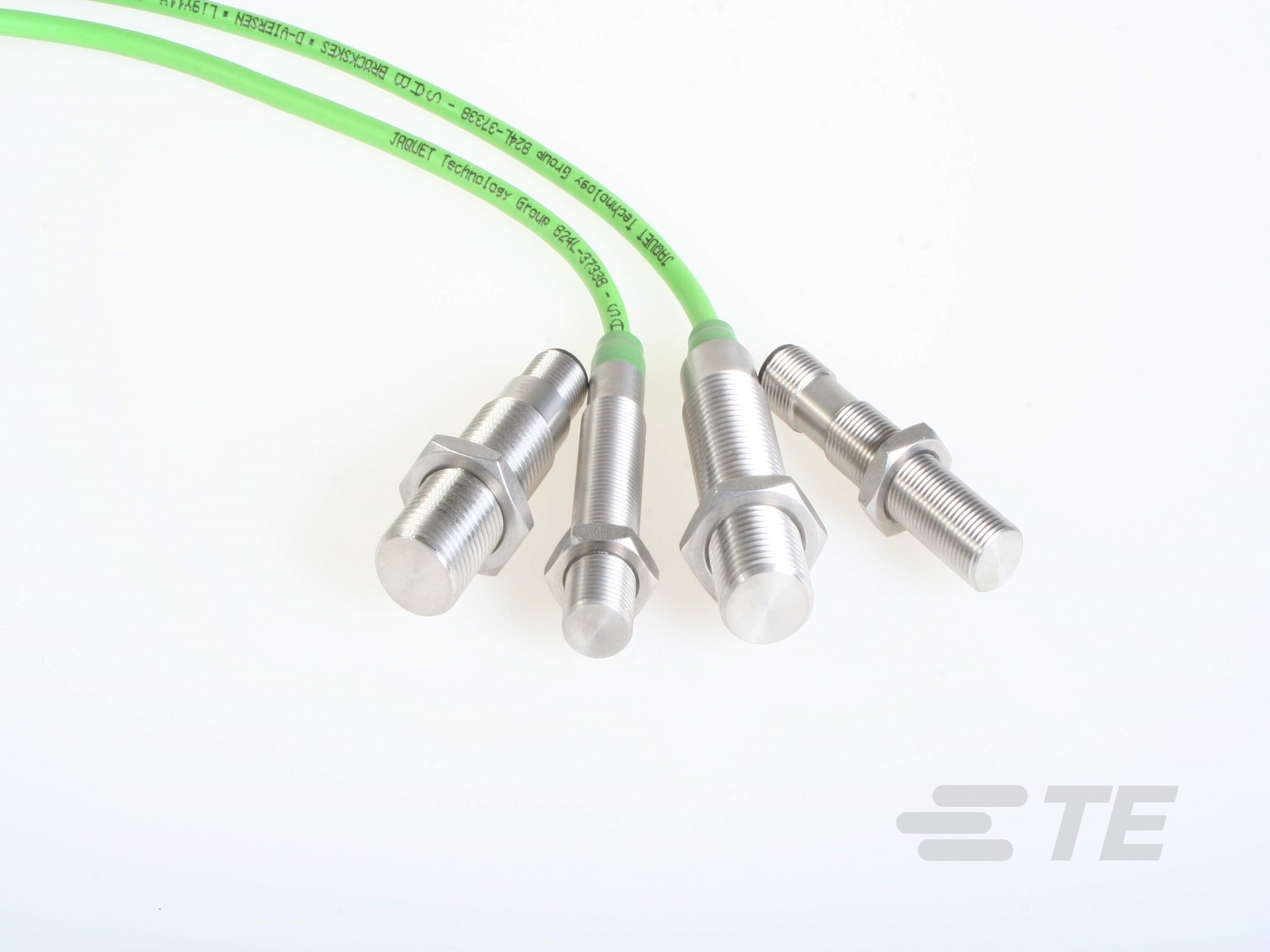

The Greenline E series variable reluctance (VR) speed sensors consist of an iron core, an inductive coil, and a permanent magnet. A ferrous pole wheel passing the sensor face changes the magnetic field strength, resulting in an AC voltage being induced in the coil.
More Less

Product Features

  • Speed Sensor Product Type : Speed

  • Sensor Technology : Variable Reluctance

  • Case Material : Stainless Steel

  • Target : Metal

  • Target Material : Ferrous

Available from

LADD Inc

Build and price the product now

Overview

The frequency of the output signal is proportional to the speed of the moving target. The amplitude of the signal depends on speed, air gap, geometry of target, magnetic properties of target material, and the electrical load. VR sensors, also known as passive or electromagnetic sensors, do not require an external supply.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Speed Sensor Product Type  Speed

  • Sensor Technology  Variable Reluctance

Body Features

  • Case Material  Stainless Steel

Signal Characteristics

  • Target  Metal

  • Target Material  Ferrous

  • Frequency Range (kHz) .025 – 20

Operation/Application

  • Output Signal Type  Sine Wave

Housing Features

  • Housing Ambient Temperature (°C) -40 – 125

Usage Conditions

  • Cable Ambient Temperature (°C) -40 – 125

  • Connector Ambient Temperature (°C) -40 – 125

Reference Number

  • TE Internal Number CAT-SPS0011
