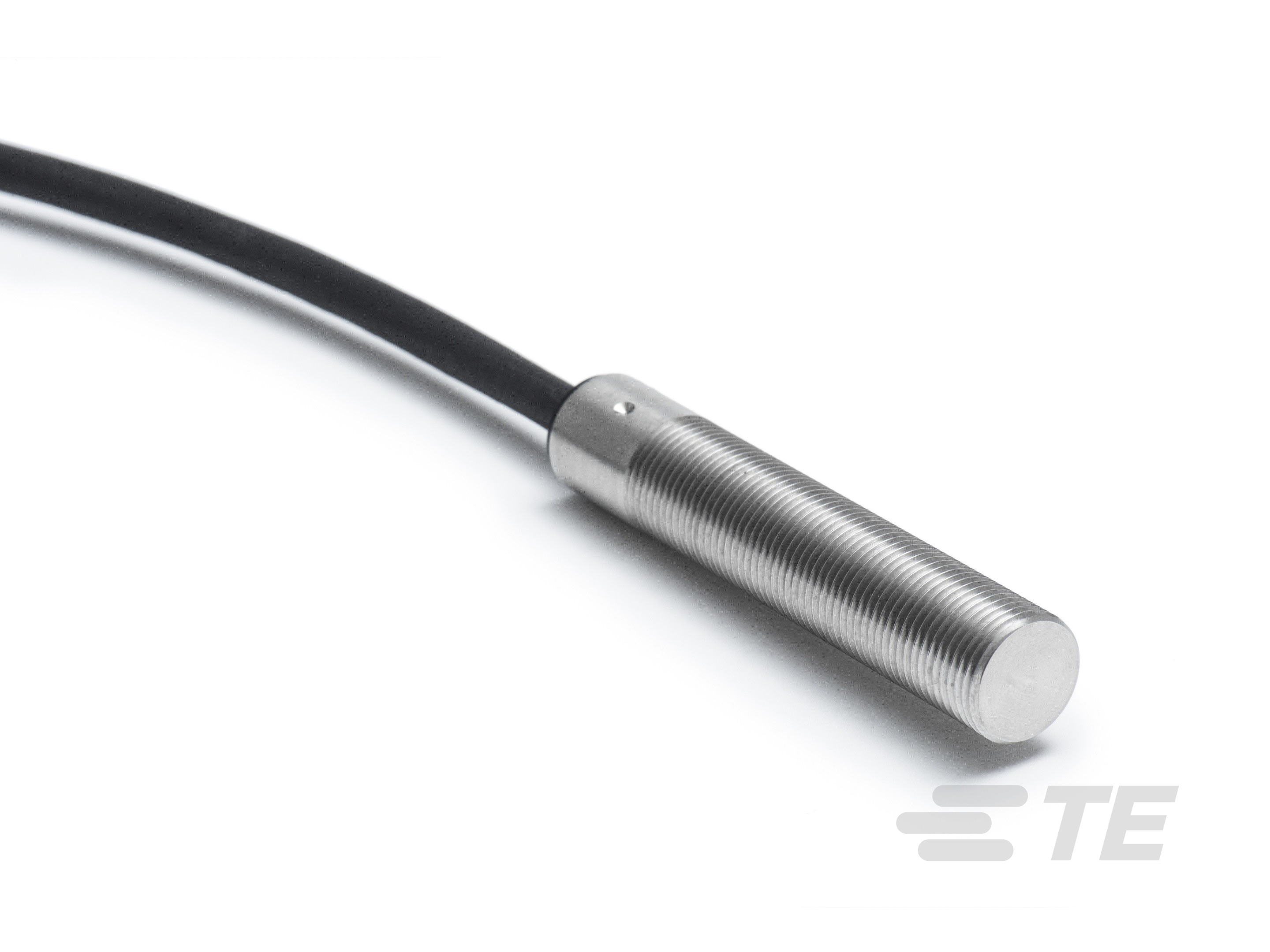

HALL EFFECT SINGLE CHANNEL SPEED SENSOR

HALL EFFECT SINGLE CHANNEL SPEED SENSOR-CAT-SPS0017
  • Jaquet
|
  • Jaquet DSL
The speed sensors DSL are suitable, in conjunction with a pole wheel, for generating square wave signals proportional to rotary speeds. They have a static behavior, so that pulse generation is guaranteed down to a speed corresponding to a frequency of 0 Hz.
More Less

Product Features

  • Speed Sensor Product Type : Speed

  • Sensor Technology : Hall Effect

  • Case Material : Stainless Steel

  • Target : Metal

  • Target Material : Ferrous

Available from

LADD Inc

Build and price the product now

Overview

The sensing element is a magnetically biased Hall effect semiconductor.  The sensor function is independent of the rotational orientation of the sensor axis. The sensor types differ in housing size, connection options (connector, cable type, pin assignment) and electronics.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Speed Sensor Product Type  Speed

  • Sensor Technology  Hall Effect

Body Features

  • Case Material  Stainless Steel

Signal Characteristics

  • Target  Metal

  • Target Material  Ferrous

  • Frequency Range (kHz) 0 – 15

Operation/Application

  • Output Signal Type  Square Wave

Electrical Characteristics

  • Supply Voltage Range (VDC) 10 – 25

Housing Features

  • Housing Ambient Temperature (°C) -40 – 125

Usage Conditions

  • Cable Ambient Temperature (°C) -40 – 125

Reference Number

  • TE Internal Number CAT-SPS0017
