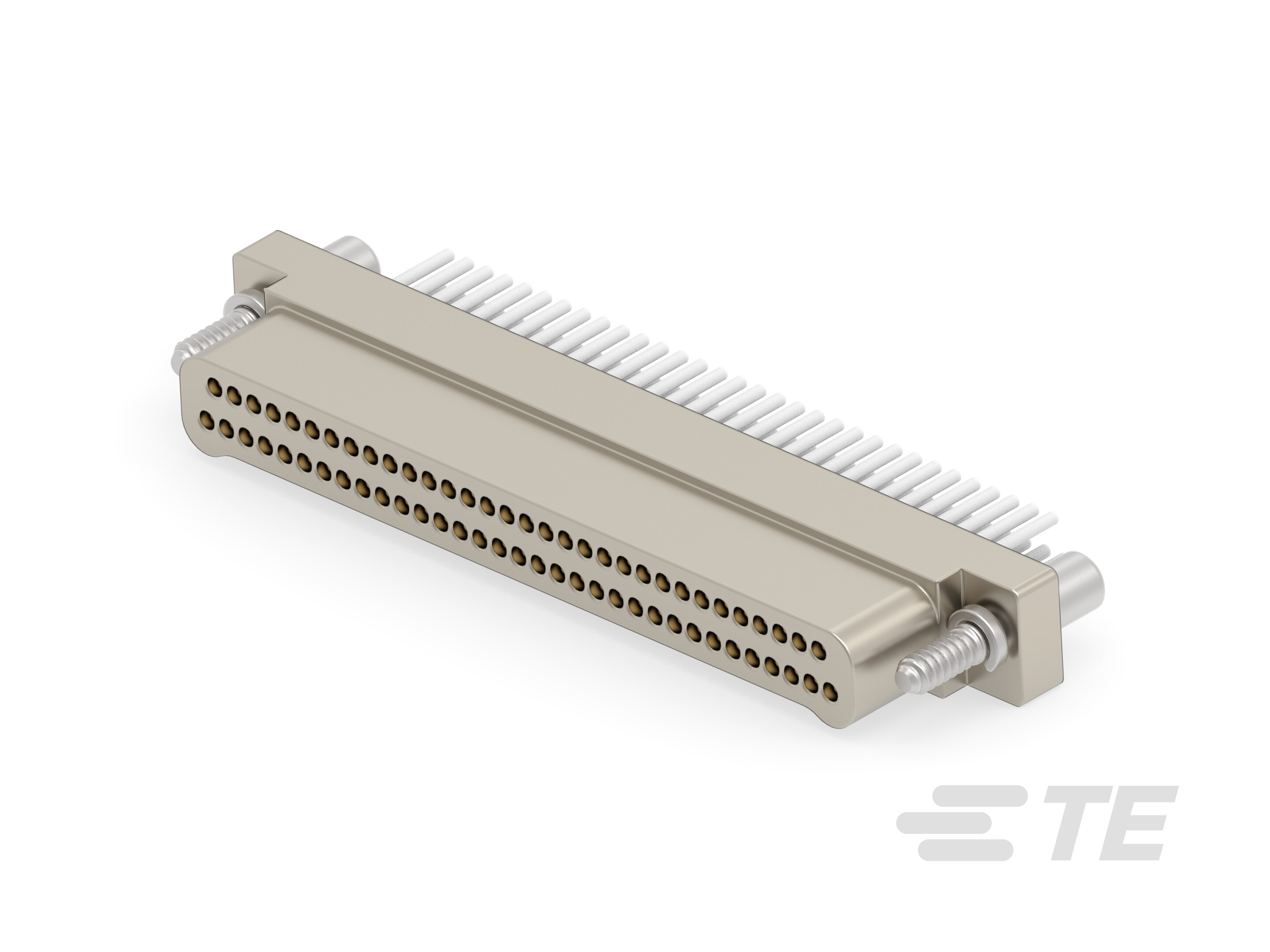

DUALOBE Plug Connectors: Metal Shell, 65 Pin/2 row

DUALOBE Plug Connectors: Metal Shell, 65 Pin/2 row-CAT-STM-65PC
  • Nanonics
TE's NANONICS DUALOBE plug connectors with metal shells are ultra-small with 2 row wired or horizontal/vertical surface-mount or thru-hole config and 65 pin.
More Less

Product Features

  • Connector & Housing Type : Plug

  • Connector System : Wire-to-Wire, Wire-to-Board

  • Number of Positions : 65

  • Mounting Hardware : Screw, Captive Jackscrew Socket Head

  • Centerline (Pitch) (mm): .64, .63, 1.27

  • Centerline (Pitch) (in): .05, .025

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Contact Features

  • Contact Type  Pin

  • Contact Options  Installed

  • Contact Base Material  Beryllium Copper

  • Contact Mating Area Plating Material  Gold

  • Contact Current Rating (Max) (A) 1

Termination Features

  • Termination Method to PCB  Through Hole - Solder, Surface Mount

  • Termination Method to Wire & Cable  Preterminated Flying Leads

Housing Features

  • Housing Material  Aluminum

  • Centerline (Pitch) (mm) .64, .63, 1.27

  • Centerline (Pitch) (in) .05, .025

Configuration Features

  • PCB Mount Orientation  Vertical

  • Number of Positions  65

Product Type Features

  • Connector & Housing Type  Plug

  • Connector System  Wire-to-Wire, Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board, Wire & Cable

Mechanical Attachment

  • Mounting Hardware  Screw, Captive Jackscrew Socket Head

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Usage Conditions

  • Operating Temperature Range (°C) -200 – 200, -65 – 125

  • Operating Temperature Range (°F) -328 – 392, -85 – 257

Operation/Application

  • Circuit Application  Power & Signal, Power, Signal

Other

  • EU RoHS Compliance  Not Compliant, Compliant

  • EU ELV Compliance  Compliant, Not Compliant

Reference Number

  • TE Internal Number CAT-STM-65PC
