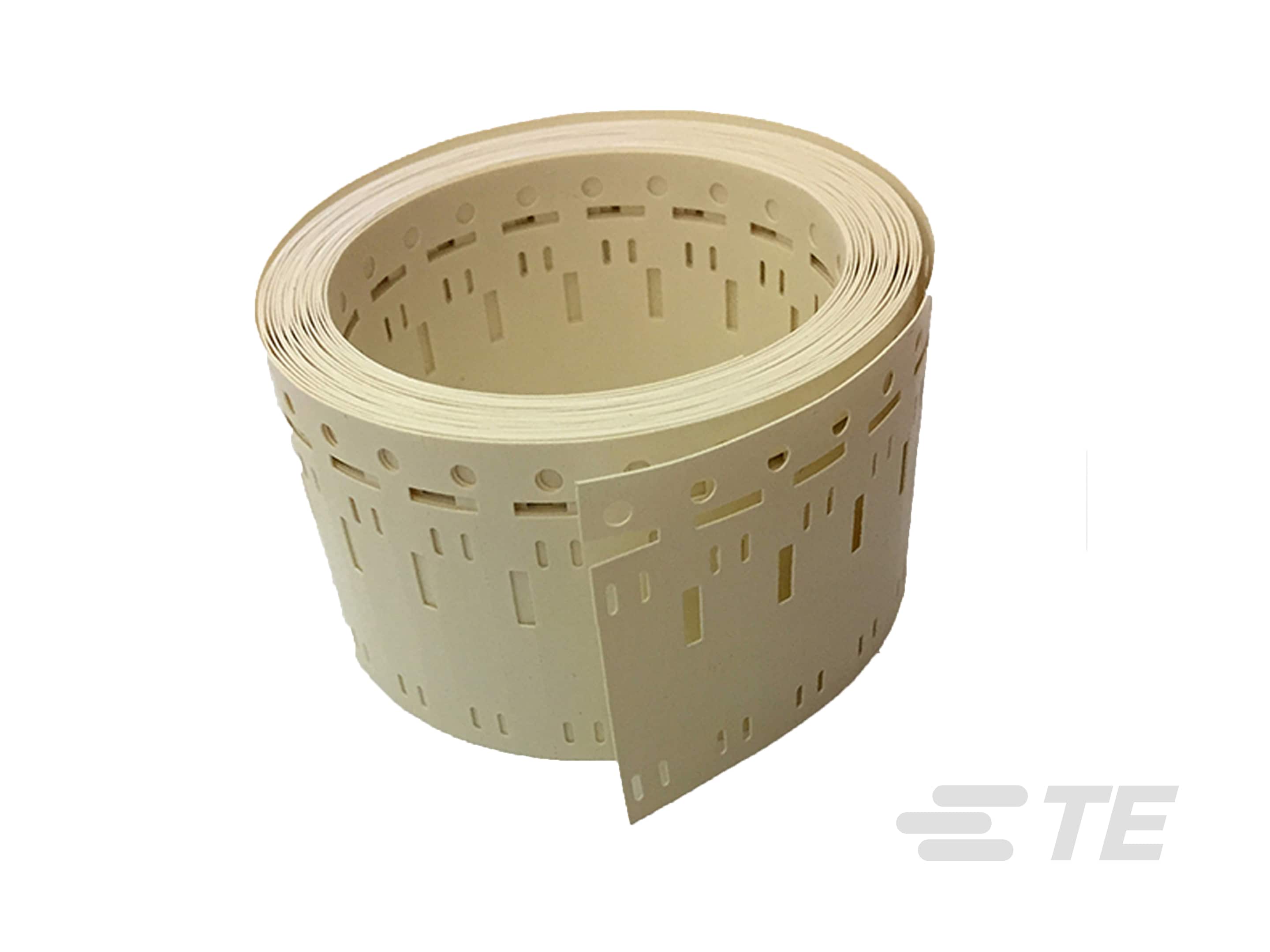

High Temperature Markers, HTCM-SCE-TP

High Temperature Markers, HTCM-SCE-TP-CAT-T3437-H85999
  • HTCM-SCE-TP
Cable markers manufactured using a specially developed radiation cross-linked polyvinylidene polymer designed for aggressive and extreme environments.
More Less

Product Features

  • Printable Tag Grade : Military, High Temperature

  • Operating Temperature Range : -55 – 225 °C [ -67 – 437 °F ]

  • Primary Product Color : Yellow, White

  • EU RoHS Compliance : Compliant

  • EU ELV Compliance : Compliant

Available from

LADD Inc
Overview

HTCM-SCE-TP cable markers are designed to offer flexibility when it comes to wire and cable identification, particularly in aggressive environments. Applied using cable ties, HTCM-SCE-TP markers give the ability to identify large diameter wire and cable, as well as post connector installation Manufactured using a specially developed radiation crosslinked polyvinylidene polymer. Formulated to survive High Temperature, Low out gassing and extreme environments such as Aircraft, Military, Satellites and Semi-conductor applications. The smooth surface is designed for thermal transfer printing. Print performance exceeds the requirements of SAE AS5942 and MIL-STD-202 Method 215.

Features and benefits

  • Thermal transfer printable
  • High Temperature Performance
  • Self-extinguishing
  • Highly flame resistant
  • Low vacuum outgassing for outer space and Semi-conductor applications
  • Easy installation: only standard cable tie-wraps are needed to install markers. No extra steps required
  • Side entry provides access to large size cables and wire bundles as well as retrofit and repair capability
  • Resistant to key military, aviation and Industrial fluids

Operating temperature range

-55oC to 225oC (-67oF to 437oF)

Specifications and approvals

  • Airbus Directive ABD0031
  • NFPA130
  • EN45545-2 R24 HL3
  • ASTM E 595
  • MIL-STD-202 Method 215
  • SAE AS5942

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124
Ribbon: TMS-RJS-RIBBON-4HT
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-114
Product Specification Sheet: RW-2524

Features

Please review product documents or contact us for the latest agency approval information.

Printer/Label Features

  • Printer Technology  Thermal Transfer

Mechanical Attachment

  • Number of Tie-Wrap Holes  6, 4

Dimensions

  • Product Height (mm) 6.4, 12.7

  • Product Height (in) .5, .25

  • Product Length  50.8 mm [ 2 in ]

Packaging Features

  • Packaging Quantity  250

Product Type Features

  • Printable Tag Grade  Military, High Temperature

Usage Conditions

  • Operating Temperature Range  -55 – 225 °C [ -67 – 437 °F ]

Body Features

  • Primary Product Color  Yellow, White

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-T3437-H85999
