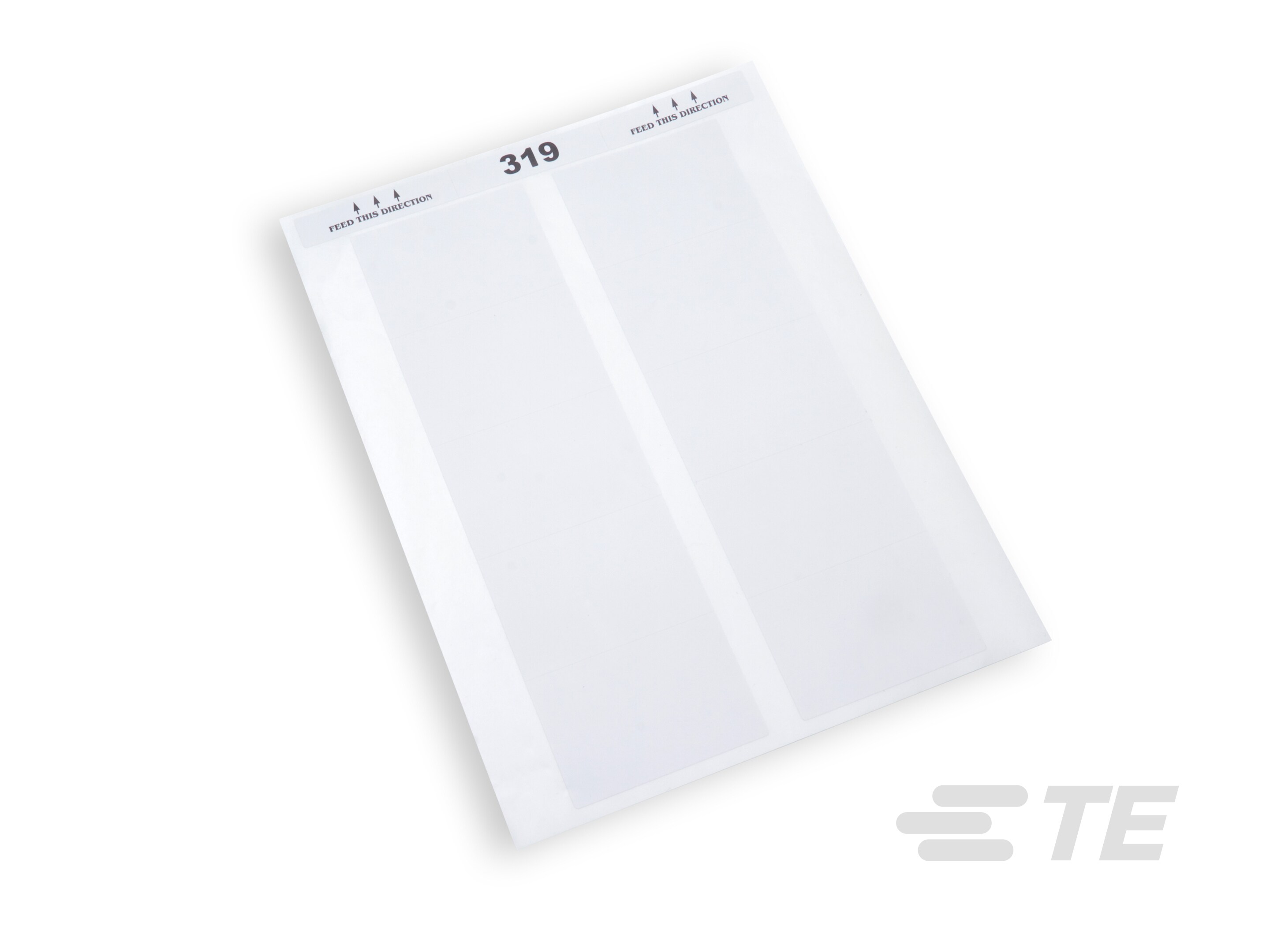

Metalized Polyester Labels - LM Series

Metalized Polyester Labels - LM Series-CAT-T3437-L779
Metalized polyester film with permanent acrylic adhesive and special top-coat designed for use with laser and ink jet printers. Ideal for applications requiring a ‘metal look’.
More Less

Product Features

  • Label Type : Industrial Label

  • Label Style : Die-Cut

  • Label Adhesive Type : Permanent Pressure Sensitive Acrylic Adhesive

  • Compatible With Agency/Standards Products : UL

  • Product Width (mm): 279.4, 25.4, 76.2, 20.3, 19.1, 50.8

  • Product Width (in): .8, 8, 2, 1, 3, .75

Available from

LADD Inc
Overview

LM is a metalized polyester film with permanent acrylic adhesive and a special top-coat designed specifically for use with laser and ink jet printers. It is ideal for rating plate applications and other applications that require a ‘metal look’ such as nameplates and equipment labels to detail product information and serial numbers.

Features and benefits

  • Laser and ink jet printable
  • Exceptional durability and tear strength
  • Suitable for low volume applications
  • Excellent for bar code applications
  • Good resistance to common fluids and water
  • LM is UL recognised
  • LM metalized appearance is ideal for rating plate applications

Operating temperature range

-40oC to 150oC (-40°F to 302°F)

Label thickness

80μm (0.0031”)

Adhesive

Permanent Pressure Sensitive Acrylic Adhesive

Specifications and approvals

  • ASTM-D-3330
  • UL MH14363

Recommended hardware and software

Printer: Any black & white desktop laser or inkjet printer
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-070

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Sheet

Printer/Label Features

  • Number of Labels Across  5, 7, 1, 4, 2, 8

  • Label Style  Die-Cut

  • Label Thickness (Micron) 80

Usage Conditions

  • Operating Temperature Range  -40 – 150 °C [ -40 – 302 °F ]

Product Type Features

  • Label Type  Industrial Label

Other

  • Label Adhesive Type  Permanent Pressure Sensitive Acrylic Adhesive

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Industry Standards

  • Compatible With Agency/Standards Products  UL

Dimensions

  • Product Width (mm) 279.4, 25.4, 76.2, 20.3, 19.1, 50.8

  • Product Width (in) .8, 8, 2, 1, 3, .75

  • Product Height (mm) 279.4, 12.7, 19.1, 9.5, 25.4, 6.4, 50.8

  • Product Height (in) 1, .75, .375, 2, .25, .5, 11

Body Features

  • Primary Product Color  Metalized Silver

  • Primary Product Material  Polyester

Reference Number

  • TE Internal Number CAT-T3437-L779
