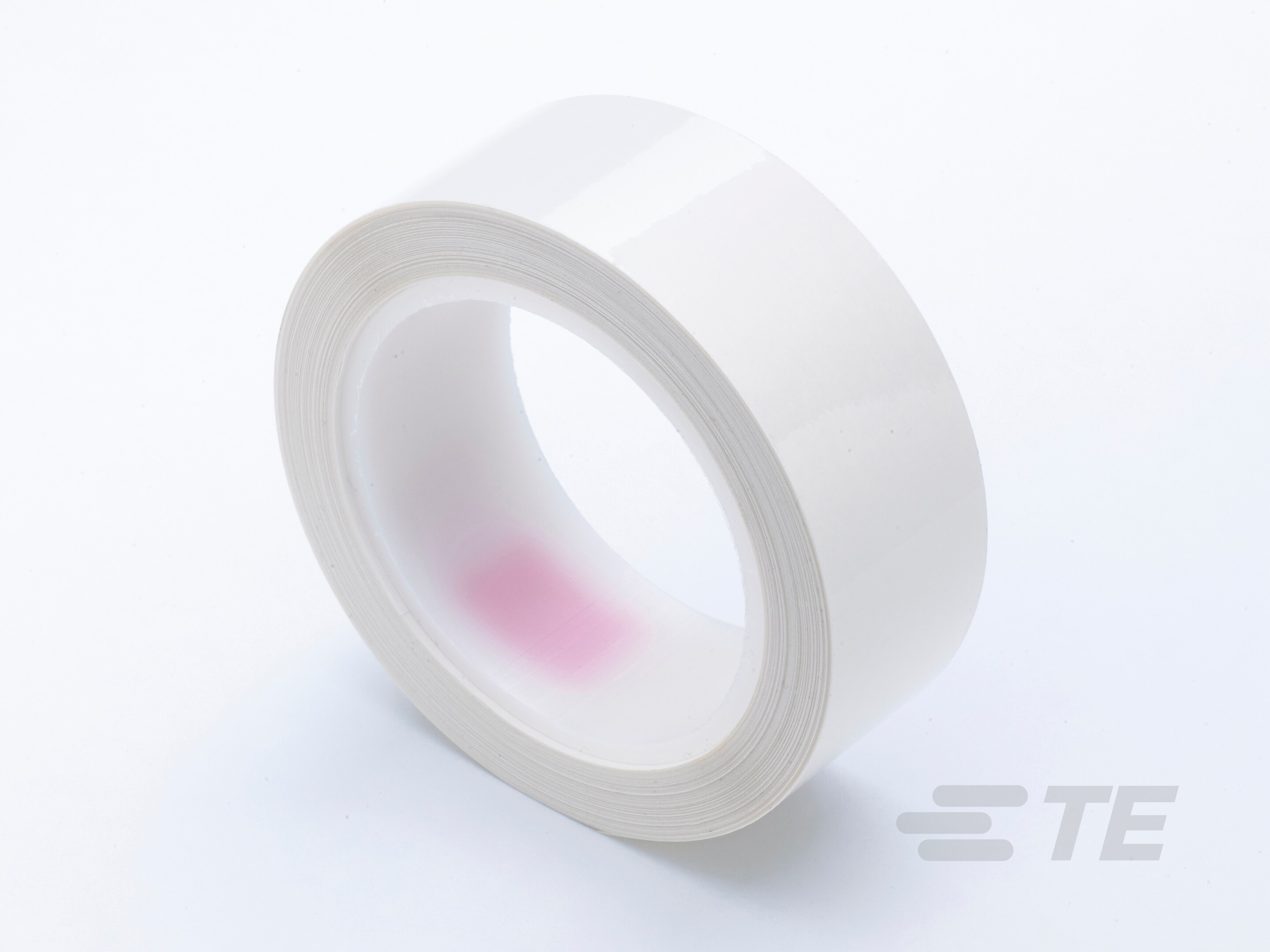

NPVF Color Coding Flagging PVF Labels

NPVF Color Coding Flagging PVF Labels-CAT-T3437-N8792
  • NPVF
Non-printable polyvinylflouride film used as a wire bundle or cable wrap-around marker, particularly for colour coding/bundling/fixing applications in harness production.
More Less

Product Features

  • Label Type : Flagging

  • Label Style : Continuous

  • Label Adhesive Type : Permanent Pressure Sensitive Acrylic Adhesive

  • Product Width (mm): 76.2, 101.6, 50.8, 38.1, 12.7

  • Product Width (in): 1.5, .5, 2, 4, 3

  • Length of Label Roll : 30.48 m [ 100 ft ]

Available from

LADD Inc
Overview

NPVF is a non-printable polyvinylflouride film for use as a wire bundle or cable wrap-around marker, particularly colour coding and bundling/fixing applications in harness production. Ideal in a variety of harsh physical and chemical environments, especially aerospace and military applications. NPVF is supplied in continuous tape format, with a pressure sensitive acrylic adhesive.

Features and benefits

  • Non-printable
  • Excellent conformability to round, irregular and flexible surfaces
  • Withstands exposure to oil, solvents and water
  • Ideal for harsh physical and chemical environments where UV and weather resistance is needed
  • Superior resistance to water, oil, conventional cleaning agents, oil based solvents
  • High degree of resistance to aging

Operating temperature range

-40oC to 107oC (-40°F to 225°F)

Label thickness

85μm (0.0030”)

Adhesive

Permanent Pressure Sensitive Acrylic Adhesive

Specifications and approvals

  • ASTM D1000-76
  • MIL STD 833C
  • DMS 23529
  • BMS 13-47
  • UL94 VTM-1

For more information

Technical Datasheet: TTDS-004

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Roll

  • Packaging Quantity  1

Printer/Label Features

  • Number of Labels Across  1

  • Label Style  Continuous

  • Length of Label Roll  30.48 m [ 100 ft ]

  • Label Thickness (Micron) 85, 47

Usage Conditions

  • Operating Temperature Range  -40 – 107 °C [ -40 – 225 °F ]

Product Type Features

  • Label Type  Flagging

Other

  • Label Adhesive Type  Permanent Pressure Sensitive Acrylic Adhesive

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Dimensions

  • Product Width (mm) 76.2, 101.6, 50.8, 38.1, 12.7

  • Product Width (in) 1.5, .5, 2, 4, 3

Body Features

  • Primary Product Color  Clear, Yellow, White

  • Primary Product Material  Polyvinyl Fluoride (PVF)

Reference Number

  • TE Internal Number CAT-T3437-N8792
