Overview

TMS-SCE™ marker sleeves are designed to meet wire and cable identification needs with high performance requirements. Made from durable, flame retardant, radiation cross linked heat-shrinkable polyolefin, TMS-SCE™ marker sleeves can be used in a wide variety of applications including Aerospace, Military, Motor sports and Oil & Gas. TMS-SCE™ marker sleeves meets the performance requirements of SAE-AMS-DTL-23053/5 class 1. The marks are permanent immediately after printing and remain legible even when exposed to abrasion, aggressive cleaning solvents, and military fuels and oils. TMS-SCE™ meets the mark permanence requirements of SAE AS5942 and MILSTD-202 Method 215.
TMS-SCE™ marker sleeves is supplied with a 3:1 shrink ratio. The lightweight 3:1 products provide extremely fast shrinking and cover a wider range of wire diameters, thus simplifying
inventory.

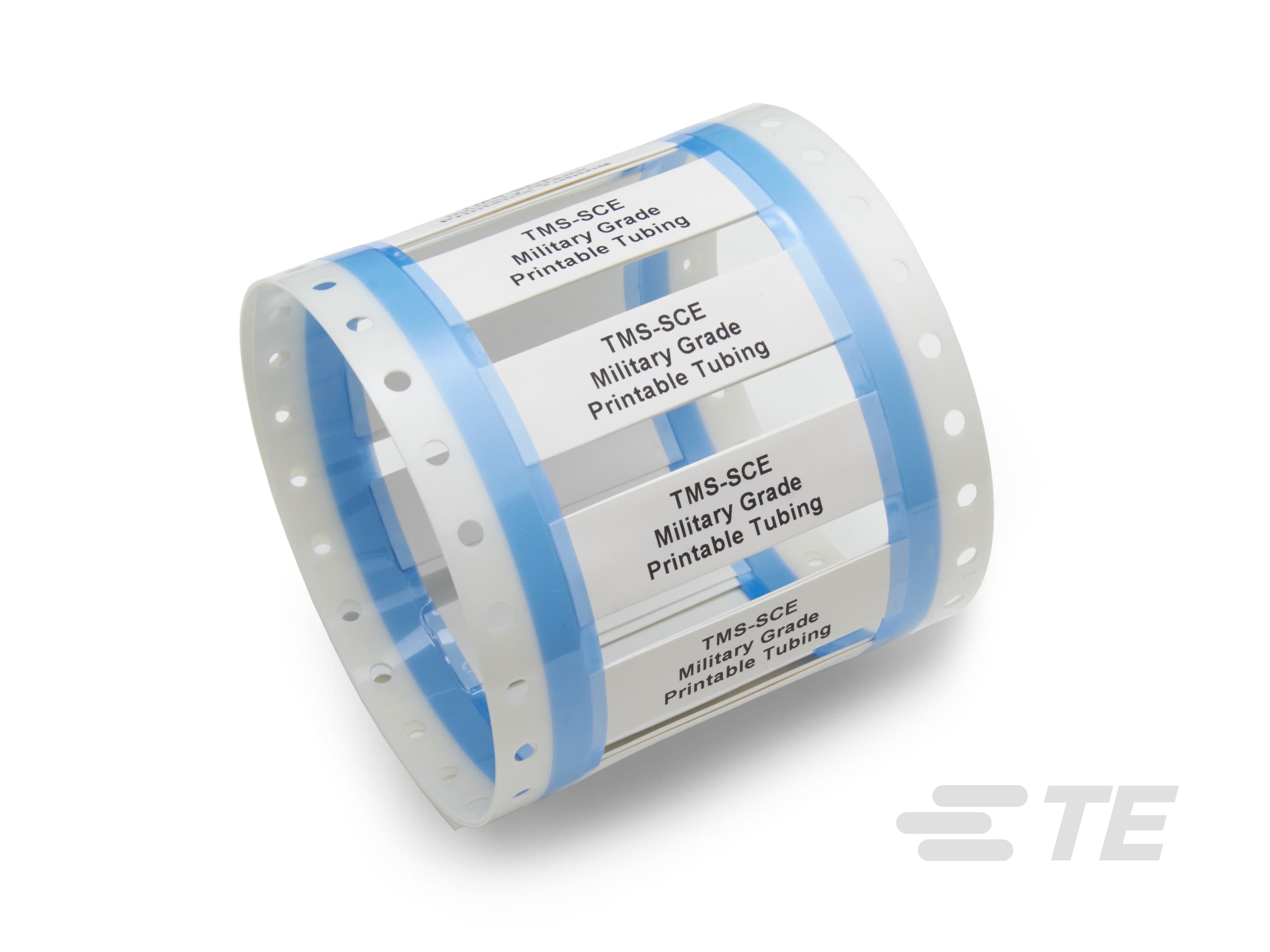

Supplied in a “ladder format”, sleeves are held horizontally between two hole-punched polyester strips and offers ease of printing and kitting.

Features and benefits

  • Thermal transfer printable
  • Permanent identification sleeves
  • Lightweight for aerospace applications
  • Military specification material and print performance
  • 3:1 shrink ratio
  • CSA Certified
  • UL Recognised

Operating temperature ranges

-55oC to 135oC (-67oF to 275oF)

Specification and approvals

  • SAE-AMS-DTL-23053/5
  • SAE AS5942
  • EN45545-2 R24 HL2
  • NFPA130
  • MIL-STD-202 Method 215
  • UL STD 224 - E35586
  • CSA certified (File 31929)

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: TMS-RJS-RIBBON-4RPSCE
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-023
Product Specification Sheet: RW-2511

Features

Please review product documents or contact us for the latest agency approval information.

Printer/Label Features

  • Printer Technology  Thermal Transfer

  • Number of Prescores  3, 2, 1

Packaging Features

  • Packaging Quantity  250, 1000, 5000, 2500

Product Type Features

  • Printable Tubing Type  Ladder

  • Printable Tubing Grade  Military

Body Features

  • Shrink Ratio  3:1, 2:1

  • Primary Product Color  Yellow, White, Red, Orange, Black, Green, Gray, Blue

  • Markers per Sleeve  2, 4, 3, 1

Dimensions

  • Product Length (mm) 25.4, 42.34, 12.7, 25, 50.8, 16.94, 50, 29.64

  • Product Length (in) 1.66, .66, .5, 1.16, 2, 1

  • Expanded Inside Diameter (Min) (mm) 50.8, 57.1, 2.38, 6.35, 19.05, 25.4, 4.76, 57.15, 9.53, 4.75, 12.7, 38.1, 3.18

  • Expanded Inside Diameter (Min) (in) .187, 2.25, .75, 1, 1.5, .125, .25, .5, 2, .375, .093

  • Recovered Inside Diameter (Max) (mm) 2.1, 19, 4.2, 2.11, 3.18, 1.5, 19.05, 25.4, .79, 6.35, 8.4, 8.46, 1.07, 4.22, 1.57, 6.3, 1.17

  • Recovered Inside Diameter (Max) (in) .166, .125, .333, .752, 1, .75, .25, .062, .046, .083, .031, .042

  • Compatible Cable Diameter Range (mm) 4.64 – 10.79, 9.2 – 21.5, 1.7 – 4, .8 – 1.9, 1.75 – 4.06, 2.31 – 5.46, .81 – 1.9, 20.9 – 33, 27.9 – 44.9, 2.3 – 5.4, 4.6 – 10.7, 6.9 – 16.2, 1.1 – 2.6, 22.3 – 50.8, 1.11 – 2.66, 1.2 – 1.9, 3.4 – 8.1

  • Compatible Cable Diameter Range (in) .044 – .105, .05 – .075, .137 – .32, .032 – .075, .069 – .16, .183 – .425, .879 – 2, .88 – 2, .366 – .85, 1.1 – 1.75, .091 – .215, .275 – .64, 1.1 – 1.77, .825 – 1.3

Usage Conditions

  • Operating Temperature Range  -55 – 135 °C [ -67 – 275 °F ]

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-T3437-T548
