This product is not currently available. For more information, including distributor inventory, please contact us.

View products below to see detailed pricing

  • Product Listing

This product is not currently available. For more information, including distributor inventory, please contact us.

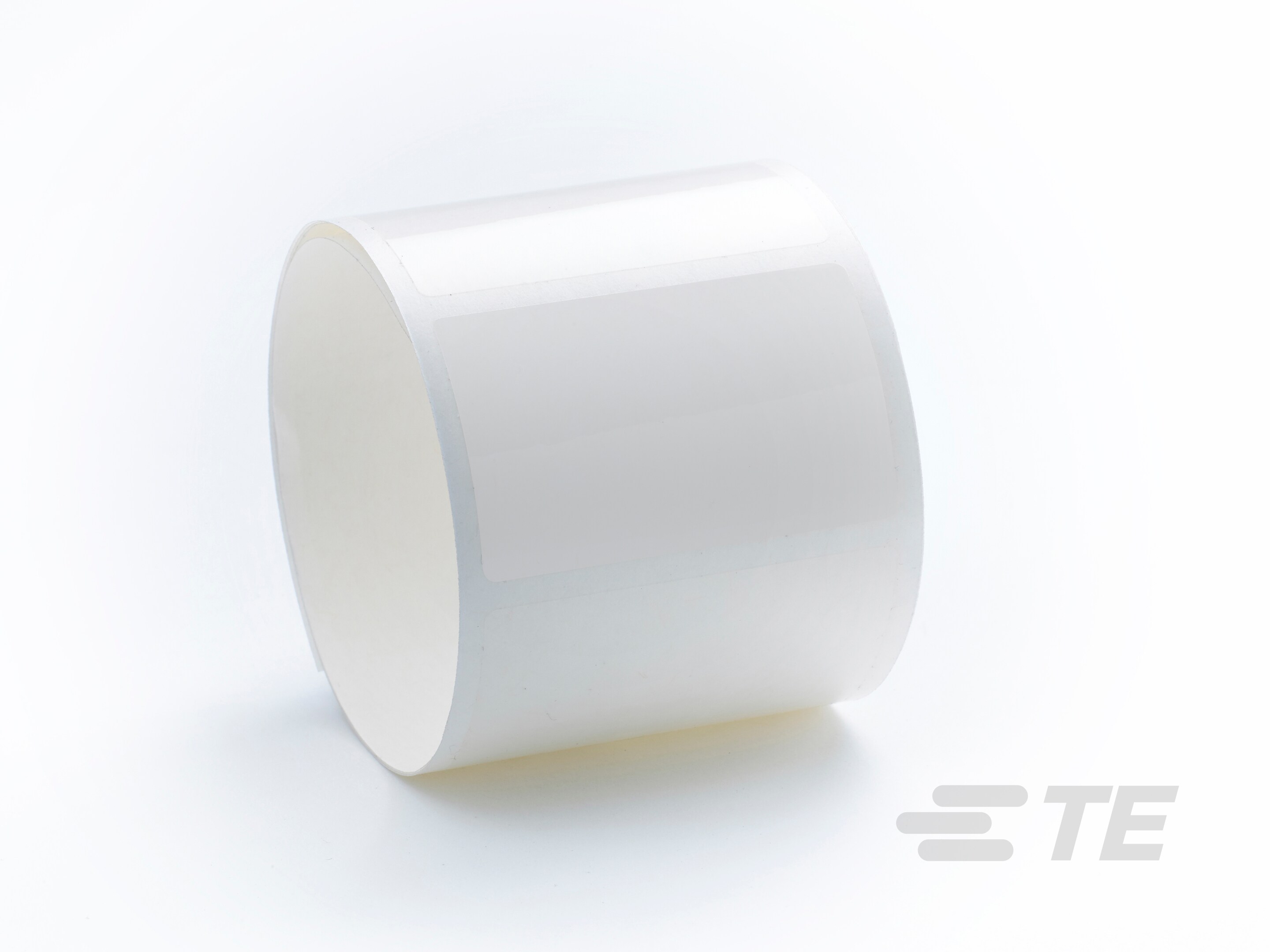

TEDLAR Labels: Clear VF

TEDLAR Labels: Clear VF-CAT-T3437-V649
Non-printable, aerospace grade, clear polyvinylflouride film designed for use as an over-laminate to provide additional protection for labels where resistance to UV light and weathering is necessary.
More Less

Product Features

  • Label Type : Flagging

  • Label Style : Die-Cut

  • Label Adhesive Type : Permanent Pressure Sensitive Acrylic Adhesive

  • Compatible With Agency/Standards Products : UL

  • Product Width (mm): 3, 69.9

  • Product Width (in): 2.75, 76.2

Available from

LADD Inc
Overview

Non-printable, aerospace grade, clear polyvinylflouride film designed for use as an over-laminate to provide additional protection for labels where resistance to UV light and weathering is necessary. VF is a non-printable, aerospace grade, clear polyvinylflouride film designed for use as an overlaminate to provide additional protection for labels where resistance to UV light and weathering is necessary. Adds further protection from chemicals, solvents, abrasion, heat and moisture.

Features and benefits

  • Non-printable
  • Self extinguishing as to UL94 VTM-1
  • Excellent conformability to round, irregular and flexible surfaces
  • Resistant to water, oil, cleaning agents and solvents
  • Ideal for harsh physical and chemical environments where UV and weather resistance is needed
  • Designed to be used as an over-laminate to further protect

Operating temperature range

-40oC to +107oC (-40°F to 225°F)

Label thickness

45μm (0.0020”)

Adhesive

Permanent Pressure Sensitive Acrylic Adhesive

Specifications and approvals

  • ASTM D1000-76
  • MIL STD 833C
  • MIL M 87958
  • UL94 VTM-1
  • BMS 13-47

For more information

Technical Datasheet: TTDS-006

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Roll

  • Packaging Quantity  2500, 5000

Printer/Label Features

  • Number of Labels Across  1

  • Label Style  Die-Cut

  • Label Thickness (Micron) 45

Usage Conditions

  • Operating Temperature Range  -40 – 107 °C [ -40 – 225 °F ]

Product Type Features

  • Label Type  Flagging

Other

  • Label Adhesive Type  Permanent Pressure Sensitive Acrylic Adhesive

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Industry Standards

  • Compatible With Agency/Standards Products  UL

Dimensions

  • Product Width (mm) 3, 69.9

  • Product Width (in) 2.75, 76.2

  • Product Height (mm) 25.4, 50.8

  • Product Height (in) 1, 2

Body Features

  • Primary Product Color  Clear

  • Primary Product Material  Polyvinyl Fluoride (PVF)

Reference Number

  • TE Internal Number CAT-T3437-V649

Related Materials

Datasheets & Catalog Pages
