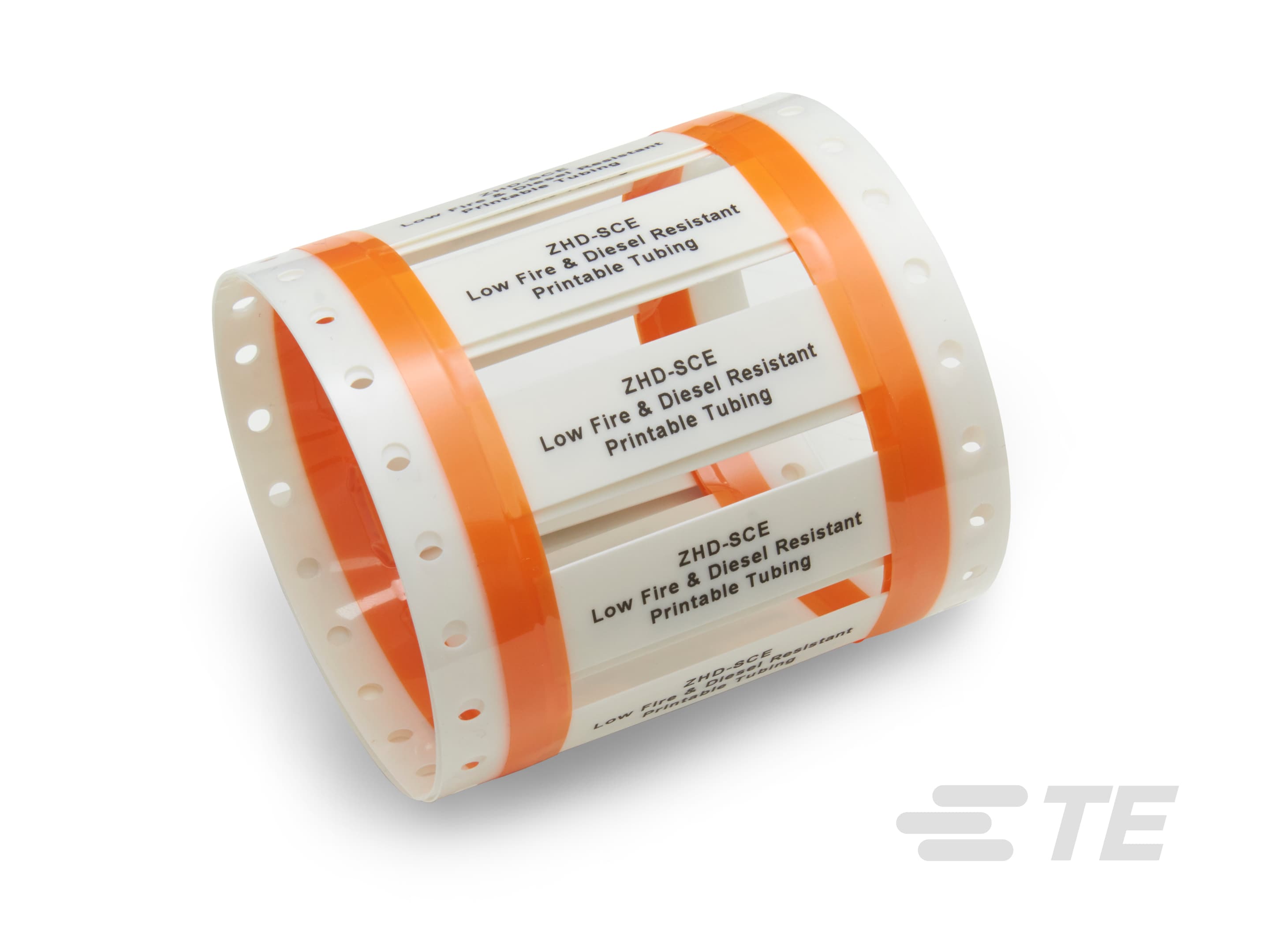

Fluid Resistant Sleeves, ZHD-SCE

ZHD-SCE

Zero halogen and diesel resistant marker sleeves for use in a wide variety of applications.

More Less

Datasheet |
Digital Datasheet|

Product Features

Printable Tubing Type : Ladder
Printable Tubing Grade : Fluid Resistant & Low Fire Hazard, Low Fire Hazard
Shrink Ratio : 2:1
Primary Product Color : Yellow, White
Number of Prescores : 1

Available from

Product	TE Part #	Printable Tubing Grade	Primary Product Color	Number of Prescores	Markers per Sleeve	Product Length	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range	Operating Temperature Range
ZHD-SCE-38.1-50-4 Buy on te.com	EC9846-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	38.1 mm	19 mm	20.9 – 33. mm	-55 – 135 °C
ZHD-SCE-1K-4.8-50-4 Buy on te.com	EC9852-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	4.8 mm	2.3 mm	2.5 – 4. mm	-55 – 135 °C
ZHD-SCE-1K-19.0-50-S1-9	EC9905-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	19 mm	9.5 mm	10.1 – 16.2 mm	-55 – 135 °C
ZHD-SCE-6.4-50-S1-4 Buy on te.com	EC9837-000	Low Fire Hazard	Yellow	1	2	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 125 °C
ZHD-SCE-1K-2.4-50-S1-4	EC9849-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm	-55 – 135 °C
ZHD-SCE-1K-3.2-50-4	EC9850-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	3.2 mm	1.5 mm	1.7 – 2.6 mm	-55 – 135 °C
ZHD-SCE-1K-9.5-50-S1-4	EC9857-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 135 °C
ZHD-SCE-19.0-50-4 Buy on te.com	EC9842-000	Low Fire Hazard	Yellow	-	1	50 mm	19 mm	9.53 mm	10.16 – 16.25 mm	-55 – 125 °C
ZHD-SCE-4.8-50-4 Buy on te.com	EC9834-000	Low Fire Hazard	Yellow	-	1	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 125 °C
ZHD-SCE-1K-19.0-50-S1-4 Buy on te.com	EC9861-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	19 mm	9.5 mm	10.1 – 16.2 mm	-55 – 135 °C
ZHD-SCE-1K-4.8-50-S1-4	EC9853-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	4.8 mm	2.3 mm	2.5 – 4. mm	-55 – 135 °C
ZHD-SCE-1K-19.0-50-9 Buy on te.com	EC9904-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	19 mm	9.5 mm	10.1 – 16.2 mm	-55 – 135 °C
ZHD-SCE-4.8-50-9	EC9878-000	Low Fire Hazard	White	-	1	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 125 °C
ZHD-SCE-9.5-50-S1-4	EC9839-000	Low Fire Hazard	Yellow	1	2	50 mm	9.5 mm	4.75 mm	5.59 – 8.12 mm	-55 – 125 °C
ZHD-SCE-38.1-50-S1-4 Buy on te.com	EC9847-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	38.1 mm	19 mm	20.9 – 33. mm	-55 – 135 °C
ZHD-SCE-1K-6.4-50-S1-4	EC9855-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	6.4 mm	3.1 mm	3.8 – 5.4 mm	-55 – 135 °C
ZHD-SCE-12.7-50-4	EC9840-000	Low Fire Hazard	Yellow	-	1	50 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 125 °C
ZHD-SCE-1K-6.4-50-9 Buy on te.com	EC9898-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	6.4 mm	3.1 mm	3.8 – 5.4 mm	-55 – 135 °C
ZHD-SCE-1K-12.7-50-9	EC9902-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	12.7 mm	6.3 mm	6.9 – 10.7 mm	-55 – 135 °C
ZHD-SCE-1K-12.7-50-S1-9	EC9903-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	12.7 mm	6.3 mm	6.9 – 10.7 mm	-55 – 135 °C
ZHD-SCE-1K-9.5-50-9 Buy on te.com	EC9900-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 135 °C
ZHD-SCE-1K-12.7-50-S1-4 Buy on te.com	EC9859-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	12.7 mm	6.3 mm	6.9 – 10.7 mm	-55 – 135 °C
ZHD-SCE-1K-19.0-50-4	EC9860-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	19 mm	9.5 mm	10.1 – 16.2 mm	-55 – 135 °C
ZHD-SCE-19.0-50-S1-4	EC9843-000	Low Fire Hazard	Yellow	1	2	50 mm	19 mm	9.53 mm	10.16 – 16.25 mm	-55 – 125 °C
ZHD-SCE-25.4-50-S1-4 Buy on te.com	EC9845-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	25.4 mm	12.7 mm	14.2 – 21.5 mm	-55 – 135 °C
ZHD-SCE-1K-6.4-50-4 Buy on te.com	EC9854-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	6.4 mm	3.1 mm	3.8 – 5.4 mm	-55 – 135 °C
ZHD-SCE-12.7-50-S1-4 Buy on te.com	EC9841-000	Low Fire Hazard	Yellow	1	2	50 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 125 °C
ZHD-SCE-1K-2.4-50-4	EC9848-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm	-55 – 135 °C
ZHD-SCE-1K-4.8-50-S1-9	EC9897-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	4.8 mm	2.3 mm	2.5 – 4. mm	-55 – 135 °C
ZHD-SCE-12.7-50-9 Buy on te.com	EC9884-000	Low Fire Hazard	White	-	1	50 mm	12.7 mm	6.35 mm	6.99 – 10.79 mm	-55 – 125 °C
ZHD-SCE-19.0-50-9	EC9886-000	Low Fire Hazard	White	-	1	50 mm	19 mm	9.53 mm	10.16 – 16.25 mm	-55 – 125 °C
ZHD-SCE-9.5-50-4	EC9838-000	Low Fire Hazard	Yellow	-	1	50 mm	9.5 mm	4.75 mm	5.59 – 8.12 mm	-55 – 125 °C
ZHD-SCE-3.2-50-S1-9 Buy on te.com	EC9877-000	Low Fire Hazard	White	1	2	50 mm	3.2 mm	1.58 mm	1.75 – 2.66 mm	-55 – 125 °C
ZHD-SCE-1K-4.8-50-9	EC9896-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	4.8 mm	2.3 mm	2.5 – 4. mm	-55 – 135 °C
ZHD-SCE-38.1-50-9 Buy on te.com	EC9890-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	38.1 mm	19 mm	20.9 – 33. mm	-55 – 135 °C
ZHD-SCE-1K-2.4-50-9	EC9892-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm	-55 – 135 °C
ZHD-SCE-1K-3.2-50-S1-9	EC9895-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	3.2 mm	1.5 mm	1.7 – 2.6 mm	-55 – 135 °C
ZHD-SCE-1K-3.2-50-9 Buy on te.com	EC9894-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	3.2 mm	1.5 mm	1.7 – 2.6 mm	-55 – 135 °C
ZHD-SCE-2.4-50-4	EC9830-000	Low Fire Hazard	Yellow	-	1	50 mm	2.4 mm	1.19 mm	1.27 – 1.9 mm	-55 – 125 °C
ZHD-SCE-25.4-50-4 Buy on te.com	EC9844-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	25.4 mm	12.7 mm	14.2 – 21.5 mm	-55 – 135 °C
ZHD-SCE-6.4-50-4 Buy on te.com	EC9836-000	Low Fire Hazard	Yellow	-	1	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 125 °C
ZHD-SCE-1K-25.4-50-S1-4	EC9863-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 125 °C
ZHD-SCE-4.8-50-S1-9 Buy on te.com	EC9879-000	Low Fire Hazard	White	1	2	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 125 °C
ZHD-SCE-1K-12.7-50-4 Buy on te.com	EC9858-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	12.7 mm	6.3 mm	6.9 – 10.7 mm	-55 – 135 °C
ZHD-SCE-1K-2.4-50-S1-9	EC9893-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm	-55 – 135 °C
ZHD-SCE-3.2-50-4	EC9832-000	Low Fire Hazard	Yellow	-	1	50 mm	3.2 mm	1.58 mm	1.75 – 2.66 mm	-55 – 125 °C
ZHD-SCE-3.2-50-9	EC9876-000	Low Fire Hazard	White	-	1	50 mm	3.2 mm	1.58 mm	1.75 – 2.66 mm	-55 – 125 °C
ZHD-SCE-9.5-50-9 Buy on te.com	EC9882-000	Low Fire Hazard	White	-	1	50 mm	9.5 mm	4.75 mm	5.59 – 8.12 mm	-55 – 125 °C
ZHD-SCE-1K-6.4-50-S1-9 Buy on te.com	EC9899-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	6.4 mm	3.1 mm	3.8 – 5.4 mm	-55 – 135 °C
ZHD-SCE-2.4-50-9 Buy on te.com	EC9874-000	Low Fire Hazard	White	-	1	50 mm	2.4 mm	1.19 mm	1.27 – 1.9 mm	-55 – 125 °C
ZHD-SCE-1K-9.5-50-S1-9 Buy on te.com	EC9901-000	Fluid Resistant & Low Fire Hazard	White	1	2	25 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 135 °C
ZHD-SCE-1K-25.4-50-S1-9	EC9907-000	Fluid Resistant & Low Fire Hazard	White	1	2	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 125 °C
ZHD-SCE-3.2-50-S1-4	EC9833-000	Low Fire Hazard	Yellow	1	2	50 mm	3.2 mm	1.58 mm	1.75 – 2.66 mm	-55 – 125 °C
ZHD-SCE-1K-9.5-50-4 Buy on te.com	EC9856-000	Fluid Resistant & Low Fire Hazard	Yellow	-	1	50 mm	9.5 mm	4.7 mm	5.5 – 8.1 mm	-55 – 135 °C
ZHD-SCE-1K-25.4-50-9	EC9906-000	Low Fire Hazard	White	-	1	50 mm	25.4 mm	12.7 mm	14.29 – 21.59 mm	-55 – 125 °C
ZHD-SCE-6.4-50-9	EC9880-000	Low Fire Hazard	White	-	1	50 mm	6.4 mm	3.18 mm	3.81 – 5.46 mm	-55 – 125 °C
ZHD-SCE-25.4-50-9 Buy on te.com	EC9888-000	Fluid Resistant & Low Fire Hazard	White	-	1	50 mm	25.4 mm	12.7 mm	14.2 – 21.5 mm	-55 – 135 °C
ZHD-SCE-1K-3.2-50-S1-4 Buy on te.com	EC9851-000	Fluid Resistant & Low Fire Hazard	Yellow	1	2	25 mm	3.2 mm	1.5 mm	1.7 – 2.6 mm	-55 – 135 °C
ZHD-SCE-4.8-50-S1-4	EC9835-000	Low Fire Hazard	Yellow	1	2	50 mm	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 125 °C

Overview

ZHD-SCE marker sleeves are designed specifically for applications requiring the highest performance from an identification sleeve, without compromising on safety or capability. ZHD is designed to bridge the gap between D-SCE marker sleeves and HX-SCE marker sleeves, by being both zero halogen and diesel resistant. ZHD-SCE marker sleeves can be used in a wide variety of applications including Rail, Marine, Motorsports and Industrial. Supplied in a “ladder format”, sleeves are held horizontally between two polyester strips and offers ease of printing and kitting.

Features and benefits

Thermal transfer printable
Zero Halogen
Diesel resistant
Resistant to key rail and industrial fluids including diesel (defined by RW-2536)
Low Toxic Fumes
Non-flame propagating
Shrink ratio 2:1

Operating temperature range

-55^oC to 135^oC (-67^oF to 275^oF)

Specifications and approvals

EN45545-2 R22 HL2
EN50343
NFPA130
BS 6853 Cat II

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: 1966 - RIBBON
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-263
Product Specification Sheet: RW-2536

Features

Please review product documents or contact us for the latest agency approval information.

Printer/Label Features

Printer Technology Thermal Transfer
Number of Prescores 1

Packaging Features

Packaging Quantity 250, 1000

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade Fluid Resistant & Low Fire Hazard, Low Fire Hazard

Body Features

Shrink Ratio 2:1
Primary Product Color Yellow, White
Markers per Sleeve 2, 1

Dimensions

Product Length (mm) 50, 25
Product Length (in) 1.97, 2, 1
Expanded Inside Diameter (Min) (mm) 4.8, 3.2, 6.4, 19, 9.5, 12.7, 2.4, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .094, .25, .126, .73, .5, .75, 1, 1.5, .189, .125, .375
Recovered Inside Diameter (Max) (mm) 3.1, 1.1, 1.58, 6.35, 9.53, 19, 2.3, 3.18, 12.7, 4.7, 1.5, 2.36, 1.19, 6.3, 9.5, 4.75
Recovered Inside Diameter (Max) (in) .125, .375, .09, .187, .25, .06, .75, .5, .047
Compatible Cable Diameter Range (mm) 3.81 – 5.46, 1.7 – 2.6, 14.29 – 21.59, 10.16 – 16.25, 14.2 – 21.5, 2.5 – 4., 1.27 – 1.9, 3.8 – 5.4, 20.9 – 33., 5.5 – 8.1, 5.59 – 8.12, 2.54 – 4.06, 10.1 – 16.2, 6.9 – 10.7, 6.99 – 10.79, 1.75 – 2.66, 1.2 – 1.9
Compatible Cable Diameter Range (in) .22 – .32, .1 – .16, .4 – .64, .275 – .425, .05 – .075, .15 – .215, .069 – .105, .563 – .85, .825 – 1.3, .26 – .449

Usage Conditions

Operating Temperature Range (°C) -55 – 125, -55 – 135
Operating Temperature Range (°F) -67 – 275, -67 – 257

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-T3437-Z614

Related Materials

Datasheets & Catalog Pages

TTDS for ZHD-SCE, LOW FIRE HAZARD, DIESEL RESISTANT pdf English

Fluid Resistant Sleeves, ZHD-SCE

Product Features

Printable Tubing Type : Ladder

Printable Tubing Grade : Fluid Resistant & Low Fire Hazard, Low Fire Hazard

Shrink Ratio : 2:1

Primary Product Color : Yellow, White

Number of Prescores : 1

Features and benefits

Operating temperature range

Specifications and approvals

Recommended hardware and software

For more information

Printer/Label Features

Printer Technology Thermal Transfer

Number of Prescores 1

Packaging Features

Packaging Quantity 250, 1000

Product Type Features

Printable Tubing Type Ladder

Printable Tubing Grade Fluid Resistant & Low Fire Hazard, Low Fire Hazard

Body Features

Shrink Ratio 2:1

Primary Product Color Yellow, White

Markers per Sleeve 2, 1

Dimensions

Product Length (mm) 50, 25

Product Length (in) 1.97, 2, 1

Expanded Inside Diameter (Min) (mm) 4.8, 3.2, 6.4, 19, 9.5, 12.7, 2.4, 25.4, 38.1

Expanded Inside Diameter (Min) (in) .094, .25, .126, .73, .5, .75, 1, 1.5, .189, .125, .375

Recovered Inside Diameter (Max) (mm) 3.1, 1.1, 1.58, 6.35, 9.53, 19, 2.3, 3.18, 12.7, 4.7, 1.5, 2.36, 1.19, 6.3, 9.5, 4.75

Recovered Inside Diameter (Max) (in) .125, .375, .09, .187, .25, .06, .75, .5, .047

Compatible Cable Diameter Range (mm) 3.81 – 5.46, 1.7 – 2.6, 14.29 – 21.59, 10.16 – 16.25, 14.2 – 21.5, 2.5 – 4., 1.27 – 1.9, 3.8 – 5.4, 20.9 – 33., 5.5 – 8.1, 5.59 – 8.12, 2.54 – 4.06, 10.1 – 16.2, 6.9 – 10.7, 6.99 – 10.79, 1.75 – 2.66, 1.2 – 1.9

Compatible Cable Diameter Range (in) .22 – .32, .1 – .16, .4 – .64, .275 – .425, .05 – .075, .15 – .215, .069 – .105, .563 – .85, .825 – 1.3, .26 – .449

Usage Conditions

Operating Temperature Range (°C) -55 – 125, -55 – 135

Operating Temperature Range (°F) -67 – 275, -67 – 257

Other

EU RoHS Compliance Compliant

EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-T3437-Z614
