STATOR THERMOCOUPLE

STATOR THERMOCOUPLE-CAT-TCS0001
  • MEAS
|
  • MEAS 400 Series
The 400 series stator thermocouple sensor is a rectangular, flat, laminated sensor commonly called a “Stator Stick” because they are inserted between the coils in the stator of a motor.
More Less

Product Features

  • Operating Temperature Range : -50 – 180 °C [ -58 – 356 °F ]

  • Thermocouple Type : T, J, E, K

  • Sensor Package : Fiber Glass Laminate Sensor

  • Junction Grounding : Ungrounded, Grounded

  • Error Limits/T-Accuracy : Standard Limits / +- 1 °C, Special Error Limits

Available from

LADD Inc
Overview

These sensors are used in electric motors and generators for continuous sensing of the temperature and provide for consistent thermal monitoring without false alarms. The stator thermocouples are built to meet the specifications of ANSI C50.10- 1990, general requirements for synchronous motors. We can build to your specifications.

Benefits

  • Rear Exit, Epoxy Glass Laminated
  • Thermocouple Type, Single and Dual: Types J, K, T, and E
  • Custom Body Thickness: .060” to .375”; Standard: .060”, .078”, .093”, .125”
  • Custom Body Widths: .250” to 2.50”; Standard: .260”, .305”, .344”, .455”, .500”, .625”
  • Leadwire/Cable Options
orange bar

Applications

  • Electric Motors
  • Generators
orange bar

Resources

orange bar
  1. Stator Temperature Sensor (English)

TE Connectivity's (TE) stator temperature sensors provide high stability for various applications including large motors.

stator temperature sensors
The stator thermocouple sensor is a rectangular, flat, laminated sensor commonly called a “Stator Stick” because they are inserted between the coils in the stator of a motor.

Other Sensors for Motors and Generators



300 Series Epoxy Glass Laminated Stator RTD

300 Series

Epoxy Glass Laminated Stator RTD

The 300 series stator RTD sensor is a rectangular, flat, laminated sensor commonly called “Stator Sticks” because they are inserted between the coils in the stator of a motor.
301 Series Side Exit Epoxy Glass Lam Stator RTD

301 Series

Side Exit Epoxy Glass Lam Stator RTD

The 301 series side exit epoxy glass stator RTD temperature sensor is a rectangular, flat, laminated sensor commonly called a “Stator Stick” because they are inserted between the coils in the stator of a motor.
302F Series Paddle Stator RTD Sensor

302F Series

Paddle Stator RTD Sensor

The 302F series paddle stator RTD sensor, also called Air or Gas RTDs, measure incoming or outgoing air temperatures in motors and generators.
310 Series Tip Sensitive Bearing RTD Probe

310 Series

Tip Sensitive Bearing RTD Probe

The 310 Series Tip Sensitive Bearing RTD Probe is a tubular sensor in which the sensing element is encased in a Copper alloy tip.
311 Series Tip Sensitive Spring Loaded Bearing RTD

311 Series

Spring Loaded Threaded Bearing RTD

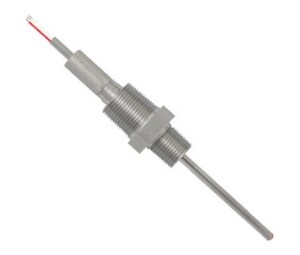

The 311 Series Tip Sensitive Bearing RTD Probe–Spring Loaded Fitting consists of a bearing probe, holder and optional connection head.
312 Series Bayonet Style Bearing RTD

312 Series

Bayonet Style Bearing RTD

The 312 Series Tip Sensitive Bearing RTD–Bayonet consists of a bearing probe and  bayonet holder.
410 Series Tip Sensitive Bearing Thermocouple

410 Series

Tip Sensitive Bearing Thermocouple

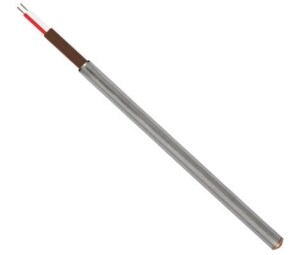

The 410 series tip sensitive bearing thermocouple sensor is tubular and encased in a copper alloy tip.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Thermocouple Type  T, J, E, K

  • Sensor Package  Fiber Glass Laminate Sensor

Usage Conditions

  • Operating Temperature Range  -50 – 180 °C [ -58 – 356 °F ]

  • Error Limits/T-Accuracy  Standard Limits / +- 1 °C, Special Error Limits

Other

  • Junction Grounding  Ungrounded, Grounded

Reference Number

  • TE Internal Number CAT-TCS0001
