MODEL 201, THERMOCOUPLE PROBE
- MEAS

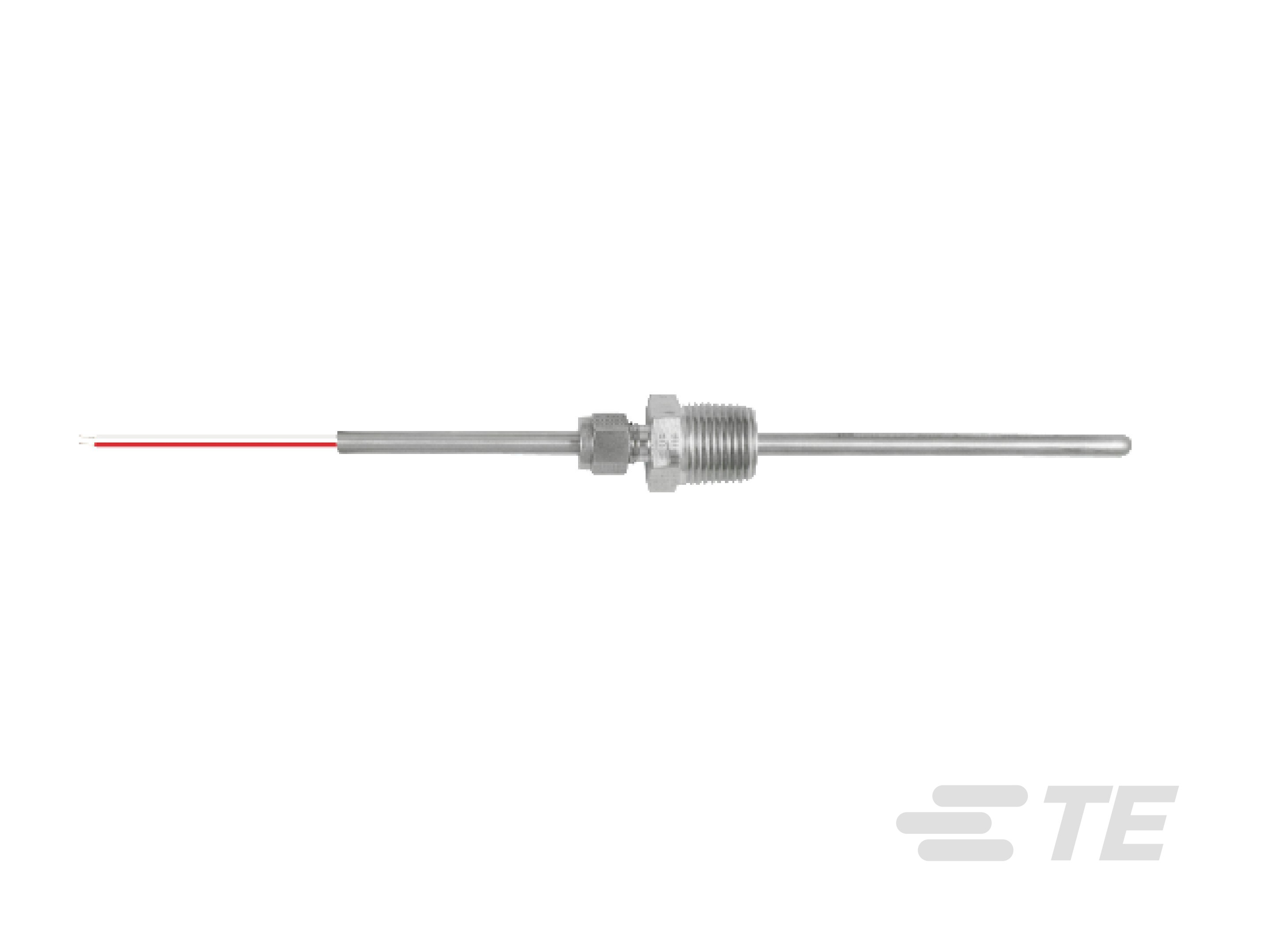

The Model 201 thermocouple probe with compression fitting is constructed with a stainless steel case and the sensing junction is embedded into the tip of the sheath.
Product Features
-
Thermocouple Type : T, J, E, K
-
Sensor Package : Stainless Steel Probe with 1/4NPT compression fitting, Stainless Steel Probe with 1/8NPT compression fitting, Stainless Steel Probe with 3/4NPT compression fitting, Stainless Steel Probe with 3/8NPT compression fitting, Stainless Steel Probe with 1/2NPT compression fitting
Overview
With the junction located in the tip of the case this is the area that needs to be in contact with the process to obtain correct temperature measurement. Fittings associated with the probe designs are related to the mounting technique required by your application. These sensors can be utilized in many different industries and applications. Probe sensors are ideal for immersion in processes.
Benefits
- Sheath Styles: Stainless Steel
- Joint Types, Single and Dual: J, K, T, E, Grounded or Ungrounded
- Sheath Diameters: 0.125”, 0.188”, 0.250”
- Leadwire/Cable Options
Applications
- Process
Resources
Features
Please review product documents or contact us for the latest agency approval information.
Usage Conditions
-
Error Limits/T-Accuracy Standard Limits / +- 1 °C, Special Error Limits
Other
-
Junction Grounding Grounded, Ungrounded
Product Type Features
-
Thermocouple Type T, J, E, K
-
Sensor Package Stainless Steel Probe with 1/4NPT compression fitting, Stainless Steel Probe with 1/8NPT compression fitting, Stainless Steel Probe with 3/4NPT compression fitting, Stainless Steel Probe with 3/8NPT compression fitting, Stainless Steel Probe with 1/2NPT compression fitting
Reference Number
-
TE Internal Number CAT-TCS0003
