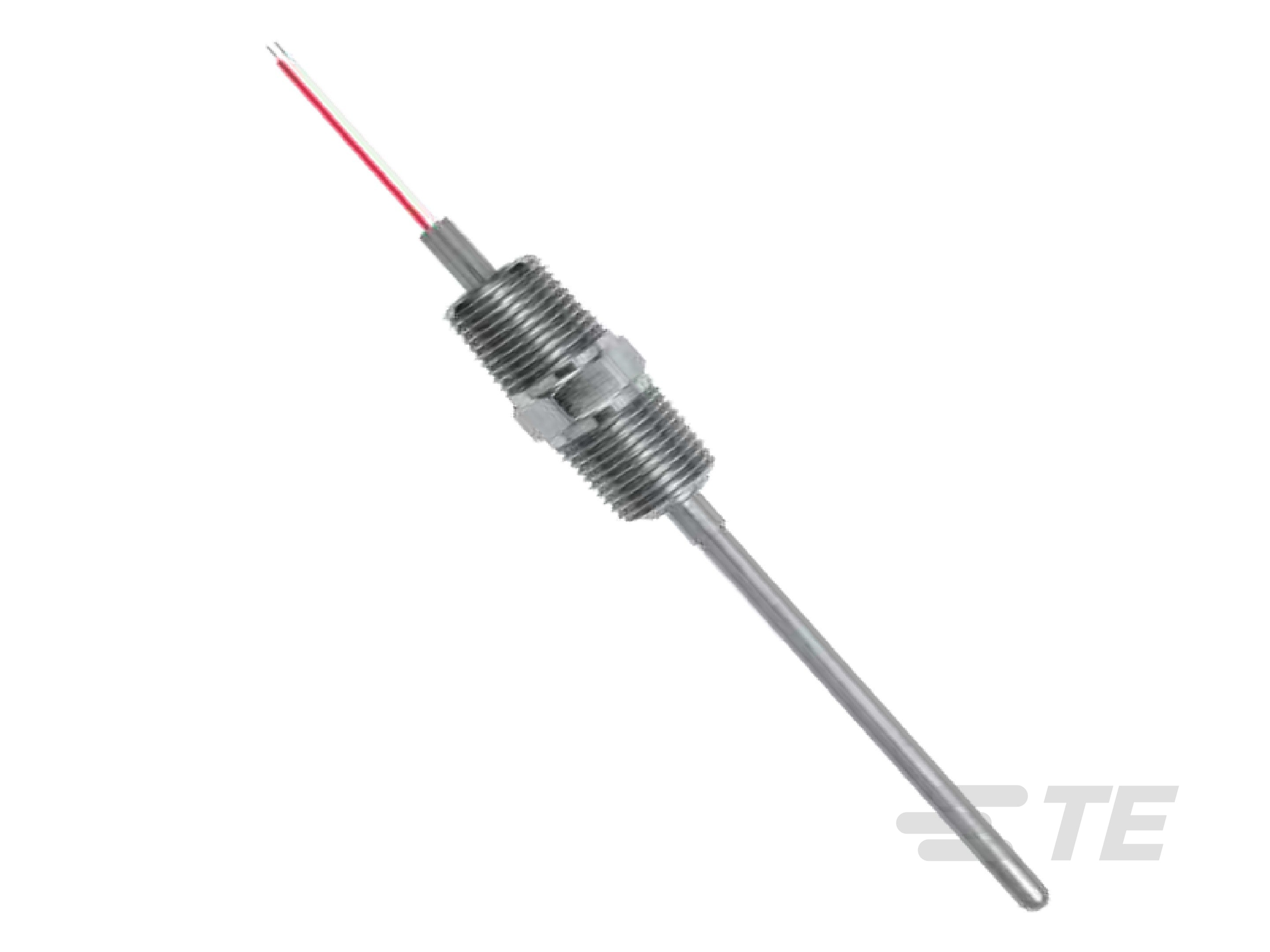

SPRING LOADED TWIN THREAD THERMOCOUPLE
- MEAS
The 221M and 221H series spring loaded thermocouple sensor twin-threaded fitting is constructed with a stainless steel sheath and utilizes a spring loaded fitting to provide positive contact between the tip and the process. It features a threaded process and electrical connection.
Product Features
-
Wire/Cladding Type : Solid TFE
-
Thermocouple Type : T, J, E, K
Overview
Positive contact can decrease the time response of the sensor as well as provide a more consistent temperature reading. Our crimped twin threaded hex fitting thermocouple sensors are generally designed for use with thermowells, however they can be used in any application that requires the spring action. The dual threaded fitting also allows the use of a connection head.
Benefits
- Ideal for Thermowell Applications
- 1/2” x 1/2” NPT Threaded Fitting
- Variety of Configurations
- Stainless Steel Case
- Custom Designs Available with: Connection Heads and/ or Transmitters
- Junction Types, Single and Dual: J, K, T, E, (Grounded or Ungrounded)
- Sheath Diameters: 0.250” standard
- Leadwire/Cable Options
Resources
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Wire/Cladding Type Solid TFE
-
Thermocouple Type T, J, E, K
Reference Number
-
TE Internal Number CAT-TCS0027
