Overview
EXPLOSION-PROOF SPRING LOAD THERMOCOUPLE
- MEAS

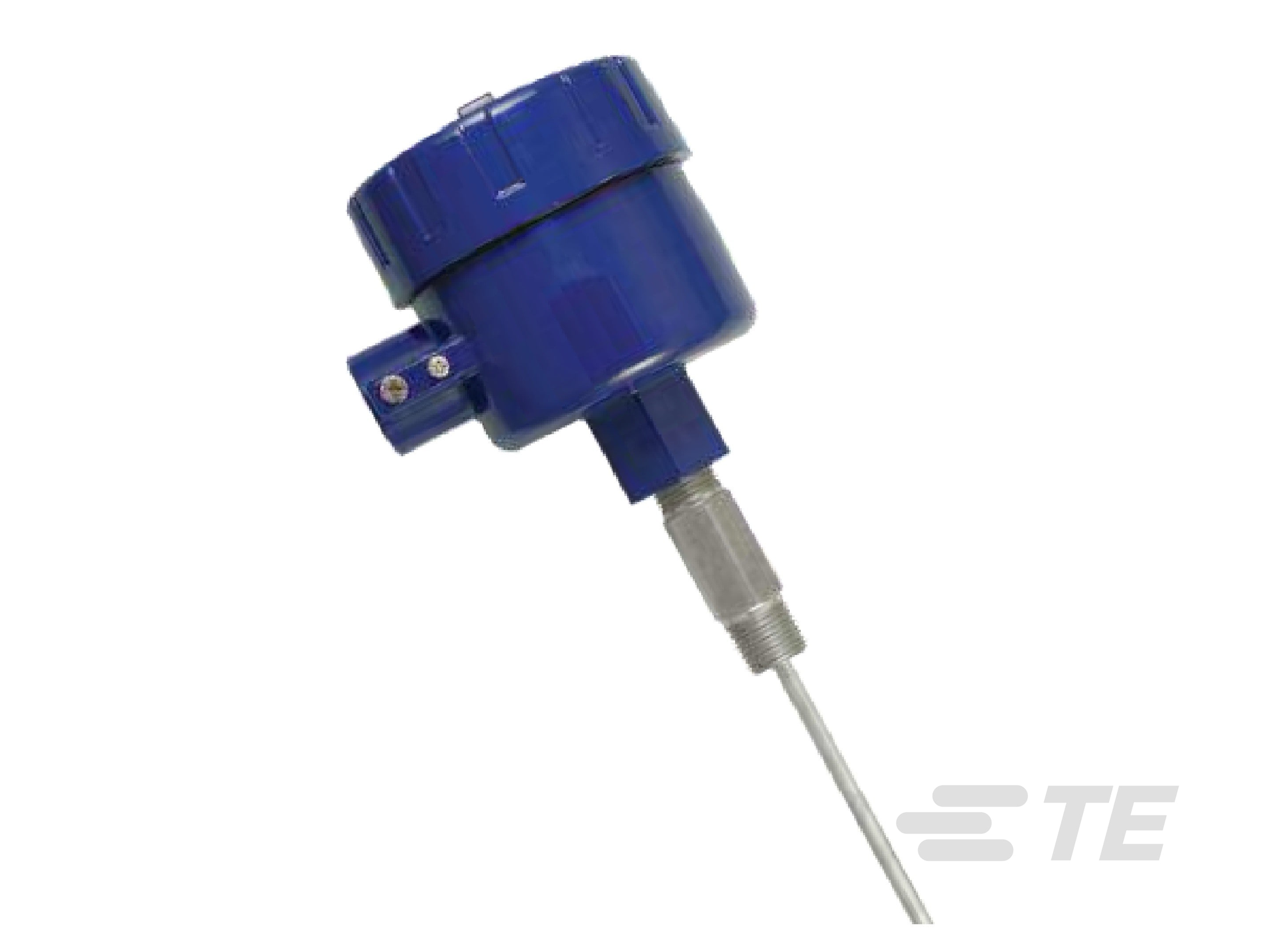

The 1023 Series explosion-proof quick release spring loaded thermocouple sensor assembly with transmitter is designed for use in various hazardous locations such as electric motors and generators. The tip sensitive, spring-loaded temperature sensor assembly is approved for use in explosion-proof and flameproof applications.
Product Features
-
Thermocouple Type : T, E, J, K
Overview
Explosion-proof and Flameproof Ratings
National and Canadian Electrical Code:
Class I, Division 1, Groups B, C, and D
Class II/III, Division 1, Groups E, F, and G T5 (Ta=80°C), T6 (Ta=65°C)
National Electrical Code (Article 505):
Class I, Zone 1, AEx d IIC T5 (Ta=80°C), T6 (Ta=65°C)
Canadian Electrical Code (IEC 60079):
Class I, Zone 1, Ex d IIC T5 (Ta=80°C), T6 (Ta=65°C)
ATEX:
II 2 G Ex d IIC T5 (Ta= -50°C to 80°C), T6 (Ta= -50°C to 65°C) Gb
(see datasheet for full specification)
Benefits
- Variety of Configurations
- Single and Dual Junctions
- Stainless Steel Case with Alloy Tip
- Sheath Styles: Stainless Steel with Copper or Aluminum Tip
- Junction Types, Single and Dual: J, K, T, E
- Grounded or Ungrounded
- Sheath Diameters: .188”, .215”, .236” (6.0 mm), .250”
- Transmitter
- U.S. or European threads available
Applications
- Motors
- Generators
Resources
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Thermocouple Type T, E, J, K
Reference Number
-
TE Internal Number CAT-TCS0032
Related Materials
Datasheets & Catalog Pages
- TESS-ANDO-408-0000049 English
