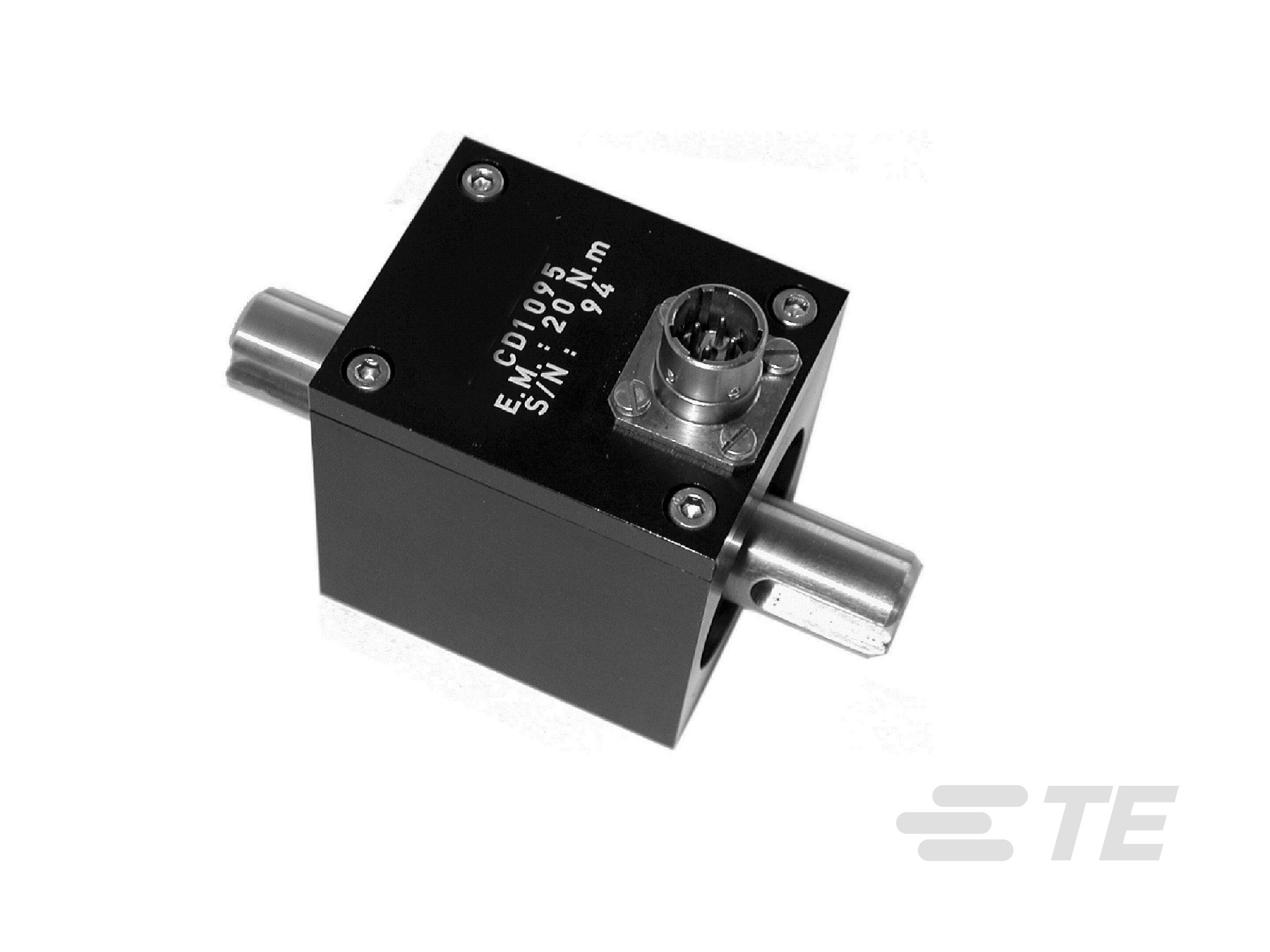

DYNAMIC ROTARY TORQUE SENSOR KEYED SHAFT

MEAS

The CD1095 has been designed to measure in-line torque on rotating shafts.

More Less

Datasheet |
Digital Datasheet|

Product Features

Torque Sensor Type : Dynamic Torque Sensors
Force Direction : Clockwise, Counterclockwise
Full Scale Range (Nm): 20, 50, 100, 150, 200, 750
Full Scale Range (lbf): 16, 40, 80, 120, 160, 600
Rotation Speed (RPM): 1250 – 3000

Available from

Product	TE Part #	Full Scale Range	Full Scale Range	Supply Voltage	Output Signal Type
CD1095-150Nm	ECD109-150-C00001	150 Nm	120 lbf	1 – 10 VDC	±2 mV/V
CD1095-200NM	ECD109-200-C20001	200 Nm	160 lbf	1 – 10 VDC	±2 mV/V
CD1095-50Nm	ECD109-50-C20002	50 Nm	40 lbf	1 – 10 VDC	±2 mV/V
CD1095-20NM	ECD109-20-C20003	20 Nm	16 lbf	1 – 10 VDC	±2 mV/V
CD1095-100NM	ECD109-100-C20002	100 Nm	80 lbf	1 – 10 VDC	±2 mV/V
CD1095-A1-20NM	ECD109-20-C20002	20 Nm	16 lbf	10 – 30 VDC	±2 V
CD1095-A2-200Nm	20016644-00	200 Nm	160 lbf	-15 – 15 VDC	±5 V
CD1095-A2-100Nm	20016643-00	100 Nm	80 lbf	-15 – 15 VDC	±5 V
CD1095-A2-750Nm	20012447-00	750 Nm	600 lbf	-15 – 15 VDC	±5 V
CD1095-A1-100Nm	ECD109-100-C20003	100 Nm	80 lbf	10 – 30 VDC	±2 V

Overview

Its sensing element is based on thin layer strain gauges in a Wheatstone bridge configuration providing excellent temperature stability. Optionally the torque sensor can receive an on-board amplifier for high-level output. Intermediate ranges are available at no extra cost. Consult Measurement-Specialties’ Engineering Department if the standard options do not meet your needs or should your application require a more comprehensive measurement system.

BENEFITS

Keyed Shaft couplings
Range from ±5 to ±2,500 Nm (±4 to 2,000 lbf.ft)
Stainless Steel
Cable Gland or Connector Output
Built In Amplifier per Request

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Torque Sensor Type Dynamic Torque Sensors

Electrical Characteristics

Full Scale Range (Nm) 20, 50, 100, 150, 200, 750
Full Scale Range (lbf) 16, 40, 80, 120, 160, 600
Supply Voltage (VDC) 1 – 10, 10 – 30, -15 – 15

Usage Conditions

Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Accuracy (% of FS) ±.25

Operation/Application

Rotation Speed (RPM) 1250 – 3000
Output Signal Type ±2 mV/V, ±2 V, ±5 V

Other

Force Direction Clockwise, Counterclockwise

Reference Number

TE Internal Number CAT-TOR0002
